LTC5597
ELECTRICAL CHARACTERISTICS The
l

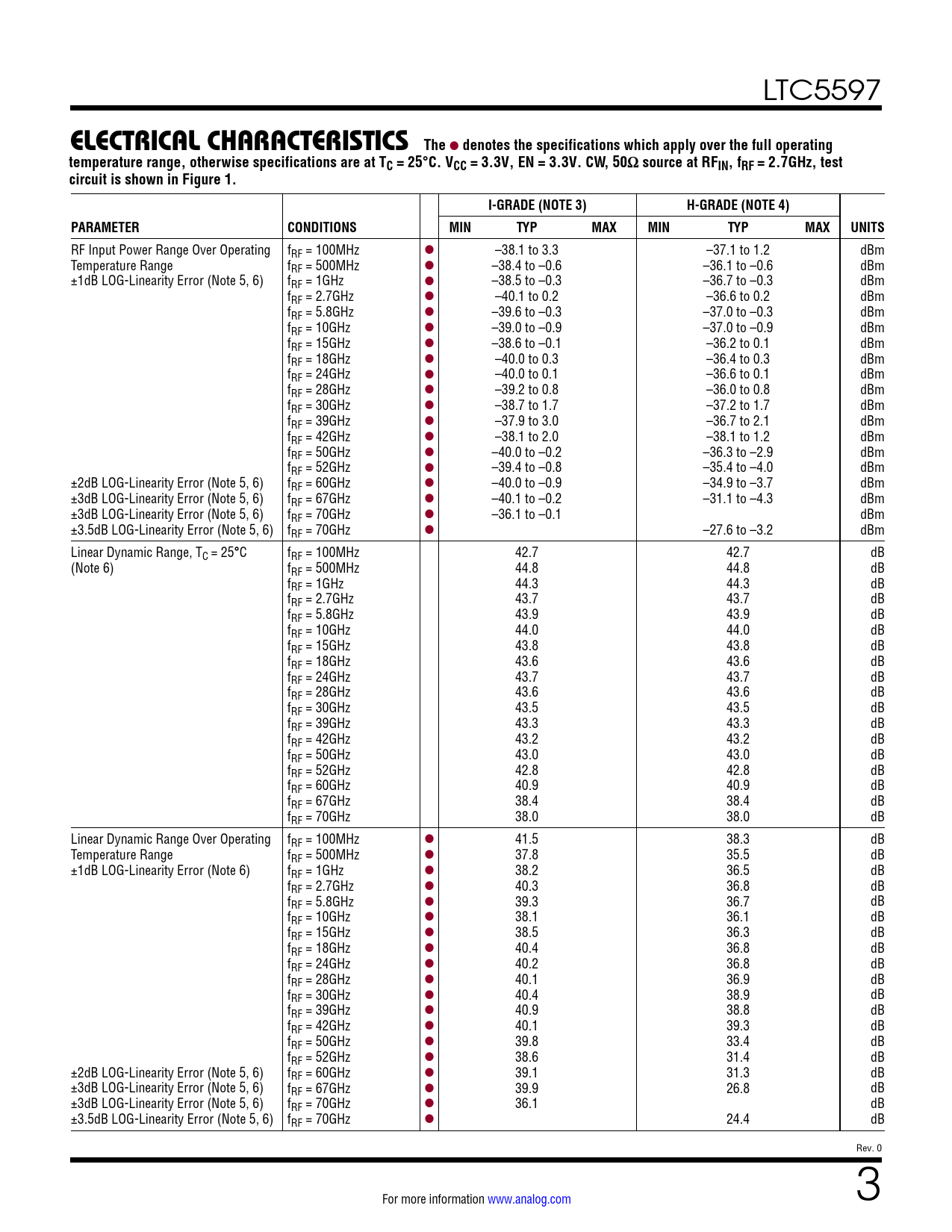

denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TC = 25°C. VCC = 3.3V, EN = 3.3V. CW, 50Ω source at RFIN, fRF = 2.7GHz, test circuit is shown in Figure 1. I-GRADE (NOTE 3) H-GRADE (NOTE 4) PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
RF Input Power Range Over Operating fRF = 100MHz l –38.1 to 3.3 –37.1 to 1.2 dBm Temperature Range fRF = 500MHz l –38.4 to –0.6 –36.1 to –0.6 dBm ±1dB LOG-Linearity Error (Note 5, 6) fRF = 1GHz l –38.5 to –0.3 –36.7 to –0.3 dBm fRF = 2.7GHz l –40.1 to 0.2 –36.6 to 0.2 dBm fRF = 5.8GHz l –39.6 to –0.3 –37.0 to –0.3 dBm fRF = 10GHz l –39.0 to –0.9 –37.0 to –0.9 dBm fRF = 15GHz l –38.6 to –0.1 –36.2 to 0.1 dBm fRF = 18GHz l –40.0 to 0.3 –36.4 to 0.3 dBm fRF = 24GHz l –40.0 to 0.1 –36.6 to 0.1 dBm fRF = 28GHz l –39.2 to 0.8 –36.0 to 0.8 dBm fRF = 30GHz l –38.7 to 1.7 –37.2 to 1.7 dBm fRF = 39GHz l –37.9 to 3.0 –36.7 to 2.1 dBm fRF = 42GHz l –38.1 to 2.0 –38.1 to 1.2 dBm fRF = 50GHz l –40.0 to –0.2 –36.3 to –2.9 dBm fRF = 52GHz l –39.4 to –0.8 –35.4 to –4.0 dBm ±2dB LOG-Linearity Error (Note 5, 6) fRF = 60GHz l –40.0 to –0.9 –34.9 to –3.7 dBm ±3dB LOG-Linearity Error (Note 5, 6) fRF = 67GHz l –40.1 to –0.2 –31.1 to –4.3 dBm ±3dB LOG-Linearity Error (Note 5, 6) fRF = 70GHz l –36.1 to –0.1 dBm ±3.5dB LOG-Linearity Error (Note 5, 6) fRF = 70GHz l –27.6 to –3.2 dBm Linear Dynamic Range, TC = 25
°
C fRF = 100MHz 42.7 42.7 dB (Note 6) fRF = 500MHz 44.8 44.8 dB fRF = 1GHz 44.3 44.3 dB fRF = 2.7GHz 43.7 43.7 dB fRF = 5.8GHz 43.9 43.9 dB fRF = 10GHz 44.0 44.0 dB fRF = 15GHz 43.8 43.8 dB fRF = 18GHz 43.6 43.6 dB fRF = 24GHz 43.7 43.7 dB fRF = 28GHz 43.6 43.6 dB fRF = 30GHz 43.5 43.5 dB fRF = 39GHz 43.3 43.3 dB fRF = 42GHz 43.2 43.2 dB fRF = 50GHz 43.0 43.0 dB fRF = 52GHz 42.8 42.8 dB fRF = 60GHz 40.9 40.9 dB fRF = 67GHz 38.4 38.4 dB fRF = 70GHz 38.0 38.0 dB Linear Dynamic Range Over Operating fRF = 100MHz l 41.5 38.3 dB Temperature Range fRF = 500MHz l 37.8 35.5 dB ±1dB LOG-Linearity Error (Note 6) fRF = 1GHz l 38.2 36.5 dB fRF = 2.7GHz l 40.3 36.8 dB fRF = 5.8GHz l 39.3 36.7 dB fRF = 10GHz l 38.1 36.1 dB fRF = 15GHz l 38.5 36.3 dB fRF = 18GHz l 40.4 36.8 dB fRF = 24GHz l 40.2 36.8 dB fRF = 28GHz l 40.1 36.9 dB fRF = 30GHz l 40.4 38.9 dB fRF = 39GHz l 40.9 38.8 dB fRF = 42GHz l 40.1 39.3 dB fRF = 50GHz l 39.8 33.4 dB fRF = 52GHz l 38.6 31.4 dB ±2dB LOG-Linearity Error (Note 5, 6) fRF = 60GHz l 39.1 31.3 dB ±3dB LOG-Linearity Error (Note 5, 6) fRF = 67GHz l 39.9 26.8 dB ±3dB LOG-Linearity Error (Note 5, 6) fRF = 70GHz l 36.1 dB ±3.5dB LOG-Linearity Error (Note 5, 6) fRF = 70GHz l 24.4 dB Rev. 0 For more information www.analog.com 3 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Electrical Characteristics Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Test Circuit Applications Information Package Description Typical Application Related Parts
