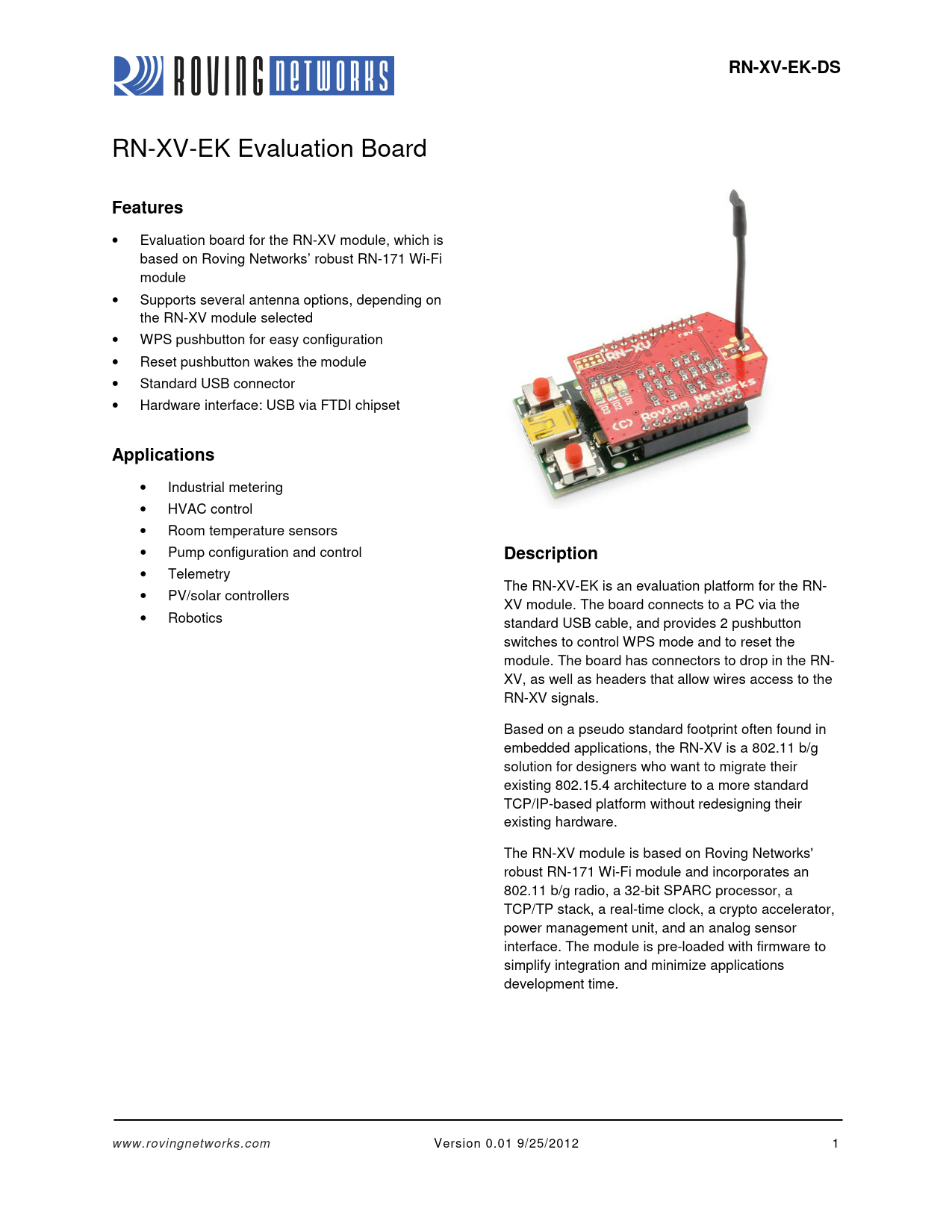

RN-XV-EK-DS
RN-XV-EK Evaluation Board
Features
• Evaluation board for the RN-XV module, which is based on Roving Networks’ robust RN-171 Wi-Fi module • Supports several antenna options, depending on the RN-XV module selected • WPS pushbutton for easy configuration • Reset pushbutton wakes the module • Standard USB connector • Hardware interface: USB via FTDI chipset
Applications
• Industrial metering • HVAC control • Room temperature sensors • Pump configuration and control
Description
• Telemetry The RN-XV-EK is an evaluation platform for the RN- • PV/solar control ers XV module. The board connects to a PC via the • Robotics standard USB cable, and provides 2 pushbutton switches to control WPS mode and to reset the module. The board has connectors to drop in the RN- XV, as wel as headers that al ow wires access to the RN-XV signals. Based on a pseudo standard footprint often found in embedded applications, the RN-XV is a 802.11 b/g solution for designers who want to migrate their existing 802.15.4 architecture to a more standard TCP/IP-based platform without redesigning their existing hardware. The RN-XV module is based on Roving Networks' robust RN-171 Wi-Fi module and incorporates an 802.11 b/g radio, a 32-bit SPARC processor, a TCP/TP stack, a real-time clock, a crypto accelerator, power management unit, and an analog sensor interface. The module is pre-loaded with firmware to simplify integration and minimize applications development time. www.rovingnetworks.com Version 0.01 9/25/2012 1
RN-XV-EK Evaluation Board
