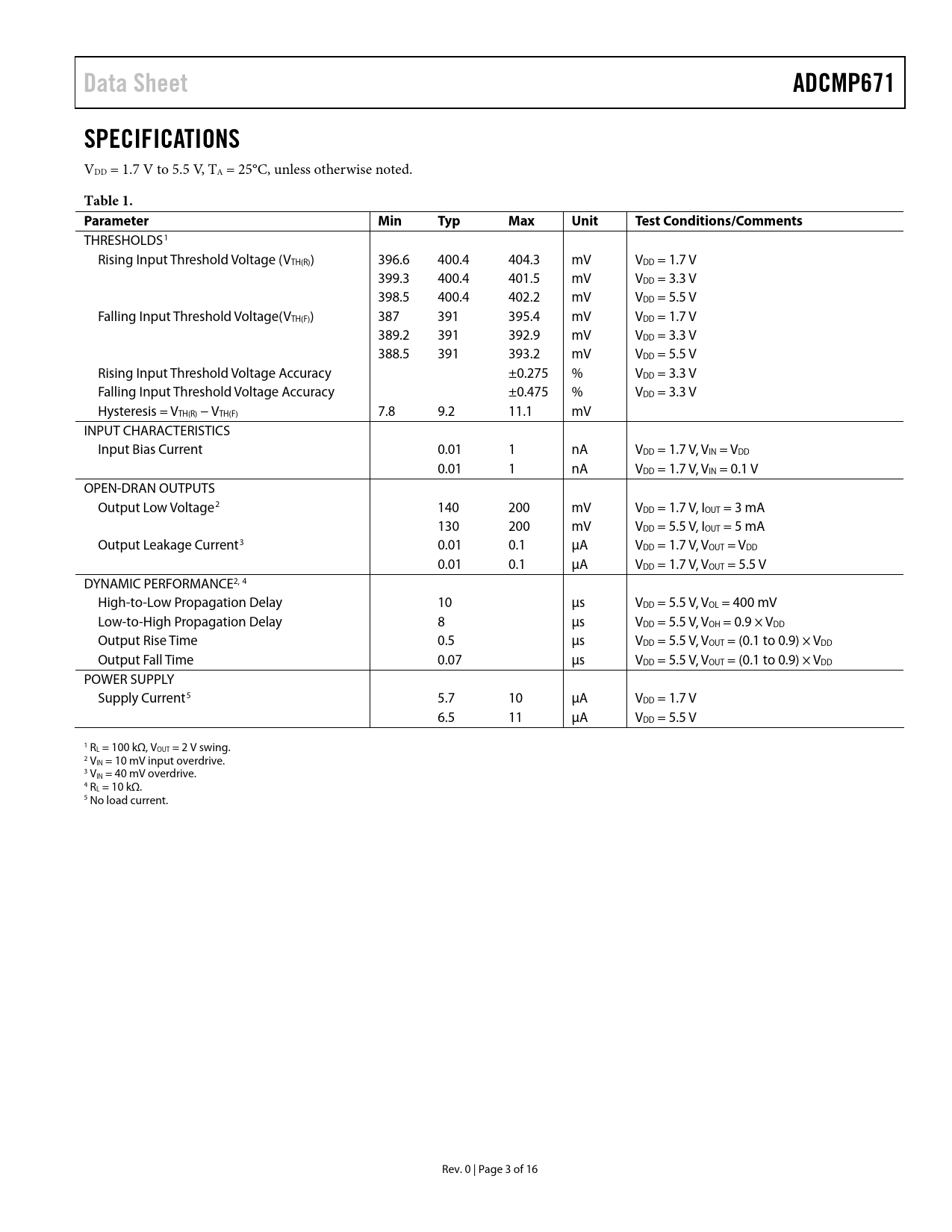

Data Sheet ADCMP671 SPECIFICATIONS
VDD = 1.7 V to 5.5 V, TA = 25°C, unless otherwise noted.
Table 1. Parameter Min Typ Max Unit Test Conditions/Comments
THRESHOLDS1 Rising Input Threshold Voltage (VTH(R)) 396.6 400.4 404.3 mV VDD = 1.7 V 399.3 400.4 401.5 mV VDD = 3.3 V 398.5 400.4 402.2 mV VDD = 5.5 V Falling Input Threshold Voltage(VTH(F)) 387 391 395.4 mV VDD = 1.7 V 389.2 391 392.9 mV VDD = 3.3 V 388.5 391 393.2 mV VDD = 5.5 V Rising Input Threshold Voltage Accuracy ±0.275 % VDD = 3.3 V Falling Input Threshold Voltage Accuracy ±0.475 % VDD = 3.3 V Hysteresis = VTH(R) − VTH(F) 7.8 9.2 11.1 mV INPUT CHARACTERISTICS Input Bias Current 0.01 1 nA VDD = 1.7 V, VIN = VDD 0.01 1 nA VDD = 1.7 V, VIN = 0.1 V OPEN-DRAN OUTPUTS Output Low Voltage2 140 200 mV VDD = 1.7 V, IOUT = 3 mA 130 200 mV VDD = 5.5 V, IOUT = 5 mA Output Leakage Current3 0.01 0.1 μA VDD = 1.7 V, VOUT = VDD 0.01 0.1 μA VDD = 1.7 V, VOUT = 5.5 V DYNAMIC PERFORMANCE2, 4 High-to-Low Propagation Delay 10 μs VDD = 5.5 V, VOL = 400 mV Low-to-High Propagation Delay 8 μs VDD = 5.5 V, VOH = 0.9 × VDD Output Rise Time 0.5 μs VDD = 5.5 V, VOUT = (0.1 to 0.9) × VDD Output Fall Time 0.07 μs VDD = 5.5 V, VOUT = (0.1 to 0.9) × VDD POWER SUPPLY Supply Current5 5.7 10 μA VDD = 1.7 V 6.5 11 μA VDD = 5.5 V 1 RL = 100 kΩ, VOUT = 2 V swing. 2 VIN = 10 mV input overdrive. 3 VIN = 40 mV overdrive. 4 RL = 10 kΩ. 5 No load current. Rev. 0 | Page 3 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION COMPARATORS AND INTERNAL REFERENCE POWER SUPPLY INPUTS HYSTERESIS VOLTAGE MONITORING SCHEME OUTPUTS OUTLINE DIMENSIONS ORDERING GUIDE
