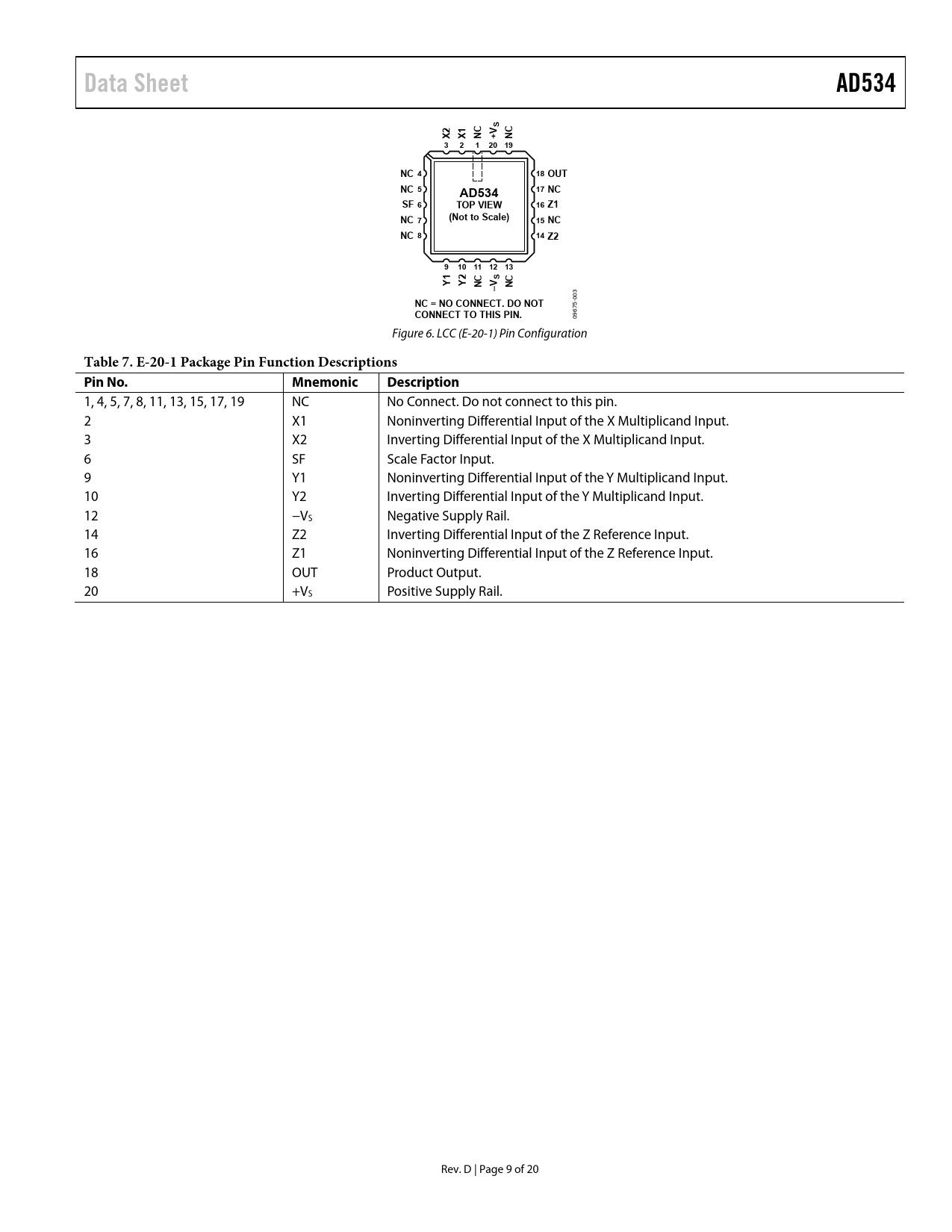

Data SheetAD534SX2X1NC+VNC32120 19NC 418 OUTNC 5AD53417 NCSF 6TOP VIEW16 Z1(Not to Scale)NC 715 NCNC 814 Z2910 11 12 13SY1Y2NCNC–V 003 NC = NO CONNECT. DO NOT CONNECT TO THIS PIN. 675- 09 Figure 6. LCC (E-20-1) Pin Configuration Table 7. E-20-1 Package Pin Function Descriptions Pin No.MnemonicDescription 1, 4, 5, 7, 8, 11, 13, 15, 17, 19 NC No Connect. Do not connect to this pin. 2 X1 Noninverting Differential Input of the X Multiplicand Input. 3 X2 Inverting Differential Input of the X Multiplicand Input. 6 SF Scale Factor Input. 9 Y1 Noninverting Differential Input of the Y Multiplicand Input. 10 Y2 Inverting Differential Input of the Y Multiplicand Input. 12 −VS Negative Supply Rail. 14 Z2 Inverting Differential Input of the Z Reference Input. 16 Z1 Noninverting Differential Input of the Z Reference Input. 18 OUT Product Output. 20 +VS Positive Supply Rail. Rev. D | Page 9 of 20 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Functional Description Provides Gain with Low Noise Operation as a Multiplier Operation as a Squarer Operation as a Divider Operation as a Square Rooter Unprecedented Flexibility Applications Information Outline Dimensions Ordering Guide
