Datasheet DMT47M2LDVQ (Diodes)
| Manufacturer | Diodes |
| Description | Dual 40V N-Channel Enhancement Mode MOSFET PowerDI3333-8 |
| Pages / Page | 7 / 1 — DMT47M2LDVQ. DUAL 40V N-CHANNEL ENHANCEMENT MODE MOSFET. PowerDI3333-8. … |
| File Format / Size | PDF / 498 Kb |
| Document Language | English |
DMT47M2LDVQ. DUAL 40V N-CHANNEL ENHANCEMENT MODE MOSFET. PowerDI3333-8. Product Summary. Features. D Max. BVDSS. RDS(ON) Max. C = +25°
Model Line for this Datasheet
Text Version of Document

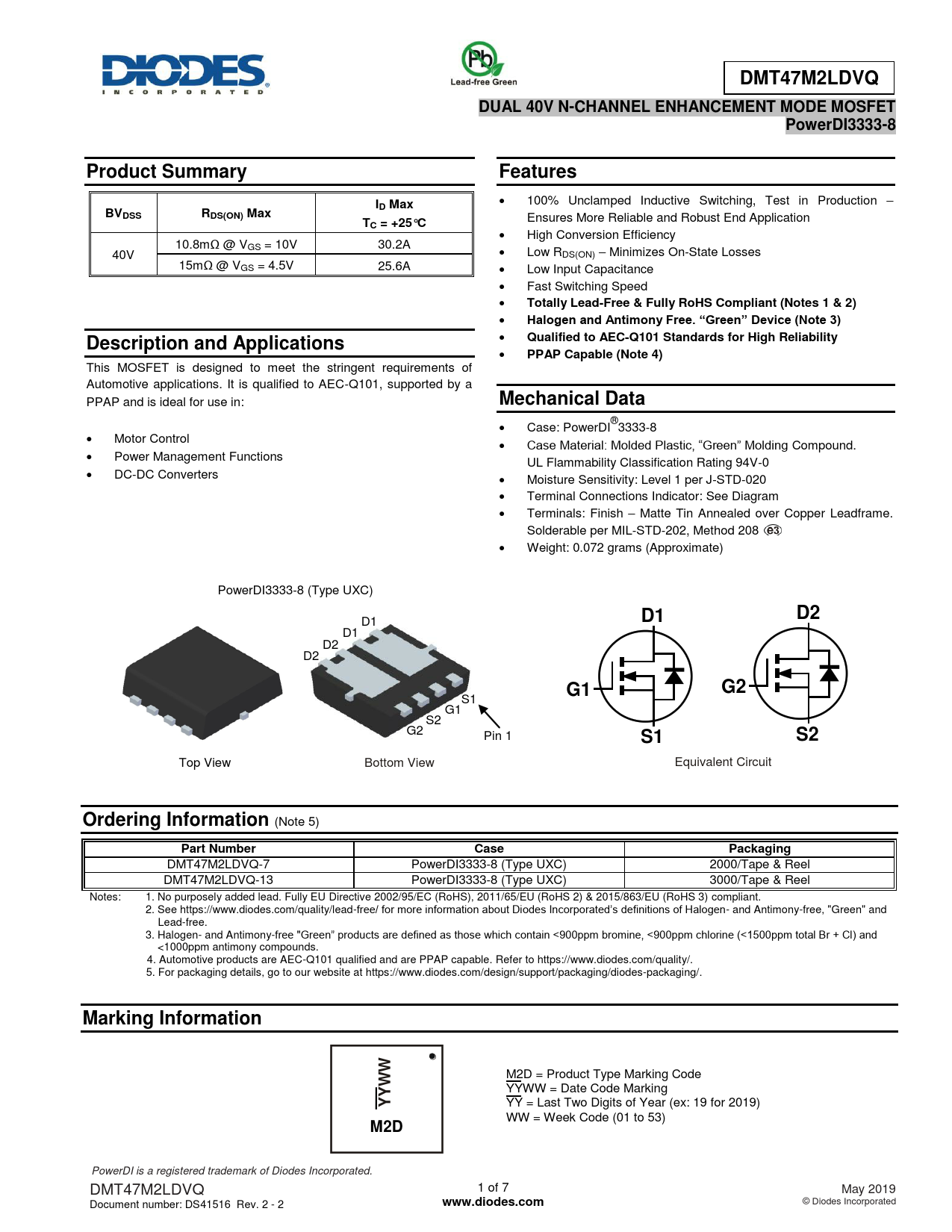

DMT47M2LDVQ DUAL 40V N-CHANNEL ENHANCEMENT MODE MOSFET PowerDI3333-8 Product Summary Features I
100% Unclamped Inductive Switching, Test in Production –
D Max BVDSS RDS(ON) Max T
Ensures More Reliable and Robust End Application
C = +25° C
High Conversion Efficiency 10.8mΩ @ VGS = 10V 30.2A 40V Low RDS(ON) – Minimizes On-State Losses 15mΩ @ VGS = 4.5V 25.6A Low Input Capacitance Fast Switching Speed
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Description and Applications Qualified to AEC-Q101 Standards for High Reliability PPAP Capable (Note 4)
This MOSFET is designed to meet the stringent requirements of Automotive applications. It is qualified to AEC-Q101, supported by a PPAP and is ideal for use in:
Mechanical Data
® Case: PowerDI 3333-8 Motor Control Case Material: Molded Plastic, “Green” Molding Compound. Power Management Functions UL Flammability Classification Rating 94V-0 DC-DC Converters Moisture Sensitivity: Level 1 per J-STD-020 Terminal Connections Indicator: See Diagram Terminals: Finish – Matte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 Weight: 0.072 grams (Approximate) PowerDI3333-8 (Type UXC) D1
D1 D2
D1 D2 D2
G1 G2
S1 G1 S2 G2 Pin 1
S1 S2
Top View Bottom View Equivalent Circuit
Ordering Information
(Note 5)
Part Number Case Packaging
DMT47M2LDVQ-7 PowerDI3333-8 (Type UXC) 2000/Tape & Reel DMT47M2LDVQ-13 PowerDI3333-8 (Type UXC) 3000/Tape & Reel Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to https://www.diodes.com/quality/. 5. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
Marking Information W
M2D = Product Type Marking Code
W Y
YYWW = Date Code Marking
Y
YY = Last Two Digits of Year (ex: 19 for 2019) WW = Week Code (01 to 53)
C6 M 0 2D
PowerDI is a registered trademark of Diodes I ncorporated. DMT47M2LDVQ 1 of 7 May 2019 Document number: DS41516 Rev. 2 - 2
www.diodes.com
© Diodes Incorporated
