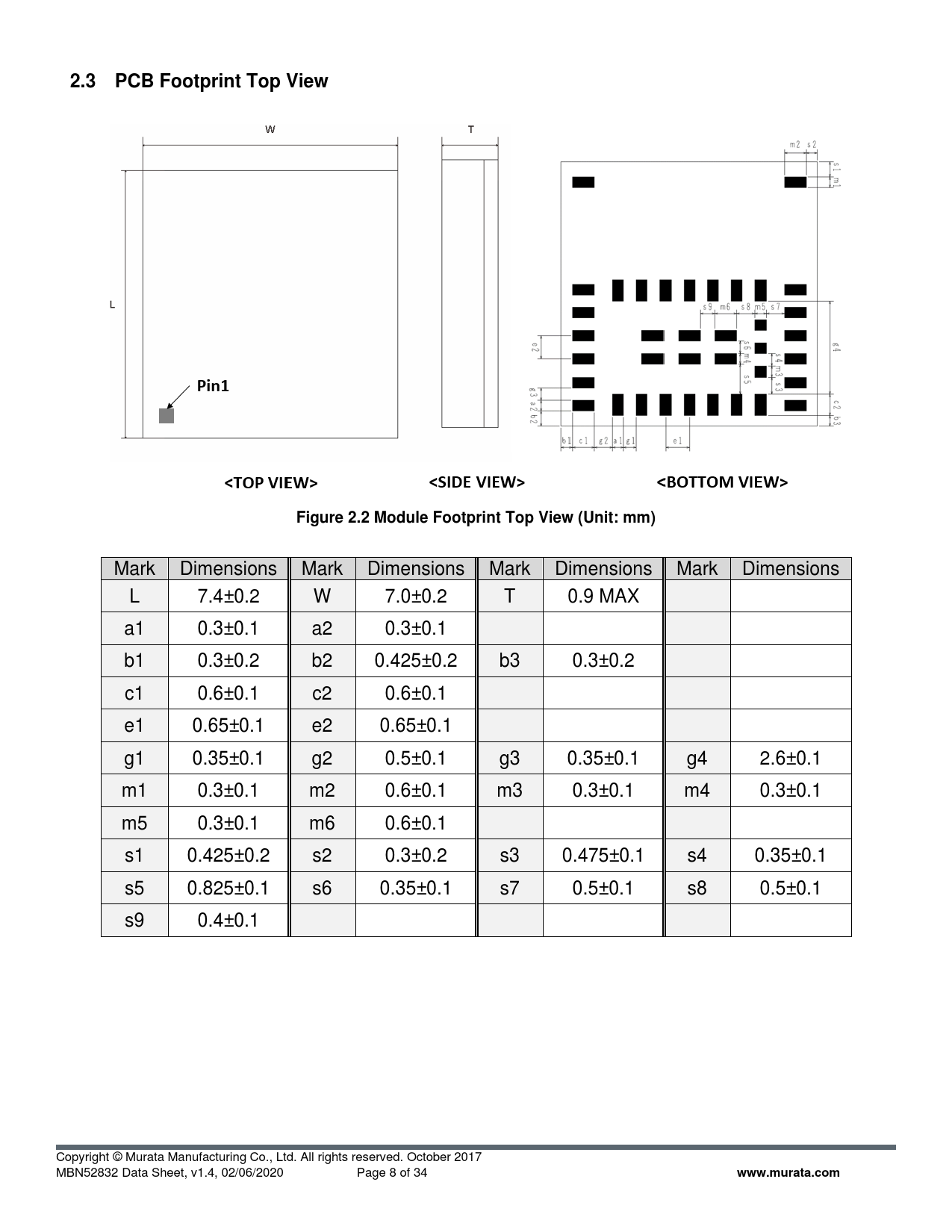

2.3 PCB Footprint Top View. Figure 2.2 Module Footprint Top View (Unit: mm). www.murata.com
Model Line for this Datasheet
Text Version of Document
2.3 PCB Footprint Top View Figure 2.2 Module Footprint Top View (Unit: mm)
Mark Dimensions Mark Dimensions Mark Dimensions Mark Dimensions L 7.4±0.2 W 7.0±0.2 T 0.9 MAX a1 0.3±0.1 a2 0.3±0.1 b1 0.3±0.2 b2 0.425±0.2 b3 0.3±0.2 c1 0.6±0.1 c2 0.6±0.1 e1 0.65±0.1 e2 0.65±0.1 g1 0.35±0.1 g2 0.5±0.1 g3 0.35±0.1 g4 2.6±0.1 m1 0.3±0.1 m2 0.6±0.1 m3 0.3±0.1 m4 0.3±0.1 m5 0.3±0.1 m6 0.6±0.1 s1 0.425±0.2 s2 0.3±0.2 s3 0.475±0.1 s4 0.35±0.1 s5 0.825±0.1 s6 0.35±0.1 s7 0.5±0.1 s8 0.5±0.1 s9 0.4±0.1 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. October 2017 MBN52832 Data Sheet, v1.4, 02/06/2020 Page 8 of 34
