Datasheet STDRIVE101 (STMicroelectronics) - 7
| Manufacturer | STMicroelectronics |
| Description | Triple half-bridge gate driver |
| Pages / Page | 32 / 7 — STDRIVE101. Electrical characteristics. Symbol. Parameter. Test … |
| File Format / Size | PDF / 899 Kb |
| Document Language | English |

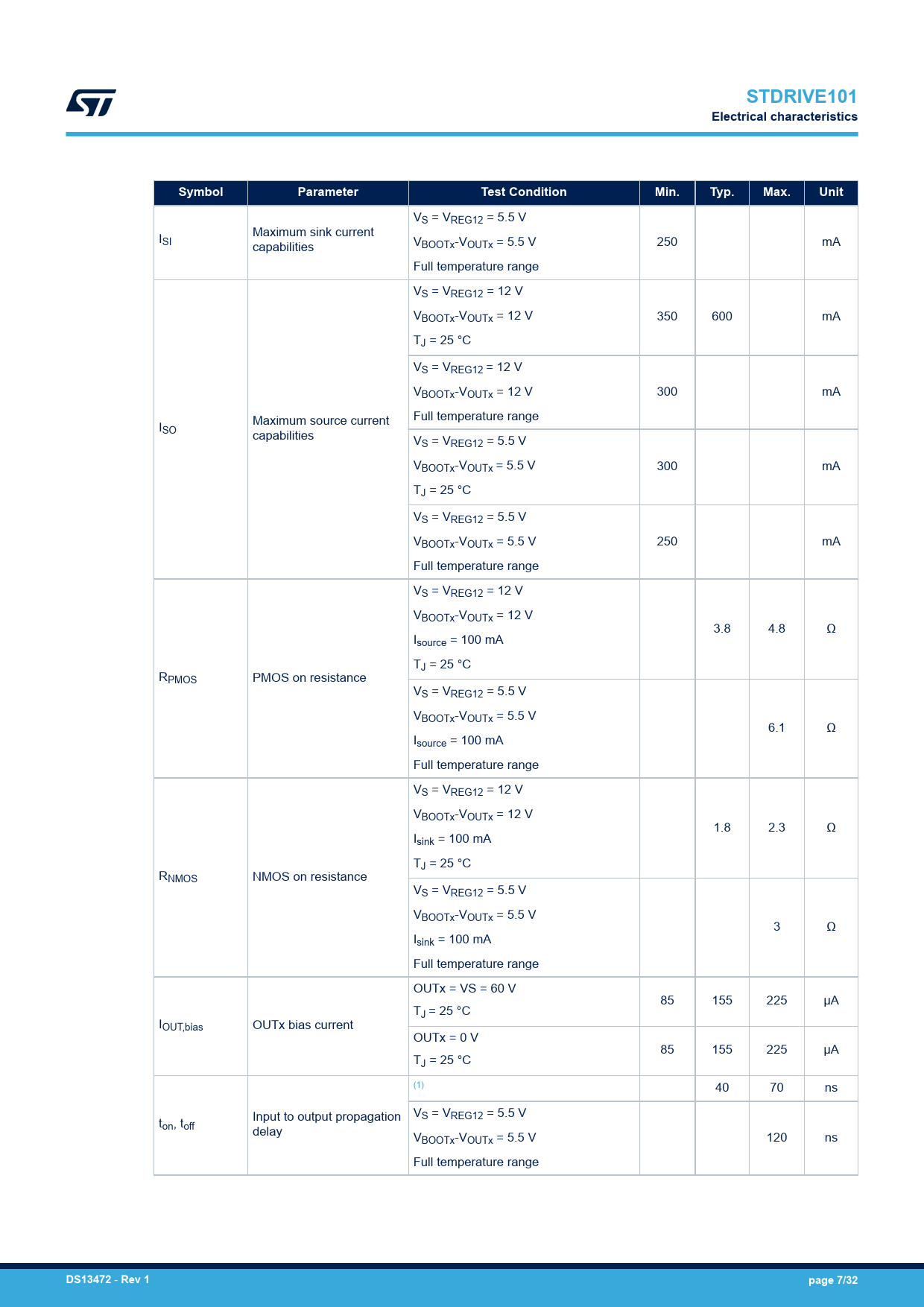

STDRIVE101. Electrical characteristics. Symbol. Parameter. Test Condition. Min. Typ. Max. Unit. DS13472. Rev 1. page 7/32
Model Line for this Datasheet
Text Version of Document
link to page 9
STDRIVE101 Electrical characteristics Symbol Parameter Test Condition Min. Typ. Max. Unit
VS = VREG12 = 5.5 V I Maximum sink current SI capabilities VBOOTx-VOUTx = 5.5 V 250 mA Full temperature range VS = VREG12 = 12 V VBOOTx-VOUTx = 12 V 350 600 mA TJ = 25 °C VS = VREG12 = 12 V VBOOTx-VOUTx = 12 V 300 mA Full temperature range I Maximum source current SO capabilities VS = VREG12 = 5.5 V VBOOTx-VOUTx = 5.5 V 300 mA TJ = 25 °C VS = VREG12 = 5.5 V VBOOTx-VOUTx = 5.5 V 250 mA Full temperature range VS = VREG12 = 12 V VBOOTx-VOUTx = 12 V 3.8 4.8 Ω Isource = 100 mA TJ = 25 °C RPMOS PMOS on resistance VS = VREG12 = 5.5 V VBOOTx-VOUTx = 5.5 V 6.1 Ω Isource = 100 mA Full temperature range VS = VREG12 = 12 V VBOOTx-VOUTx = 12 V 1.8 2.3 Ω Isink = 100 mA TJ = 25 °C RNMOS NMOS on resistance VS = VREG12 = 5.5 V VBOOTx-VOUTx = 5.5 V 3 Ω Isink = 100 mA Full temperature range OUTx = VS = 60 V 85 155 225 µA TJ = 25 °C IOUT,bias OUTx bias current OUTx = 0 V 85 155 225 µA TJ = 25 °C (1) 40 70 ns VS = VREG12 = 5.5 V t Input to output propagation on, toff delay VBOOTx-VOUTx = 5.5 V 120 ns Full temperature range
DS13472
-
Rev 1 page 7/32
