STDRIVE101. Electrical characteristics. Symbol. Parameter. Test Condition. Min. Typ. Max. Unit. Thermal protection
Model Line for this Datasheet
Text Version of Document
link to page 10 link to page 9 link to page 10 link to page 9 link to page 9 link to page 9

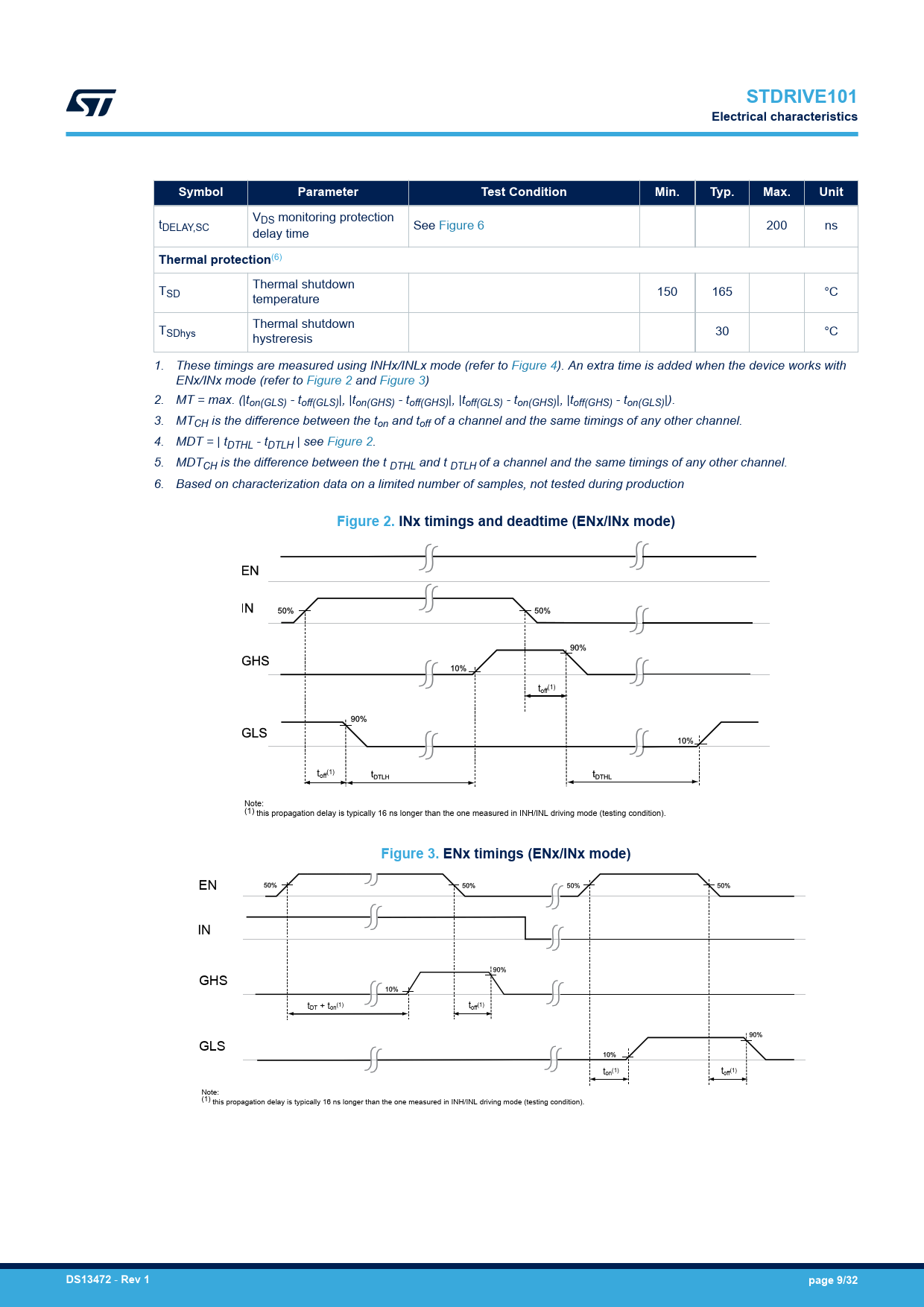

STDRIVE101 Electrical characteristics Symbol Parameter Test Condition Min. Typ. Max. Unit
V t DS monitoring protection DELAY,SC See Figure 6 200 ns delay time
Thermal protection
(6) T Thermal shutdown SD 150 165 °C temperature T Thermal shutdown SDhys 30 °C hystreresis 1. These timings are measured using INHx/INLx mode (refer to Figure 4). An extra time is added when the device works with ENx/INx mode (refer to Figure 2 and Figure 3) 2. MT = max. (|ton(GLS) - toff(GLS)|, |ton(GHS) - toff(GHS)|, |toff(GLS) - ton(GHS)|, |toff(GHS) - ton(GLS)|). 3. MTCH is the difference between the ton and toff of a channel and the same timings of any other channel. 4. MDT = | tDTHL - tDTLH | see Figure 2. 5. MDTCH is the difference between the t DTHL and t DTLH of a channel and the same timings of any other channel. 6. Based on characterization data on a limited number of samples, not tested during production
Figure 2. INx timings and deadtime (ENx/INx mode)
toff(1) toff(1) Note: (1) this propagation delay is typically 16 ns longer than the one measured in INH/INL driving mode (testing condition).
Figure 3. ENx timings (ENx/INx mode)
EN IN GHS tDT + ton(1) toff(1) GLS ton(1) toff(1) Note: (1) this propagation delay is typically 16 ns longer than the one measured in INH/INL driving mode (testing condition).
DS13472
-
Rev 1 page 9/32
