AC Electrical Characteristics—Single Supply (continued). PARAMETER. SYMBOL. CONDITIONS. MIN. TYP. MAX. UNITS
Model Line for this Datasheet
Text Version of Document

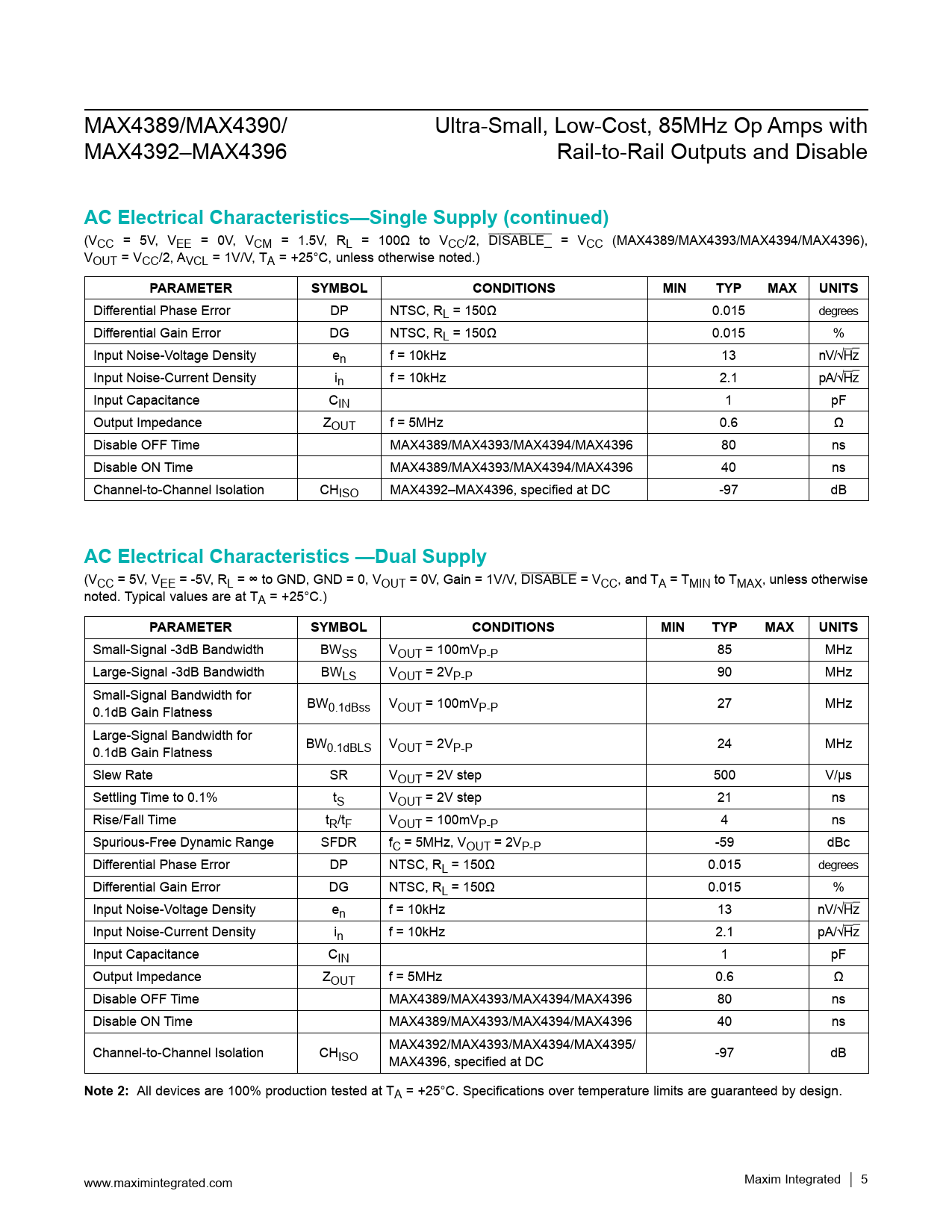

MAX4389/MAX4390/ Ultra-Small, Low-Cost, 85MHz Op Amps with MAX4392–MAX4396 Rail-to-Rail Outputs and Disable
AC Electrical Characteristics—Single Supply (continued)
(VCC = 5V, VEE = 0V, VCM = 1.5V, RL = 100Ω to VCC/2, DISABLE_ = VCC (MAX4389/MAX4393/MAX4394/MAX4396), VOUT = VCC/2, AVCL = 1V/V, TA = +25°C, unless otherwise noted.)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Differential Phase Error DP NTSC, RL = 150Ω 0.015 degrees Differential Gain Error DG NTSC, RL = 150Ω 0.015 % Input Noise-Voltage Density en f = 10kHz 13 nV/√Hz Input Noise-Current Density in f = 10kHz 2.1 pA/√Hz Input Capacitance CIN 1 pF Output Impedance ZOUT f = 5MHz 0.6 Ω Disable OFF Time MAX4389/MAX4393/MAX4394/MAX4396 80 ns Disable ON Time MAX4389/MAX4393/MAX4394/MAX4396 40 ns Channel-to-Channel Isolation CHISO MAX4392–MAX4396, specified at DC -97 dB
AC Electrical Characteristics —Dual Supply
(VCC = 5V, VEE = -5V, RL = ∞ to GND, GND = 0, VOUT = 0V, Gain = 1V/V, DISABLE = VCC, and TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Small-Signal -3dB Bandwidth BWSS VOUT = 100mVP-P 85 MHz Large-Signal -3dB Bandwidth BWLS VOUT = 2VP-P 90 MHz Small-Signal Bandwidth for 0.1dB Gain Flatness BW0.1dBss VOUT = 100mVP-P 27 MHz Large-Signal Bandwidth for 0.1dB Gain Flatness BW0.1dBLS VOUT = 2VP-P 24 MHz Slew Rate SR VOUT = 2V step 500 V/µs Settling Time to 0.1% tS VOUT = 2V step 21 ns Rise/Fall Time tR/tF VOUT = 100mVP-P 4 ns Spurious-Free Dynamic Range SFDR fC = 5MHz, VOUT = 2VP-P -59 dBc Differential Phase Error DP NTSC, RL = 150Ω 0.015 degrees Differential Gain Error DG NTSC, RL = 150Ω 0.015 % Input Noise-Voltage Density en f = 10kHz 13 nV/√Hz Input Noise-Current Density in f = 10kHz 2.1 pA/√Hz Input Capacitance CIN 1 pF Output Impedance ZOUT f = 5MHz 0.6 Ω Disable OFF Time MAX4389/MAX4393/MAX4394/MAX4396 80 ns Disable ON Time MAX4389/MAX4393/MAX4394/MAX4396 40 ns Channel-to-Channel Isolation CH MAX4392/MAX4393/MAX4394/MAX4395/ ISO MAX4396, specified at DC -97 dB
Note 2:
All devices are 100% production tested at TA = +25°C. Specifications over temperature limits are guaranteed by design. www.maximintegrated.com Maxim Integrated │ 5
AC Electrical Characteristics—Single Supply (continued)
(VCC = 5V, VEE = 0V, VCM = 1.5V, RL = 100Ω to VCC/2, DISABLE_ = VCC (MAX4389/MAX4393/MAX4394/MAX4396), VOUT = VCC/2, AVCL = 1V/V, TA = +25°C, unless otherwise noted.)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Differential Phase Error DP NTSC, RL = 150Ω 0.015 degrees Differential Gain Error DG NTSC, RL = 150Ω 0.015 % Input Noise-Voltage Density en f = 10kHz 13 nV/√Hz Input Noise-Current Density in f = 10kHz 2.1 pA/√Hz Input Capacitance CIN 1 pF Output Impedance ZOUT f = 5MHz 0.6 Ω Disable OFF Time MAX4389/MAX4393/MAX4394/MAX4396 80 ns Disable ON Time MAX4389/MAX4393/MAX4394/MAX4396 40 ns Channel-to-Channel Isolation CHISO MAX4392–MAX4396, specified at DC -97 dB
AC Electrical Characteristics —Dual Supply
(VCC = 5V, VEE = -5V, RL = ∞ to GND, GND = 0, VOUT = 0V, Gain = 1V/V, DISABLE = VCC, and TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Small-Signal -3dB Bandwidth BWSS VOUT = 100mVP-P 85 MHz Large-Signal -3dB Bandwidth BWLS VOUT = 2VP-P 90 MHz Small-Signal Bandwidth for 0.1dB Gain Flatness BW0.1dBss VOUT = 100mVP-P 27 MHz Large-Signal Bandwidth for 0.1dB Gain Flatness BW0.1dBLS VOUT = 2VP-P 24 MHz Slew Rate SR VOUT = 2V step 500 V/µs Settling Time to 0.1% tS VOUT = 2V step 21 ns Rise/Fall Time tR/tF VOUT = 100mVP-P 4 ns Spurious-Free Dynamic Range SFDR fC = 5MHz, VOUT = 2VP-P -59 dBc Differential Phase Error DP NTSC, RL = 150Ω 0.015 degrees Differential Gain Error DG NTSC, RL = 150Ω 0.015 % Input Noise-Voltage Density en f = 10kHz 13 nV/√Hz Input Noise-Current Density in f = 10kHz 2.1 pA/√Hz Input Capacitance CIN 1 pF Output Impedance ZOUT f = 5MHz 0.6 Ω Disable OFF Time MAX4389/MAX4393/MAX4394/MAX4396 80 ns Disable ON Time MAX4389/MAX4393/MAX4394/MAX4396 40 ns Channel-to-Channel Isolation CH MAX4392/MAX4393/MAX4394/MAX4395/ ISO MAX4396, specified at DC -97 dB
Note 2:
All devices are 100% production tested at TA = +25°C. Specifications over temperature limits are guaranteed by design. www.maximintegrated.com Maxim Integrated │ 5
