Datasheet ADL8150 (Analog Devices) - 3

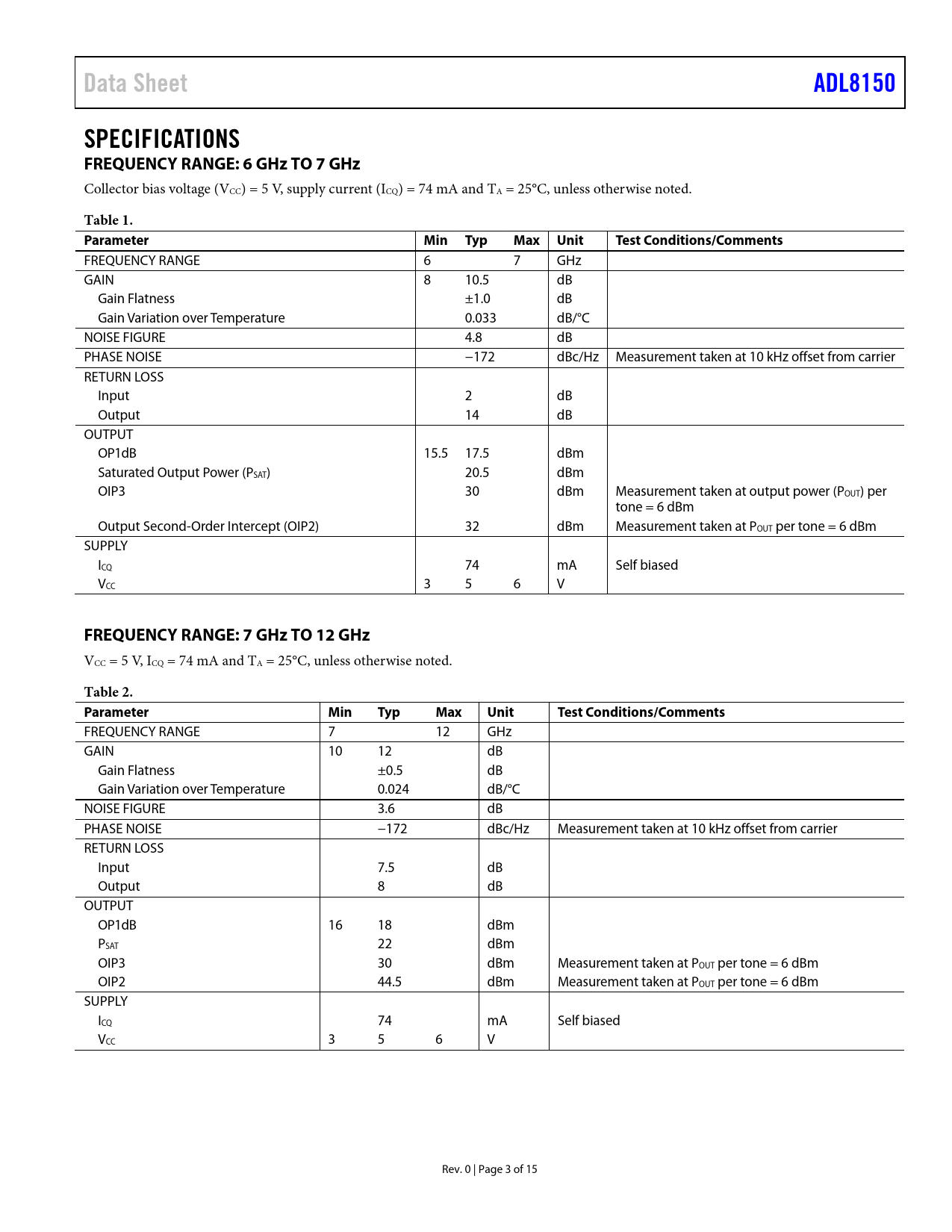

Data Sheet ADL8150 SPECIFICATIONS FREQUENCY RANGE: 6 GHz TO 7 GHz
Collector bias voltage (VCC) = 5 V, supply current (ICQ) = 74 mA and TA = 25°C, unless otherwise noted.
Table 1. Parameter Min Typ Max Unit Test Conditions/Comments
FREQUENCY RANGE 6 7 GHz GAIN 8 10.5 dB Gain Flatness ±1.0 dB Gain Variation over Temperature 0.033 dB/°C NOISE FIGURE 4.8 dB PHASE NOISE −172 dBc/Hz Measurement taken at 10 kHz offset from carrier RETURN LOSS Input 2 dB Output 14 dB OUTPUT OP1dB 15.5 17.5 dBm Saturated Output Power (PSAT) 20.5 dBm OIP3 30 dBm Measurement taken at output power (POUT) per tone = 6 dBm Output Second-Order Intercept (OIP2) 32 dBm Measurement taken at POUT per tone = 6 dBm SUPPLY ICQ 74 mA Self biased VCC 3 5 6 V
