HMC5805ALS6
v02.0517

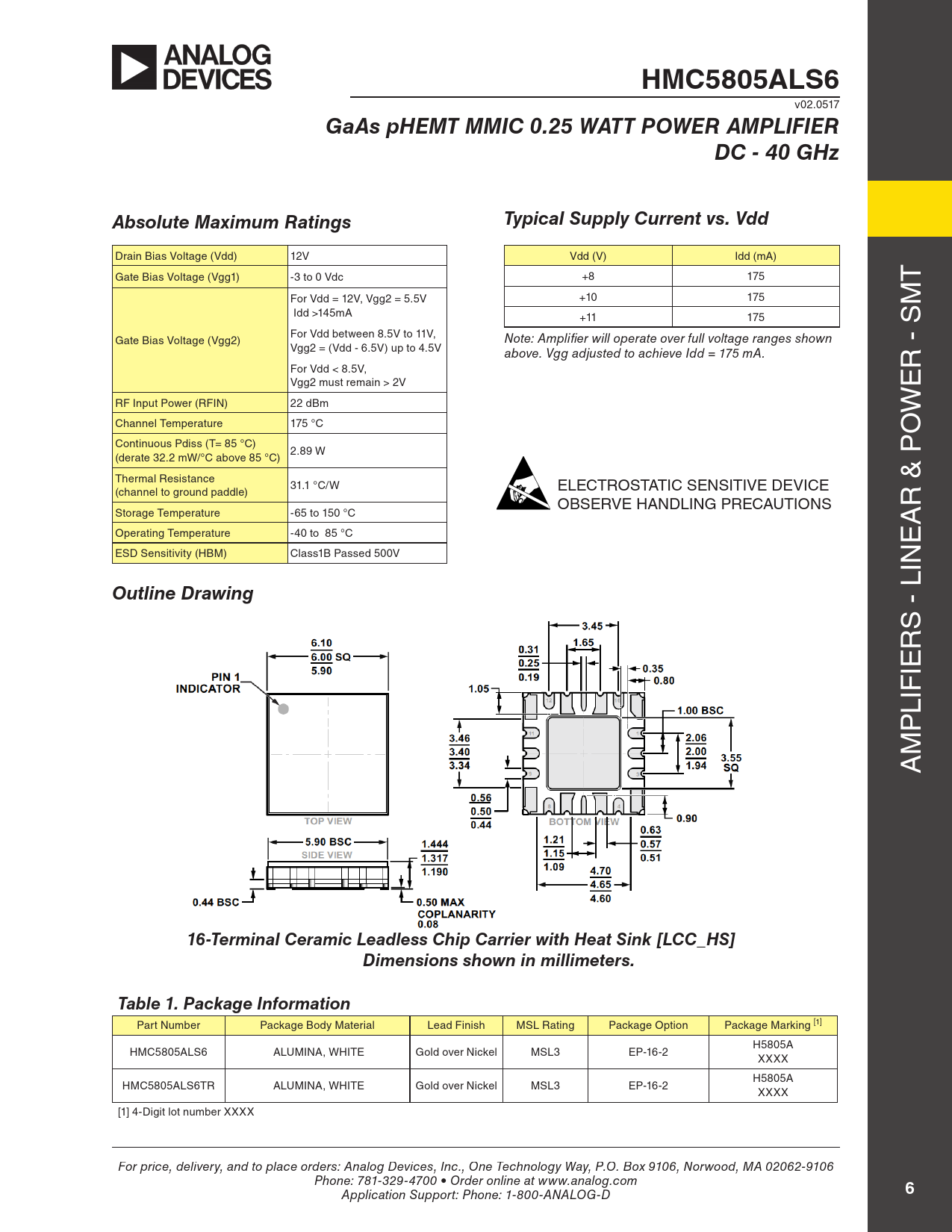

GaAs pHEMT MMIC 0.25 WATT POWER AMPLIFIER DC - 40 GHz Absolute Maximum Ratings Typical Supply Current vs. Vdd
Drain Bias Voltage (Vdd) 12V Vdd (V) Idd (mA) Gate Bias Voltage (Vgg1) -3 to 0 Vdc +8 175 T For Vdd = 12V, Vgg2 = 5.5V +10 175 M Idd >145mA +11 175 For Vdd between 8.5V to 11V, Gate Bias Voltage (Vgg2) Note: Amplifier will operate over full voltage ranges shown Vgg2 = (Vdd - 6.5V) up to 4.5V above. Vgg adjusted to achieve Idd = 175 mA. For Vdd < 8.5V, R - S Vgg2 must remain > 2V E RF Input Power (RFIN) 22 dBm W Channel Temperature 175 °C O Continuous Pdiss (T= 85 °C) 2.89 W (derate 32.2 mW/°C above 85 °C) Thermal Resistance 31.1 °C/W ELECTROSTATIC SENSITIVE DEVICE (channel to ground paddle) OBSERVE HANDLING PRECAUTIONS R & P Storage Temperature -65 to 150 °C A Operating Temperature -40 to 85 °C E ESD Sensitivity (HBM) Class1B Passed 500V IN
Outline Drawing
S - L R IE LIF P M A
16-Terminal Ceramic Leadless Chip Carrier with Heat Sink [LCC_HS] Dimensions shown in millimeters. Table 1. Package Information
Part Number Package Body Material Lead Finish MSL Rating Package Option Package Marking [1] H5805A HMC5805ALS6 ALUMINA, WHITE Gold over Nickel MSL3 EP-16-2 XXXX H5805A HMC5805ALS6TR ALUMINA, WHITE Gold over Nickel MSL3 EP-16-2 XXXX [1] 4-Digit lot number XXXX For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
