| Description | 700 MHz TO 2700 MHz 1 W RF Driver Amplifier |
| Pages / Page | 23 / 3 — Data Sheet. ADL5604. SPECIFICATIONS. Table 1. Parameter. Test … |
| Revision | C |
| File Format / Size | PDF / 672 Kb |
| Document Language | English |
Data Sheet. ADL5604. SPECIFICATIONS. Table 1. Parameter. Test Conditions/Comments. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4

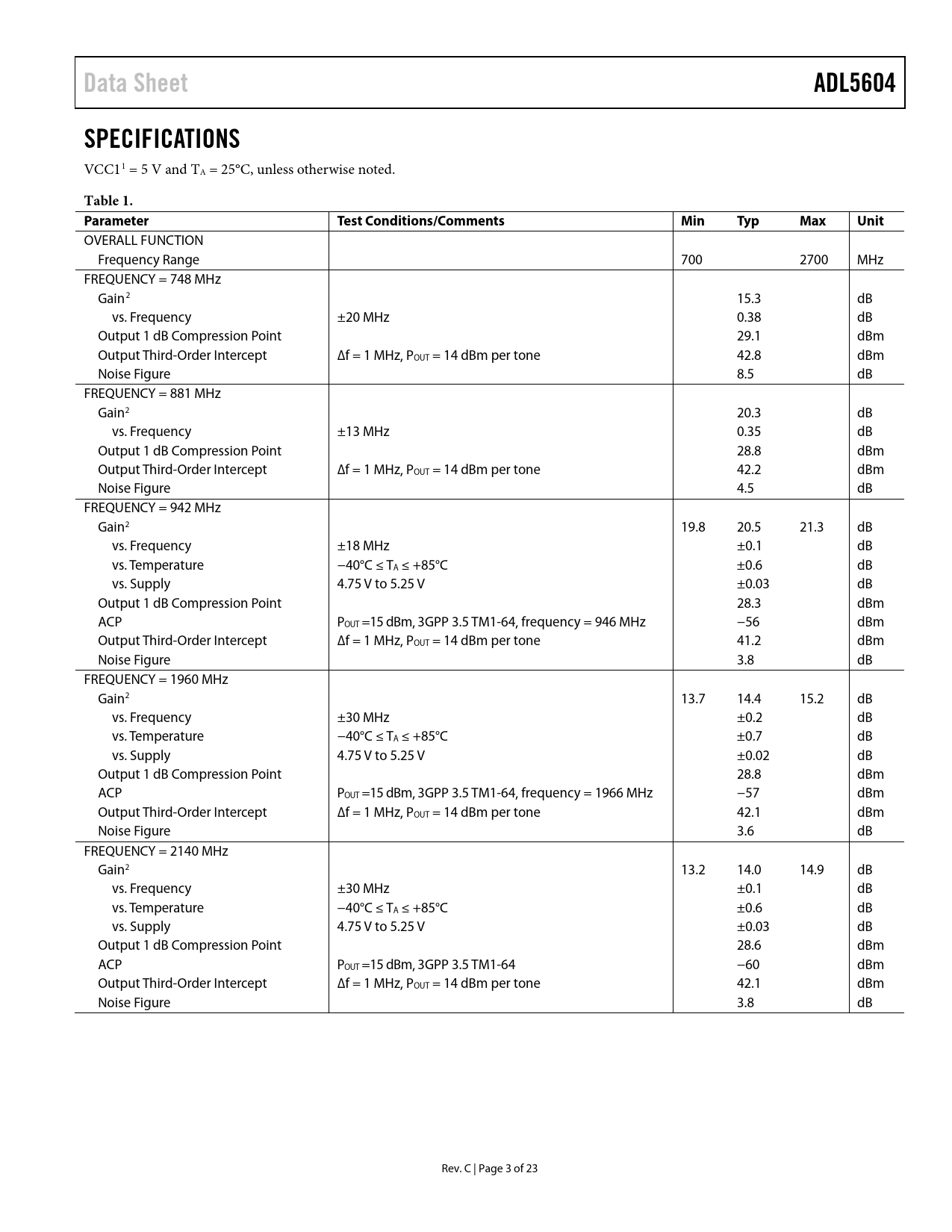

Data Sheet ADL5604 SPECIFICATIONS
VCC11 = 5 V and TA = 25°C, unless otherwise noted.
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
OVERALL FUNCTION Frequency Range 700 2700 MHz FREQUENCY = 748 MHz Gain2 15.3 dB vs. Frequency ±20 MHz 0.38 dB Output 1 dB Compression Point 29.1 dBm Output Third-Order Intercept ∆f = 1 MHz, POUT = 14 dBm per tone 42.8 dBm Noise Figure 8.5 dB FREQUENCY = 881 MHz Gain2 20.3 dB vs. Frequency ±13 MHz 0.35 dB Output 1 dB Compression Point 28.8 dBm Output Third-Order Intercept ∆f = 1 MHz, POUT = 14 dBm per tone 42.2 dBm Noise Figure 4.5 dB FREQUENCY = 942 MHz Gain2 19.8 20.5 21.3 dB vs. Frequency ±18 MHz ±0.1 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.6 dB vs. Supply 4.75 V to 5.25 V ±0.03 dB Output 1 dB Compression Point 28.3 dBm ACP POUT =15 dBm, 3GPP 3.5 TM1-64, frequency = 946 MHz −56 dBm Output Third-Order Intercept ∆f = 1 MHz, POUT = 14 dBm per tone 41.2 dBm Noise Figure 3.8 dB FREQUENCY = 1960 MHz Gain2 13.7 14.4 15.2 dB vs. Frequency ±30 MHz ±0.2 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.7 dB vs. Supply 4.75 V to 5.25 V ±0.02 dB Output 1 dB Compression Point 28.8 dBm ACP POUT =15 dBm, 3GPP 3.5 TM1-64, frequency = 1966 MHz −57 dBm Output Third-Order Intercept ∆f = 1 MHz, POUT = 14 dBm per tone 42.1 dBm Noise Figure 3.6 dB FREQUENCY = 2140 MHz Gain2 13.2 14.0 14.9 dB vs. Frequency ±30 MHz ±0.1 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.6 dB vs. Supply 4.75 V to 5.25 V ±0.03 dB Output 1 dB Compression Point 28.6 dBm ACP POUT =15 dBm, 3GPP 3.5 TM1-64 −60 dBm Output Third-Order Intercept ∆f = 1 MHz, POUT = 14 dBm per tone 42.1 dBm Noise Figure 3.8 dB Rev. C | Page 3 of 23 Document Outline Features Functional Block Diagram General Description Table of Contents Revision History Specifications Typical Scattering Parameters Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Applications Information Basic Layout Connections Power Supply RF Input Interface RF Output Interface Power-Down Circuit ADL5604 Match ACPR and EVM Thermal Considerations Soldering Information and Recommended PCB Land Pattern Evaluation Board Outline Dimensions Ordering Guide
