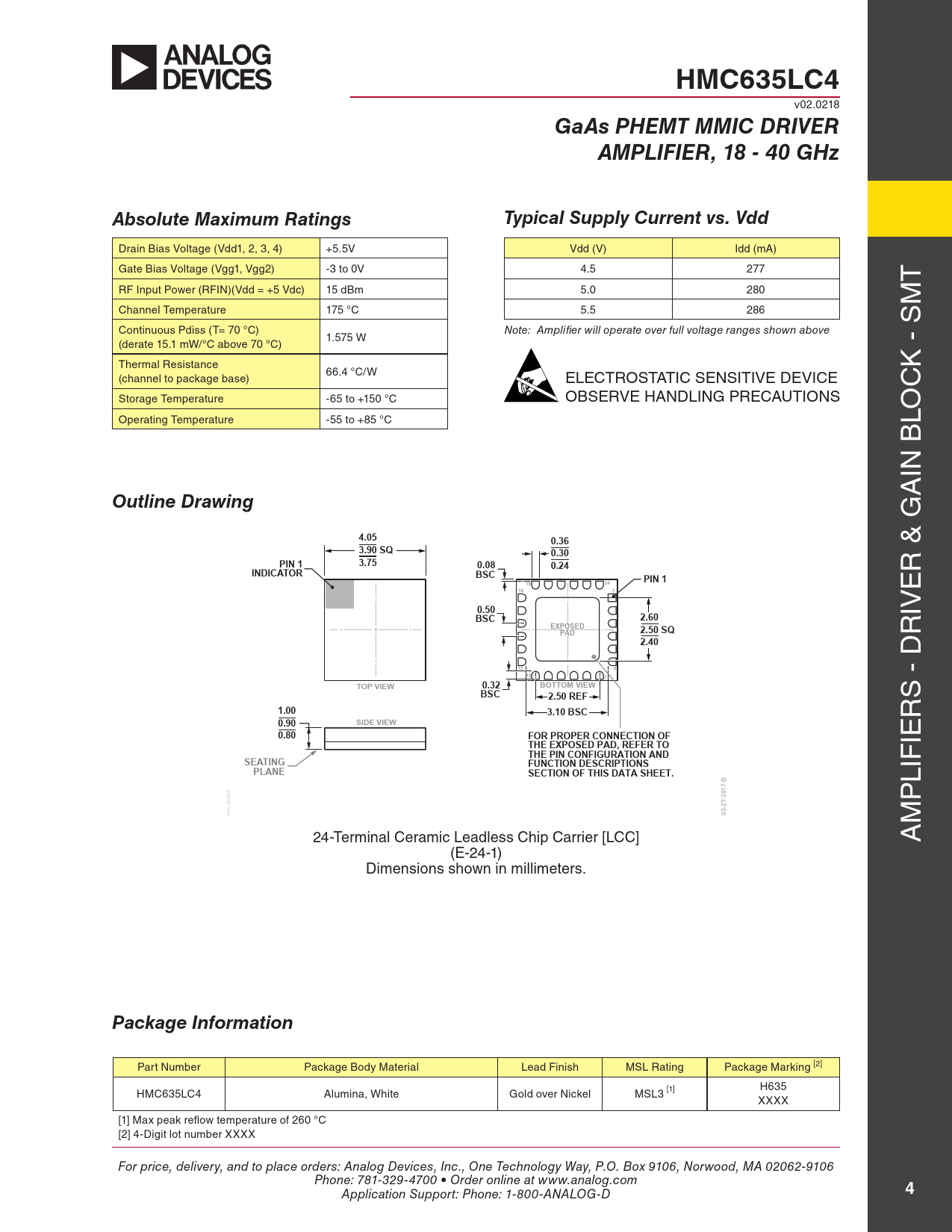

HMC635LC4. GaAs PHEMT MMIC DRIVER. AMPLIFIER, 18 - 40 GHz. Absolute Maximum Ratings. Typical Supply Current vs. Vdd
Model Line for this Datasheet
Text Version of Document
HMC635LC4
v02.0218
GaAs PHEMT MMIC DRIVER AMPLIFIER, 18 - 40 GHz Absolute Maximum Ratings Typical Supply Current vs. Vdd
Drain Bias Voltage (Vdd1, 2, 3, 4) +5.5V Vdd (V) Idd (mA) Gate Bias Voltage (Vgg1, Vgg2) -3 to 0V 4.5 277 T RF Input Power (RFIN)(Vdd = +5 Vdc) 15 dBm 5.0 280 M Channel Temperature 175 °C 5.5 286 Continuous Pdiss (T= 70 °C) Note: Amplifier will operate over full voltage ranges shown above 1.575 W (derate 15.1 mW/°C above 70 °C) Thermal Resistance K - S 66.4 °C/W (channel to package base) ELECTROSTATIC SENSITIVE DEVICE C Storage Temperature -65 to +150 °C OBSERVE HANDLING PRECAUTIONS Operating Temperature -55 to +85 °C LO
24-Terminal Ceramic Leadless Chip Carrier [LCC] (E-24-1)
IN B
Dimensions shown in millimeters.
A
Outline Drawing 4.05 0.36 3.90 SQ 0.30 PIN 1 3.75 0.08 0.24 INDICATOR
R & G
BSC PIN 1 19 24 18 1
E
0.50 2.60
IV
BSC EXPOSED PAD 2.50 SQ
R
2.40 13 6 12 7 TOP VIEW 0.32 BOTTOM VIEW BSC 2.50 REF
S - D
1.00 3.10 BSC
R
0.90 SIDE VIEW 0.80 FOR PROPER CONNECTION OF THE EXPOSED PAD, REFER TO
IE
THE PIN CONFIGURATION AND SEATING FUNCTION DESCRIPTIONS PLANE SECTION OF THIS DATA SHEET.
LIF P
PKG-004840 02-27-2017-B
M 24-Terminal Ceramic Leadless Chip Carrier [LCC] A (E-24-1) Dimensions shown in mil imeters.
Package Information
Part Number Package Body Material Lead Finish MSL Rating Package Marking [2] HMC635LC4 Alumina, White Gold over Nickel MSL3 [1] H635 XXXX [1] Max peak reflow temperature of 260 °C [2] 4-Digit lot number XXXX For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
