Datasheet HMC635LC4 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | GaAs PHEMT MMIC DRIVER AMPLIFIER, 18 -40 GHz |
| Pages / Page | 6 / 6 — HMC635LC4. GaAs PHEMT MMIC DRIVER. AMPLIFIER, 18 - 40 GHz. Evaluation … |
| File Format / Size | PDF / 1.0 Mb |
| Document Language | English |

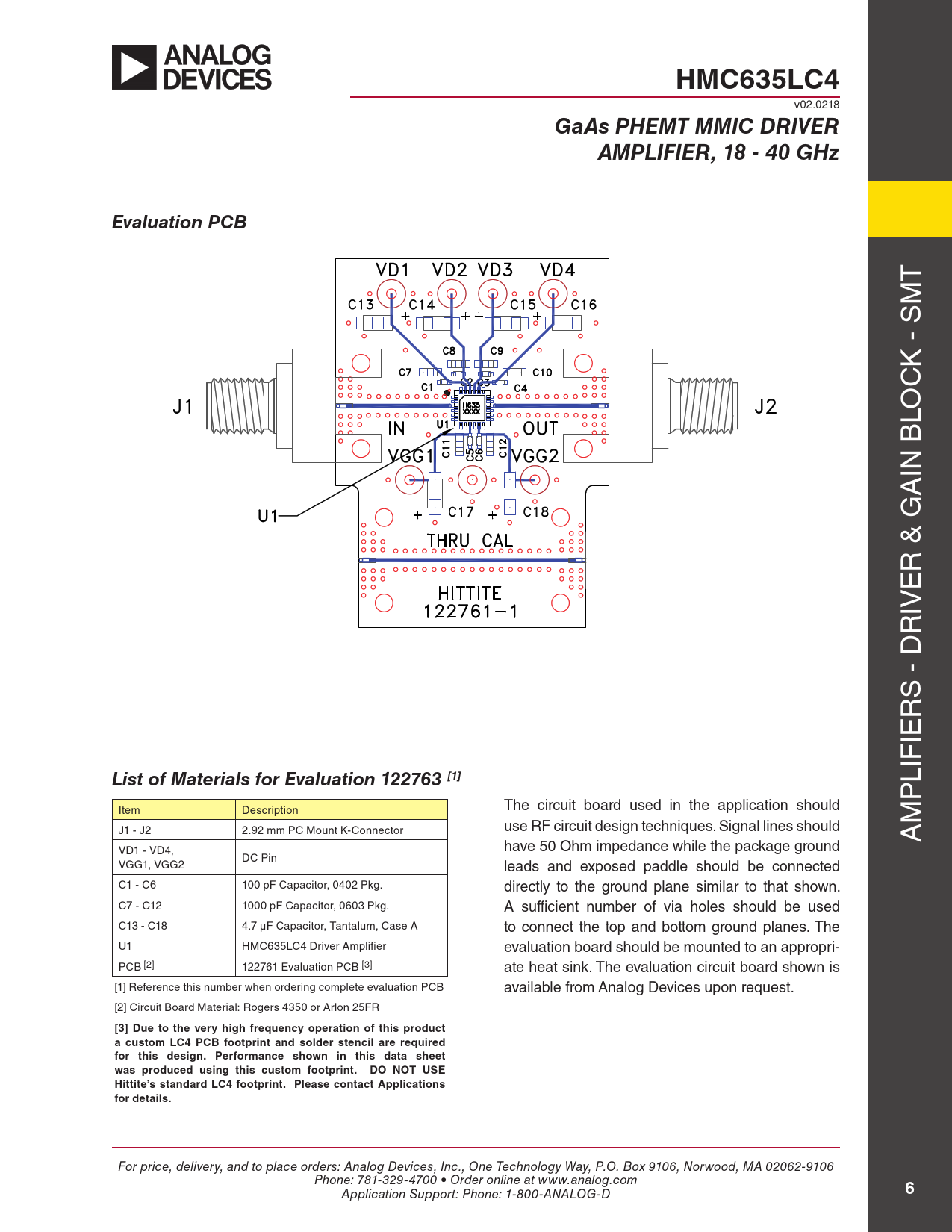

HMC635LC4. GaAs PHEMT MMIC DRIVER. AMPLIFIER, 18 - 40 GHz. Evaluation PCB. List of Materials for Evaluation 122763 [1]
Model Line for this Datasheet
Text Version of Document
HMC635LC4
v02.0218
GaAs PHEMT MMIC DRIVER AMPLIFIER, 18 - 40 GHz Evaluation PCB
T M K - S C LO IN B A R & G E IV R S - D R IE
List of Materials for Evaluation 122763 [1]
LIF P Item Description The circuit board used in the application should M J1 - J2 2.92 mm PC Mount K-Connector use RF circuit design techniques. Signal lines should A have 50 Ohm impedance while the package ground VD1 - VD4, DC Pin VGG1, VGG2 leads and exposed paddle should be connected C1 - C6 100 pF Capacitor, 0402 Pkg. directly to the ground plane similar to that shown. C7 - C12 1000 pF Capacitor, 0603 Pkg. A sufficient number of via holes should be used C13 - C18 4.7 µF Capacitor, Tantalum, Case A to connect the top and bottom ground planes. The U1 HMC635LC4 Driver Amplifier evaluation board should be mounted to an appropri- PCB [2] 122761 Evaluation PCB [3] ate heat sink. The evaluation circuit board shown is [1] Reference this number when ordering complete evaluation PCB available from Analog Devices upon request. [2] Circuit Board Material: Rogers 4350 or Arlon 25FR
[3] Due to the very high frequency operation of this product a custom LC4 PCB footprint and solder stencil are required for this design. Performance shown in this data sheet was produced using this custom footprint. DO NOT USE Hittite’s standard LC4 footprint. Please contact Applications for details.
For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
6
