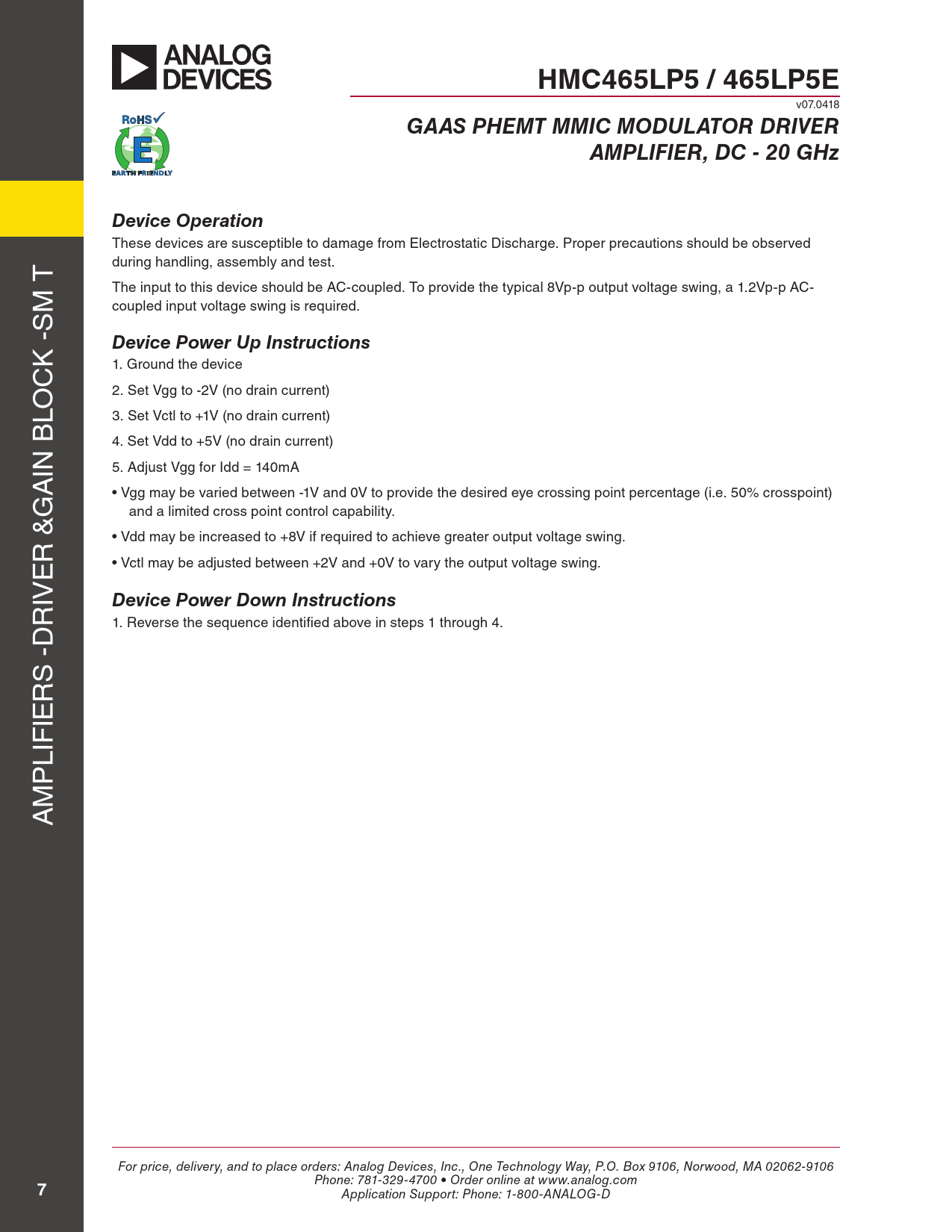

HMC465LP5 / 465LP5E
v07.0418
GAAS PHEMT MMIC MODULATOR DRIVER AMPLIFIER, DC - 20 GHz Device Operation
These devices are susceptible to damage from electrostatic Discharge. proper precautions should be observed during handling, assembly and test. T m The input to this device should be Ac-coupled. To provide the typical 8vp-p output voltage swing, a 1.2vp-p Ac- s coupled input voltage swing is required. k -
Device Power Up Instructions
c 1. Ground the device 2. set vgg to -2v (no drain current) lo 3. set vctl to +1v (no drain current) 4. set vdd to +5v (no drain current) in B 5. Adjust vgg for idd = 140mA A G • vgg may be varied between -1v and 0v to provide the desired eye crossing point percentage (i.e. 50% crosspoint) and a limited cross point control capability. • vdd may be increased to +8v if required to achieve greater output voltage swing. r & e • vctl may be adjusted between +2v and +0v to vary the output voltage swing. iv
Device Power Down Instructions
r D 1. reverse the sequence identified above in steps 1 through 4. s - r ie lif p m A For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
