HMC442LM1
v01.0807

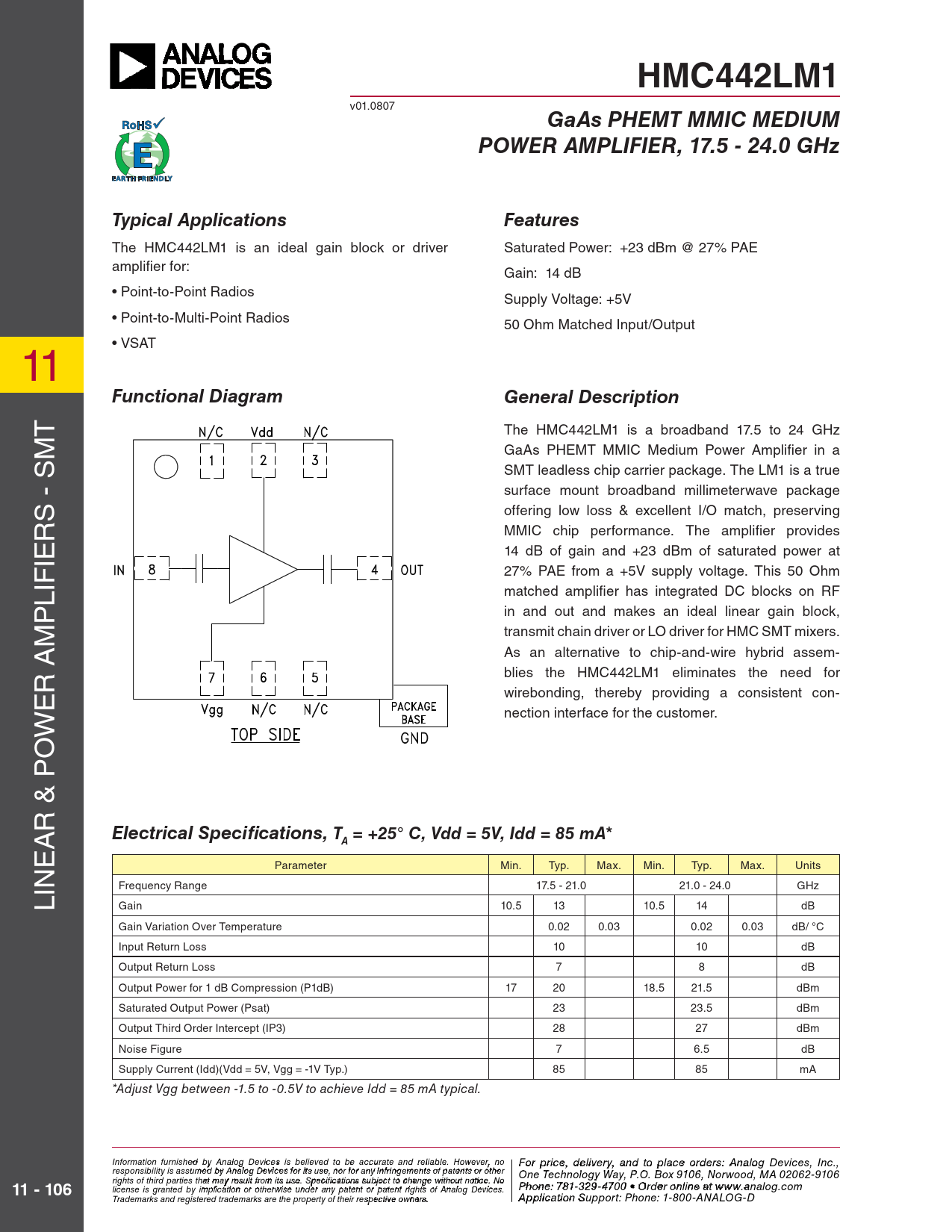

GaAs PHEMT MMIC MEDIUM POWER AMPLIFIER, 17.5 - 24.0 GHz Typical Applications Features
The HMC442LM1 is an ideal gain block or driver Saturated Power: +23 dBm @ 27% PAE amplifi er for: Gain: 14 dB • Point-to-Point Radios Supply Voltage: +5V • Point-to-Multi-Point Radios 50 Ohm Matched Input/Output • VSAT 11
Functional Diagram General Description
T The HMC442LM1 is a broadband 17.5 to 24 GHz GaAs PHEMT MMIC Medium Power Amplifi er in a SMT leadless chip carrier package. The LM1 is a true - SM surface mount broadband millimeterwave package S offering low loss & excellent I/O match, preserving R MMIC chip performance. The amplifi er provides IE 14 dB of gain and +23 dBm of saturated power at IF 27% PAE from a +5V supply voltage. This 50 Ohm L matched amplifi er has integrated DC blocks on RF P in and out and makes an ideal linear gain block, M transmit chain driver or LO driver for HMC SMT mixers. As an alternative to chip-and-wire hybrid assem- blies the HMC442LM1 eliminates the need for R A E wirebonding, thereby providing a consistent con- nection interface for the customer. W O & P R A
Electrical Specifi cations, T = +25° C, Vdd = 5V, Idd = 85 mA* A
E Parameter Min. Typ. Max. Min. Typ. Max. Units IN Frequency Range 17.5 - 21.0 21.0 - 24.0 GHz L Gain 10.5 13 10.5 14 dB Gain Variation Over Temperature 0.02 0.03 0.02 0.03 dB/ °C Input Return Loss 10 10 dB Output Return Loss 7 8 dB Output Power for 1 dB Compression (P1dB) 17 20 18.5 21.5 dBm Saturated Output Power (Psat) 23 23.5 dBm Output Third Order Intercept (IP3) 28 27 dBm Noise Figure 7 6.5 dB Supply Current (Idd)(Vdd = 5V, Vgg = -1V Typ.) 85 85 mA *Adjust Vgg between -1.5 to -0.5V to achieve Idd = 85 mA typical. Information furnish F e o d r pri by An ce, de alog Devic leis vie s rby eli, a eve nd to pla d to be accur ce o ate an r d der relia s ble , pl . Ho ease co wever, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other ntact Hittite Microwave Corporation: One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 20 Alpha Road, Chelmsford, MA 01824 Phone rights of third parties that may result from its use. Specifications subject to change without notice. No : 978 Phon -e25 : 7 0 81 - - 3 3 3 29 4 - 3 F 470 ax 0 • O : 978 rder o - nl 25 in 0 e a - t 33 ww 73
11 - 106
license is granted by implication or otherwise under any patent or patent rights of Analog Devices. w.analog.com Order On- Trademarks and registered trademarks are the property of their respective owners. line at www.hi A tptipte.co licatio m n Support: Phone: 1-800-ANALOG-D
