Datasheet ADL7003 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | 50 GHz to 95 GHz, GaAs, pHEMT, MMIC, Wideband Low Noise Amplifier |
| Pages / Page | 18 / 5 — Data Sheet. ADL7003. ABSOLUTE MAXIMUM RATINGS Table 4. THERMAL … |
| File Format / Size | PDF / 486 Kb |
| Document Language | English |

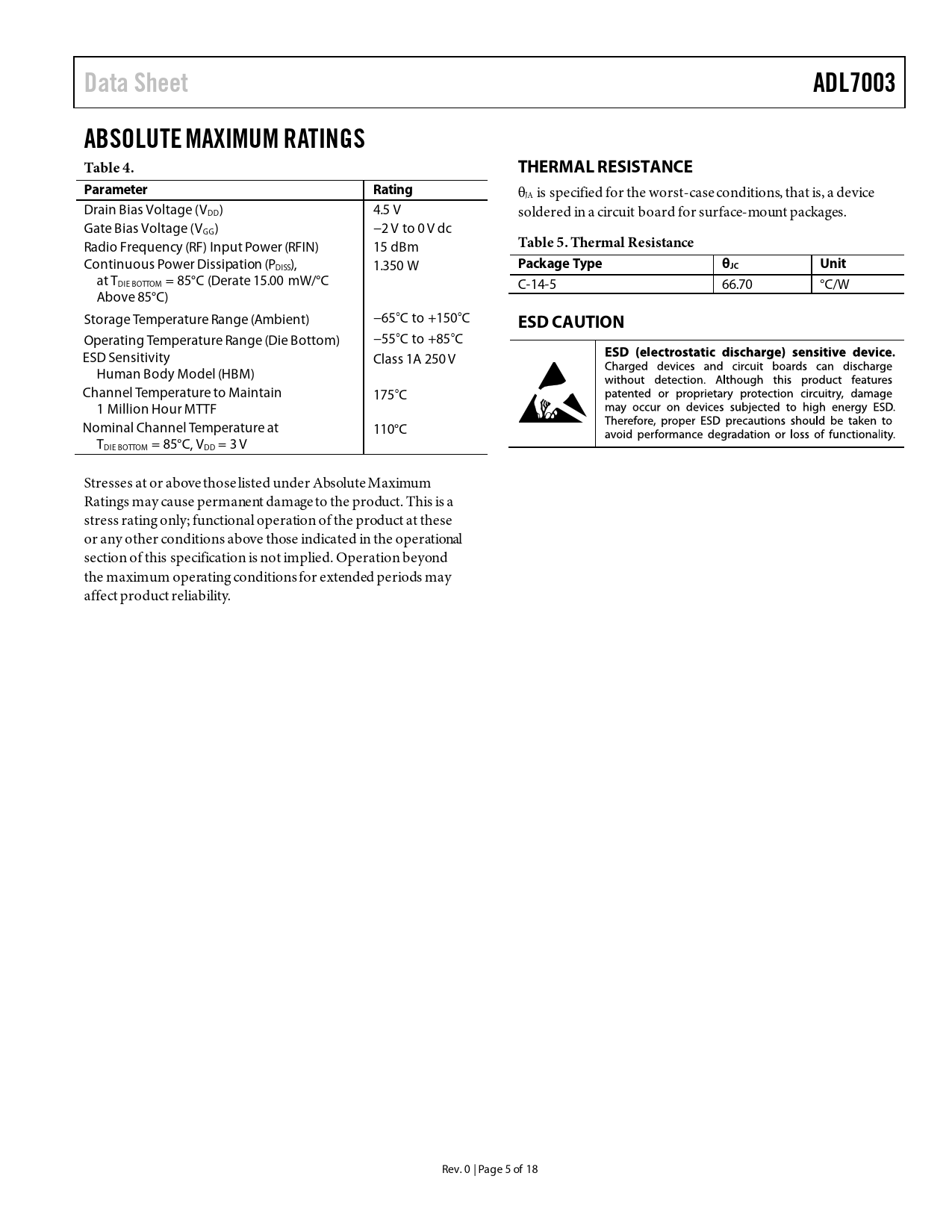

Data Sheet. ADL7003. ABSOLUTE MAXIMUM RATINGS Table 4. THERMAL RESISTANCE. Parameter. Rating. Table 5. Thermal Resistance
Model Line for this Datasheet
Text Version of Document
Data Sheet ADL7003 ABSOLUTE MAXIMUM RATINGS Table 4. THERMAL RESISTANCE Parameter Rating
θJA is specified for the worst-case conditions, that is, a device Drain Bias Voltage (VDD) 4.5 V soldered in a circuit board for surface-mount packages. Gate Bias Voltage (VGG) −2 V to 0 V dc Radio Frequency (RF) Input Power (RFIN) 15 dBm
Table 5. Thermal Resistance
Continuous Power Dissipation (PDISS), 1.350 W
Package Type θJC Unit
at TDIE BOTTOM = 85°C (Derate 15.00 mW/°C C-14-5 66.70 °C/W Above 85°C) Storage Temperature Range (Ambient) −65°C to +150°C
