2 GHz to 30 GHz, GaAs. pHEMT MMIC Low Noise Amplifier. Data Sheet. HMC8400. FEATURES. GENERAL DESCRIPTION
Model Line for this Datasheet
Text Version of Document
2 GHz to 30 GHz, GaAs pHEMT MMIC Low Noise Amplifier Data Sheet HMC8400 FEATURES GENERAL DESCRIPTION Output power for 1 dB compression (P1dB): 14.5 dBm typical
The HMC8400 is a gallium arsenide (GaAs), pseudomorphic
Saturated output power (PSAT): 17 dBm typical
high electron mobility transistor (pHEMT), monolithic microwave
Gain: 13.5 dB typical
integrated circuit (MMIC). The HMC8400 is a wideband low
Noise figure: 2 dB
noise amplifier that operates between 2 GHz and 30 GHz. The
Output third-order intercept (IP3): 26.5 dBm typical
amplifier provides 13.5 dB of gain, a 2 dB noise figure, 26.5 dBm
Supply voltage: 5 V at 67 mA
output IP3, and 14.5 dBm of output power at 1 dB gain compres-
50 Ω matched input/output
sion, requiring 67 mA from a 5 V supply. The HMC8400 is self
Die size: 2.7 mm × 1.35 mm × 0.05 mm
biased with only a single positive supply needed to achieve a
APPLICATIONS
drain current IDD of 67 mA. The HMC8400 also has a gain control option, VGG2. The HMC8400 amplifier input/outputs are internally
Test instrumentation
matched to 50 Ω and dc blocked, facilitating integration into
Microwave radios and very small aperture terminals (VSATs)
multichip modules (MCMs). All data is taken with the chip
Military and space
connected via two 0.025 mm (1 mil) wire bonds of minimal
Telecommunications infrastructure
length 0.31 mm (12 mils).

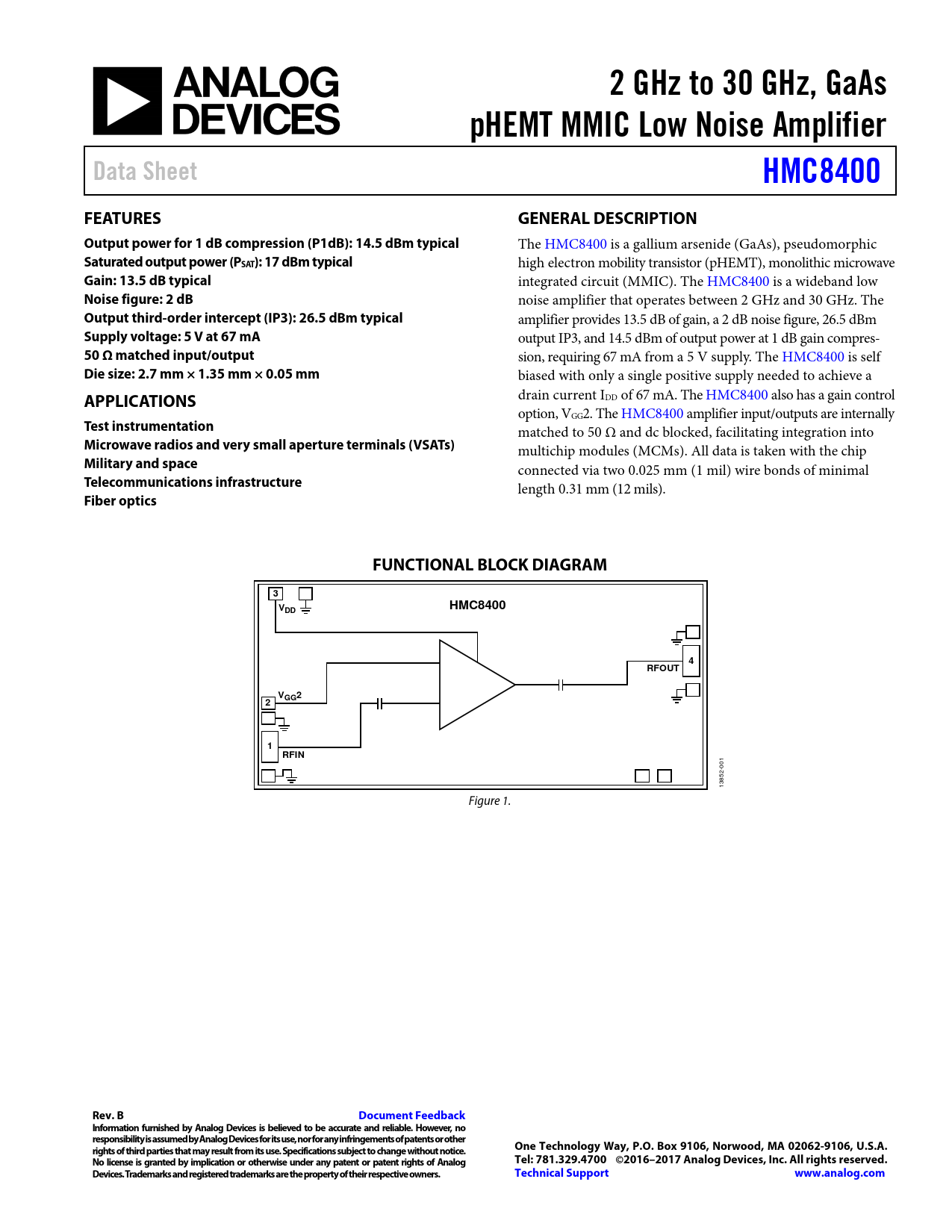

Fiber optics FUNCTIONAL BLOCK DIAGRAM 3 V HMC8400 DD 4 RFOUT VGG2 2 1 RFIN
001 52- 138 Figure 1.
