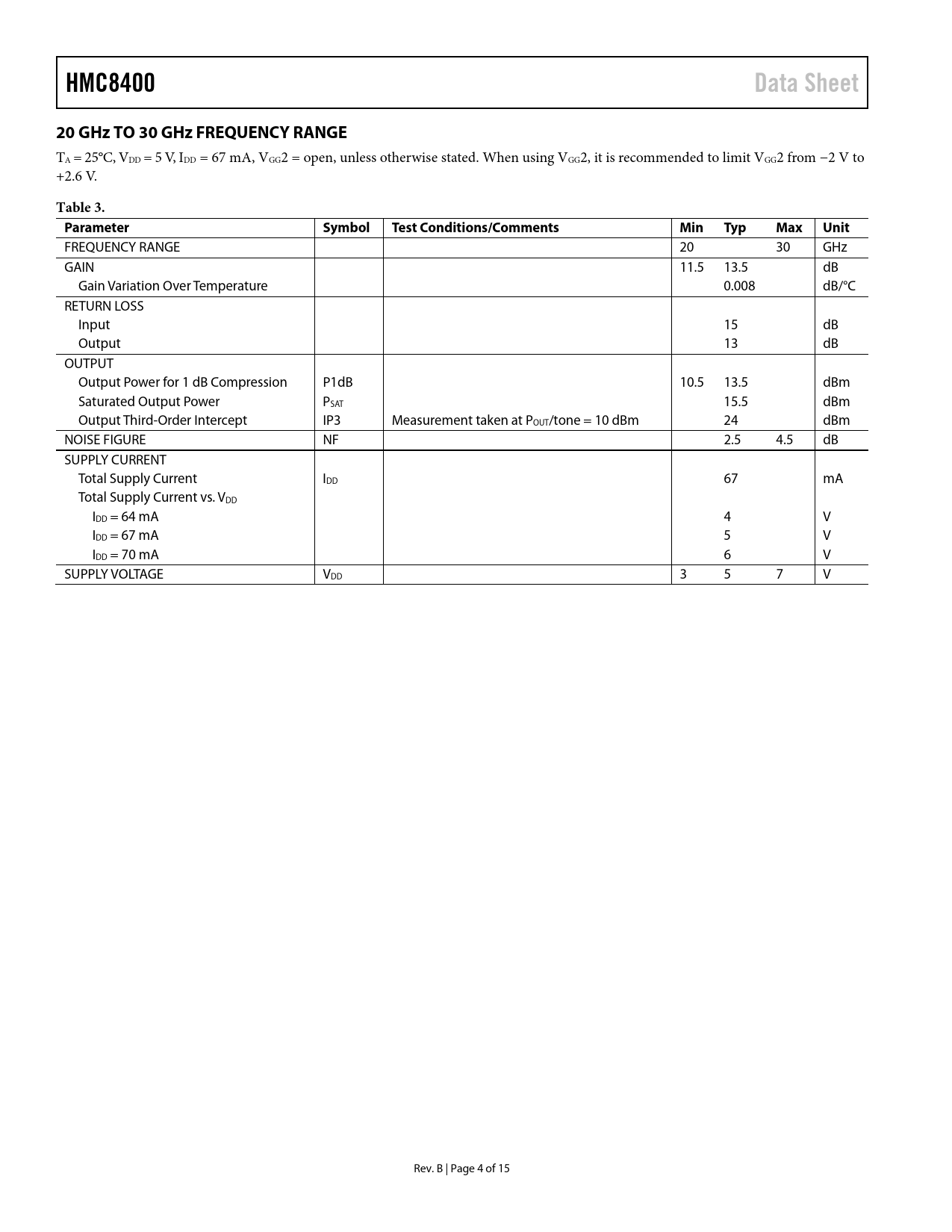

HMC8400 Data Sheet 20 GHz TO 30 GHz FREQUENCY RANGE
TA = 25°C, VDD = 5 V, IDD = 67 mA, VGG2 = open, unless otherwise stated. When using VGG2, it is recommended to limit VGG2 from −2 V to +2.6 V.
Table 3. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
FREQUENCY RANGE 20 30 GHz GAIN 11.5 13.5 dB Gain Variation Over Temperature 0.008 dB/°C RETURN LOSS Input 15 dB Output 13 dB OUTPUT Output Power for 1 dB Compression P1dB 10.5 13.5 dBm Saturated Output Power PSAT 15.5 dBm Output Third-Order Intercept IP3 Measurement taken at POUT/tone = 10 dBm 24 dBm NOISE FIGURE NF 2.5 4.5 dB SUPPLY CURRENT Total Supply Current IDD 67 mA Total Supply Current vs. VDD IDD = 64 mA 4 V IDD = 67 mA 5 V IDD = 70 mA 6 V SUPPLY VOLTAGE VDD 3 5 7 V Rev. B | Page 4 of 15 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM REVISION HISTORY SPECIFICATIONS 2 GHz TO 6 GHz FREQUENCY RANGE 6 GHz TO 20 GHz FREQUENCY RANGE 20 GHz TO 30 GHz FREQUENCY RANGE ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION BIASING PROCEDURES MOUNTING AND BONDING TECHNIQUES FOR MILLIMETERWAVE GaAs MMICs Handling Precautions Mounting Eutectic Die Attach Epoxy Die Attach Wire Bonding TYPICAL APPLICATION CIRCUIT ASSEMBLY DIAGRAM OUTLINE DIMENSIONS ORDERING GUIDE
