| Description | 2 GHz to 30 GHz, GaAs pHEMT MMIC Low Noise Amplifier |
| Pages / Page | 15 / 3 — Data Sheet. HMC8400. SPECIFICATIONS 2 GHz TO 6 GHz FREQUENCY RANGE. Table … |
| Revision | B |
| File Format / Size | PDF / 313 Kb |
| Document Language | English |

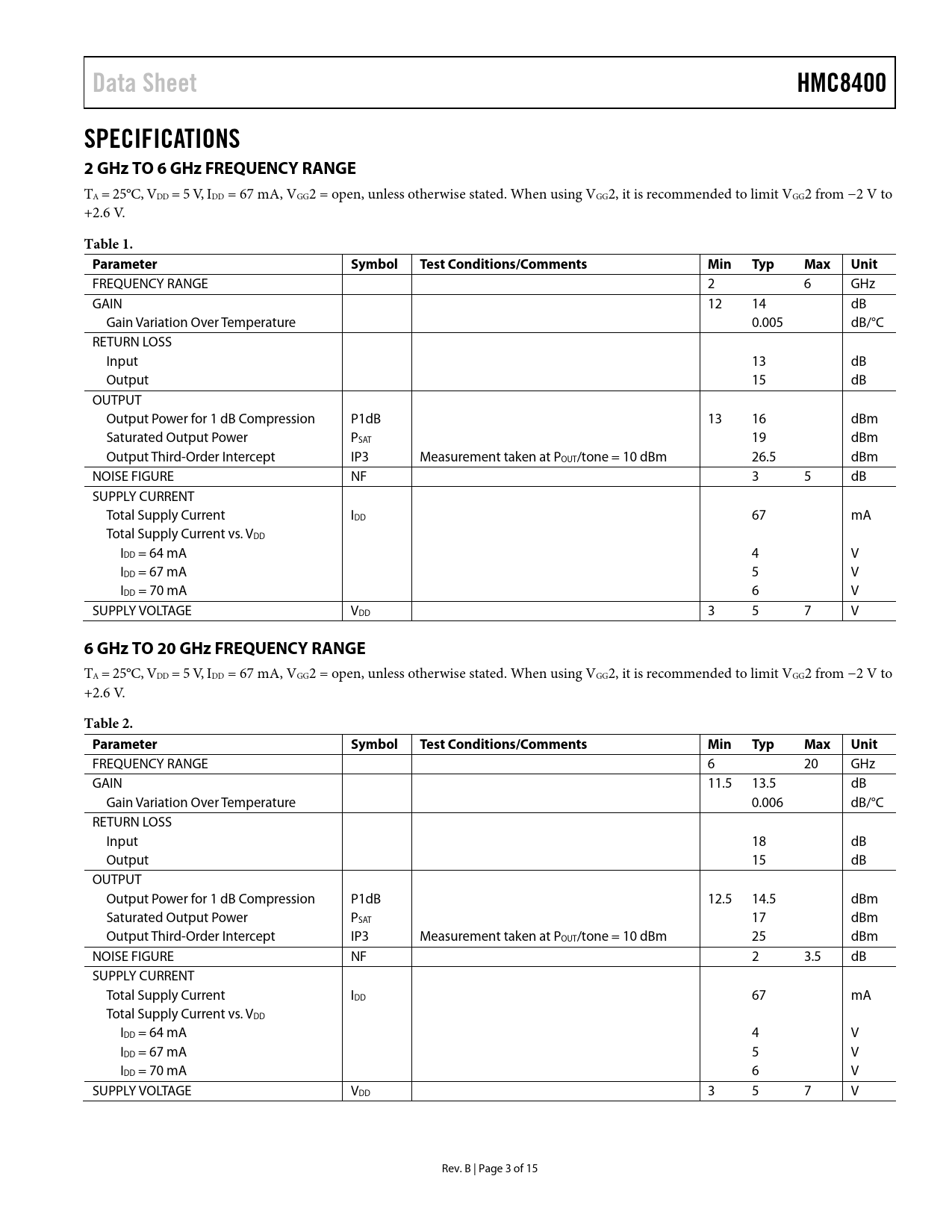

Data Sheet. HMC8400. SPECIFICATIONS 2 GHz TO 6 GHz FREQUENCY RANGE. Table 1. Parameter. Symbol. Test Conditions/Comments. Min. Typ. Max
Model Line for this Datasheet
Text Version of Document
Data Sheet HMC8400 SPECIFICATIONS 2 GHz TO 6 GHz FREQUENCY RANGE
TA = 25°C, VDD = 5 V, IDD = 67 mA, VGG2 = open, unless otherwise stated. When using VGG2, it is recommended to limit VGG2 from −2 V to +2.6 V.
Table 1. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
FREQUENCY RANGE 2 6 GHz GAIN 12 14 dB Gain Variation Over Temperature 0.005 dB/°C RETURN LOSS Input 13 dB Output 15 dB OUTPUT Output Power for 1 dB Compression P1dB 13 16 dBm Saturated Output Power PSAT 19 dBm Output Third-Order Intercept IP3 Measurement taken at POUT/tone = 10 dBm 26.5 dBm NOISE FIGURE NF 3 5 dB SUPPLY CURRENT Total Supply Current IDD 67 mA Total Supply Current vs. VDD IDD = 64 mA 4 V IDD = 67 mA 5 V IDD = 70 mA 6 V SUPPLY VOLTAGE VDD 3 5 7 V
