Datasheet HMC1049 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | GaAs pHEMT MMIC Low Noise Amplifier, 0.3 GHz to 20 GHz |
| Pages / Page | 14 / 3 — Data Sheet. HMC1049. SPECIFICATIONS. Table 1. Parameter. Min. Typ. Max. … |
| Revision | B |
| File Format / Size | PDF / 272 Kb |
| Document Language | English |

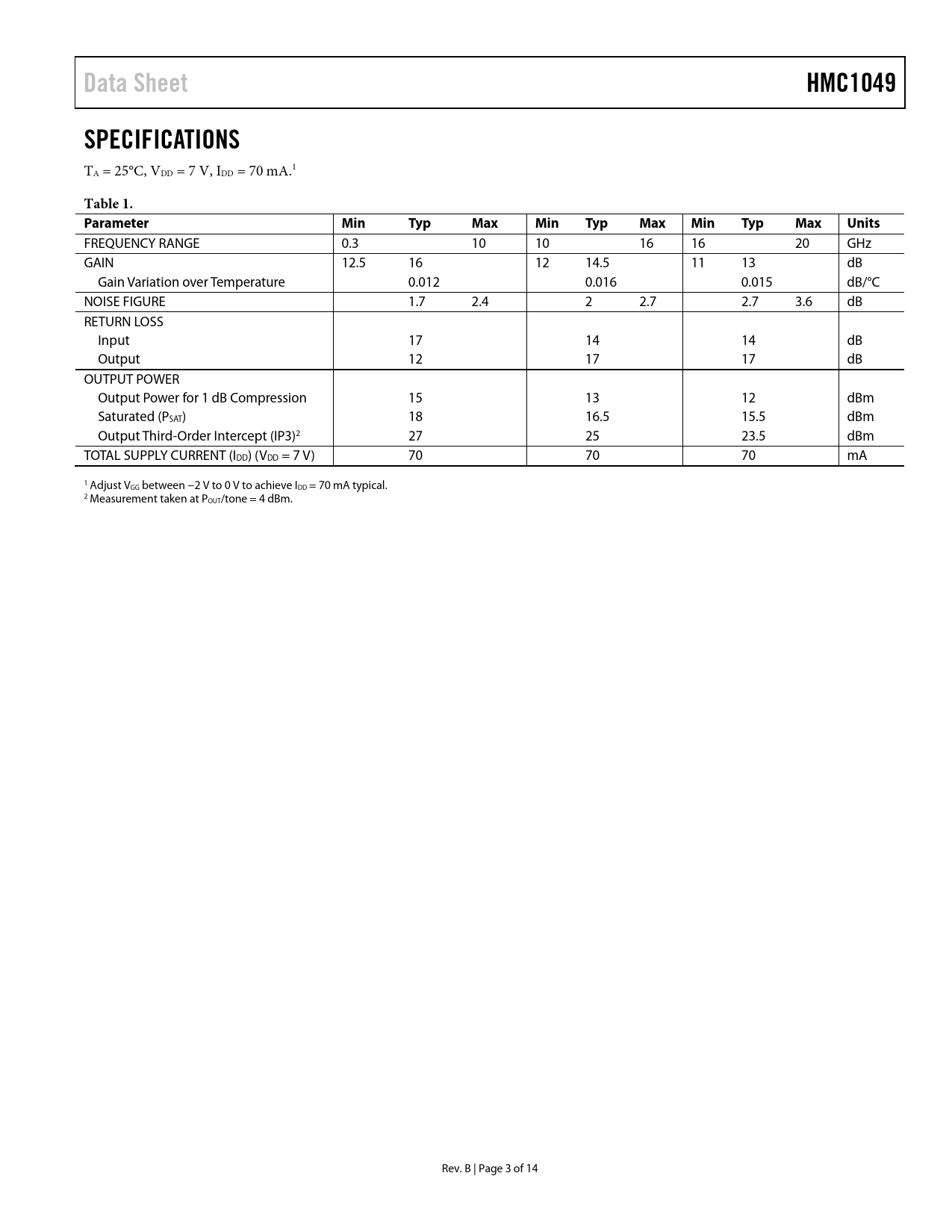

Data Sheet. HMC1049. SPECIFICATIONS. Table 1. Parameter. Min. Typ. Max. Units
Model Line for this Datasheet
Text Version of Document
Data Sheet HMC1049 SPECIFICATIONS
TA = 25°C, VDD = 7 V, IDD = 70 mA.1
Table 1. Parameter Min Typ Max Min Typ Max Min Typ Max Units
FREQUENCY RANGE 0.3 10 10 16 16 20 GHz GAIN 12.5 16 12 14.5 11 13 dB Gain Variation over Temperature 0.012 0.016 0.015 dB/°C NOISE FIGURE 1.7 2.4 2 2.7 2.7 3.6 dB RETURN LOSS Input 17 14 14 dB Output 12 17 17 dB OUTPUT POWER Output Power for 1 dB Compression 15 13 12 dBm Saturated (PSAT) 18 16.5 15.5 dBm Output Third-Order Intercept (IP3)2 27 25 23.5 dBm TOTAL SUPPLY CURRENT (IDD) (VDD = 7 V) 70 70 70 mA 1 Adjust VGG between −2 V to 0 V to achieve IDD = 70 mA typical. 2 Measurement taken at POUT/tone = 4 dBm. Rev. B | Page 3 of 14 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings ESD Caution PIN Configuration and Function Descriptions Interface Schematics Typical Performance Characteristics Application Circuit Assembly Diagram Mounting and Bonding Techniques for Millimeterwave GaAs MMICs Handling Precautions Storage Cleanliness Static Sensitivity Transients General Handling Mounting Eutectic Die Attach Epoxy Die Attach Wire Bonding Outline Dimensions Ordering Guide
TA = 25°C, VDD = 7 V, IDD = 70 mA.1
Table 1. Parameter Min Typ Max Min Typ Max Min Typ Max Units
FREQUENCY RANGE 0.3 10 10 16 16 20 GHz GAIN 12.5 16 12 14.5 11 13 dB Gain Variation over Temperature 0.012 0.016 0.015 dB/°C NOISE FIGURE 1.7 2.4 2 2.7 2.7 3.6 dB RETURN LOSS Input 17 14 14 dB Output 12 17 17 dB OUTPUT POWER Output Power for 1 dB Compression 15 13 12 dBm Saturated (PSAT) 18 16.5 15.5 dBm Output Third-Order Intercept (IP3)2 27 25 23.5 dBm TOTAL SUPPLY CURRENT (IDD) (VDD = 7 V) 70 70 70 mA 1 Adjust VGG between −2 V to 0 V to achieve IDD = 70 mA typical. 2 Measurement taken at POUT/tone = 4 dBm. Rev. B | Page 3 of 14 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings ESD Caution PIN Configuration and Function Descriptions Interface Schematics Typical Performance Characteristics Application Circuit Assembly Diagram Mounting and Bonding Techniques for Millimeterwave GaAs MMICs Handling Precautions Storage Cleanliness Static Sensitivity Transients General Handling Mounting Eutectic Die Attach Epoxy Die Attach Wire Bonding Outline Dimensions Ordering Guide
