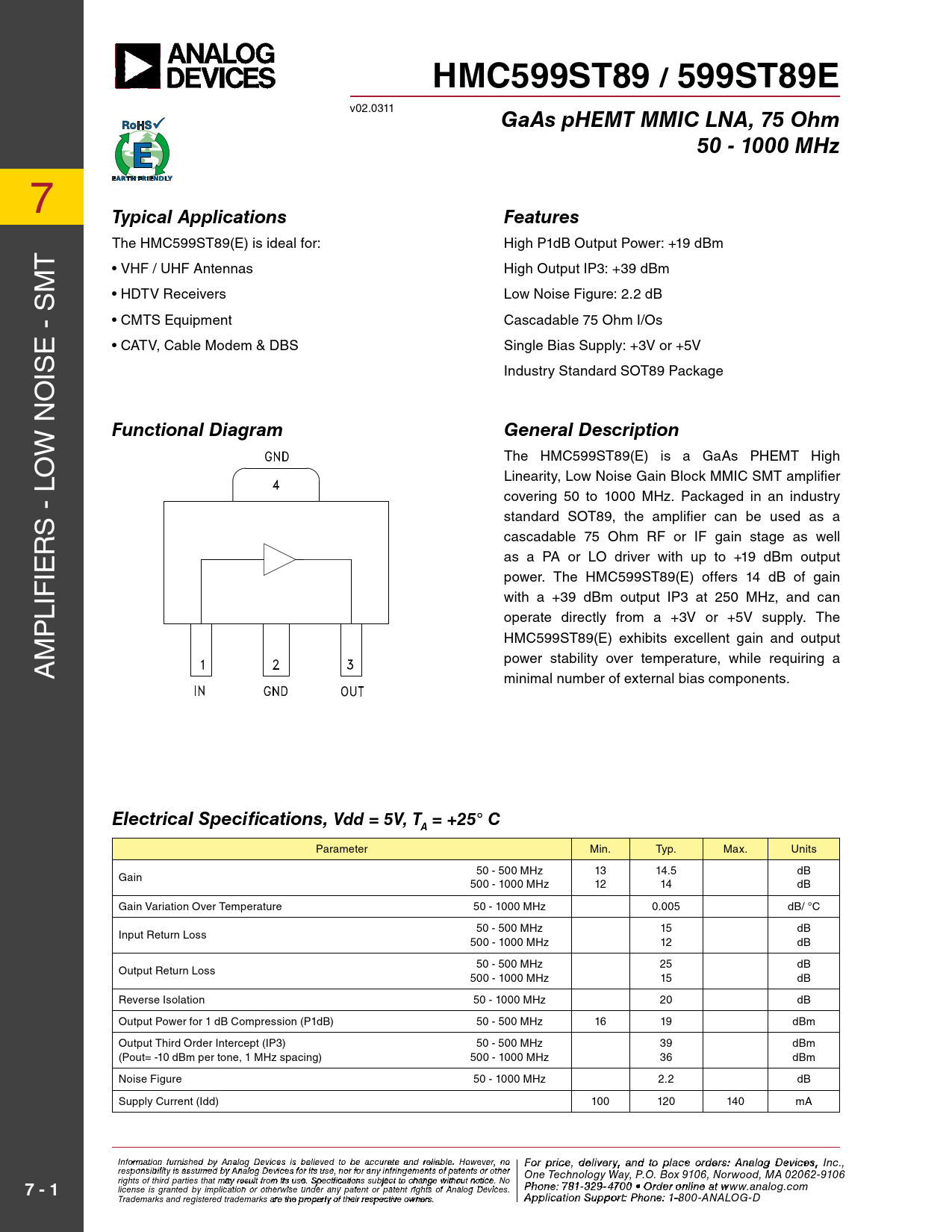

HMC599ST89 / 599ST89E
v02.0311
GaAs pHEMT MMIC LNA, 75 Ohm 50 - 1000 MHz
7
Typical Applications Features
The HmC599sT89(e) is ideal for: High p1dB output power: +19 dBm T m • VHF / UHF Antennas High output ip3: +39 dBm s • HDTV Receivers low Noise figure: 2.2 dB • CMTS Equipment Cascadable 75 ohm i/os e - • CATV, Cable Modem & DBS single Bias supply: +3V or +5V is industry standard soT89 package o
Functional Diagram General Description
w N The HmC599sT89(e) is a GaAs pHemT High lo linearity, low Noise Gain Block mmiC smT amplifier covering 50 to 1000 mHz. packaged in an industry s - standard soT89, the amplifier can be used as a r cascadable 75 ohm rf or if gain stage as well ie as a pA or lo driver with up to +19 dBm output power. The HmC599sT89(e) offers 14 dB of gain lif with a +39 dBm output ip3 at 250 mHz, and can p operate directly from a +3V or +5V supply. The m HmC599sT89(e) exhibits excel ent gain and output A power stability over temperature, while requiring a minimal number of external bias components.
Electrical Specifications, Vdd = 5V, T = +25° C A
parameter min. Typ. max. Units 50 - 500 mHz 13 14.5 dB Gain 500 - 1000 mHz 12 14 dB Gain Variation over Temperature 50 - 1000 mHz 0.005 dB/ °C 50 - 500 mHz 15 dB input return loss 500 - 1000 mHz 12 dB 50 - 500 mHz 25 dB output return loss 500 - 1000 mHz 15 dB reverse isolation 50 - 1000 mHz 20 dB output power for 1 dB Compression (p1dB) 50 - 500 mHz 16 19 dBm output Third order intercept (ip3) 50 - 500 mHz 39 dBm (pout= -10 dBm per tone, 1 mHz spacing) 500 - 1000 mHz 36 dBm Noise figure 50 - 1000 mHz 2.2 dB supply Current (idd) 100 120 140 mA Inf F or o m rat ip o r n ifc ur e n ,is hd e e d lbiv y e Anry alo a g n D d evi cto es ips la beclie ev eo d rtd o e b r e sa: ccH ur iattte itaen M d reliic a r bl o e w . H a o v weev eC r, o n r o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other poration, 20 Alpha Road, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 rights of third parties that may result from its use. Specifications subject to change without notice. No Or P d hoe n r e O : 7 n- 81-li 3 n 2 e 9- a 4 t 7 0 www 0 • O . rdh e itt r o it n e li . n co e a m
7 - 1
license is granted by implication or otherwise under any patent or patent rights of Analog Devices. t www.analog.com Application Support: Phon Trademarks and registered trademarks are the property of their respective owners. e: 978-250-334 A 3 p p liocra t ia o pp n S s u @ p h por ittti : Pte. ho c n o e m : 1-800-ANALOG-D
