Datasheet HMC519LC4 (Analog Devices)
| Manufacturer | Analog Devices |
| Description | GaAs PHEMT MMIC LOW NOISE AMPLIFIER, 18 - 31 GHz |
| Pages / Page | 6 / 1 — HMC519LC4. Gaas PHEMT MMIC LOW NOIsE. aMPLIFIER, 18 - 31 GHz. Typical … |
| File Format / Size | PDF / 1.6 Mb |
| Document Language | English |

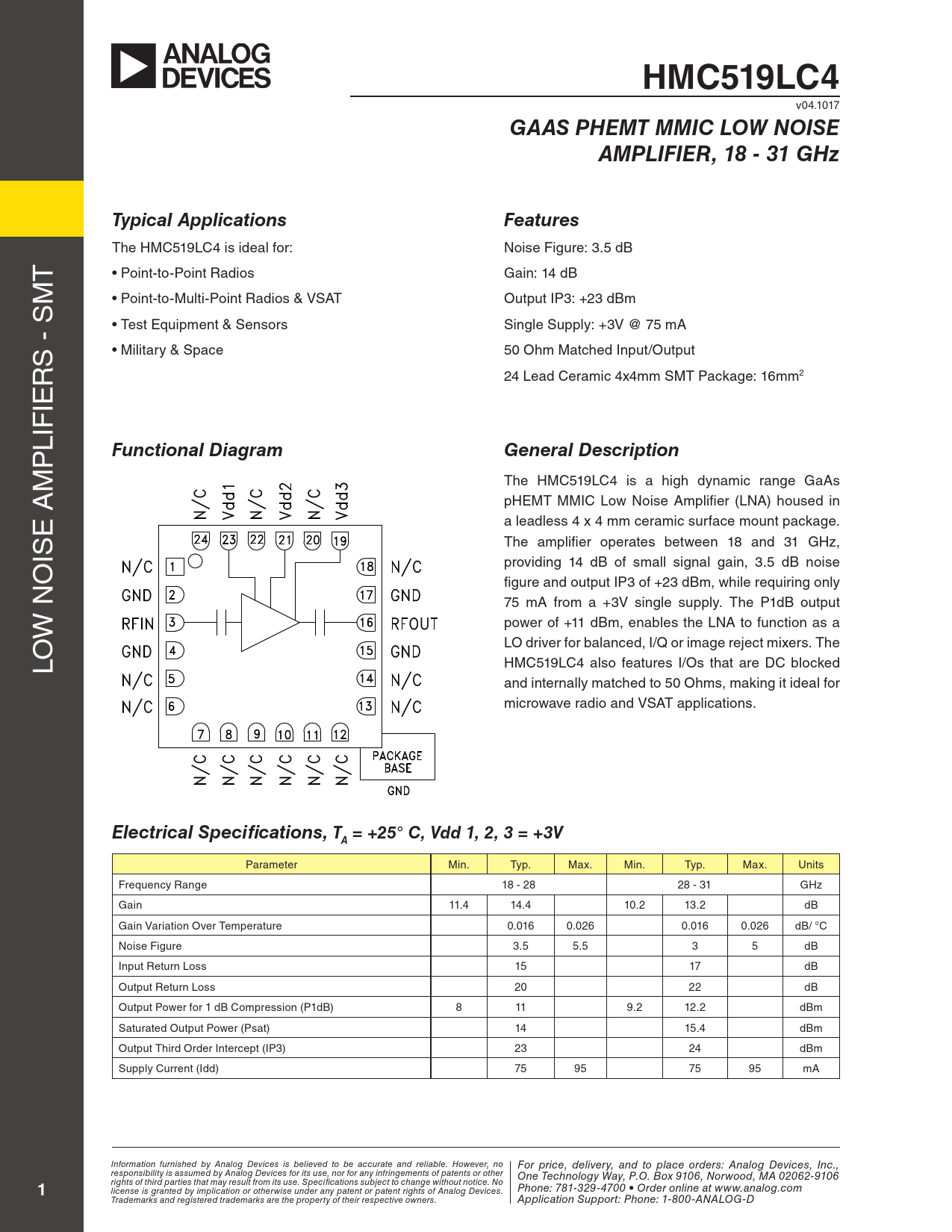

HMC519LC4. Gaas PHEMT MMIC LOW NOIsE. aMPLIFIER, 18 - 31 GHz. Typical applications. Features. Functional Diagram
Model Line for this Datasheet
Text Version of Document
HMC519LC4
v04.1017
Gaas PHEMT MMIC LOW NOIsE aMPLIFIER, 18 - 31 GHz Typical applications Features
The HMC519LC4 is ideal for: Noise Figure: 3.5 dB T • Point-to-Point Radios Gain: 14 dB M • Point-to-Multi-Point Radios & VSAT Output IP3: +23 dBm • Test Equipment & Sensors Single Supply: +3V @ 75 mA S - S • Military & Space 50 Ohm Matched Input/Output R 24 Lead Ceramic 4x4mm SMT Package: 16mm2 IE LIF P
Functional Diagram General Description
M The HMC519LC4 is a high dynamic range GaAs pHEMT MMIC Low Noise Amplifier (LNA) housed in E A a leadless 4 x 4 mm ceramic surface mount package. IS The amplifier operates between 18 and 31 GHz, O providing 14 dB of small signal gain, 3.5 dB noise figure and output IP3 of +23 dBm, while requiring only 75 mA from a +3V single supply. The P1dB output W N power of +11 dBm, enables the LNA to function as a LO driver for balanced, I/Q or image reject mixers. The LO HMC519LC4 also features I/Os that are DC blocked and internal y matched to 50 Ohms, making it ideal for microwave radio and VSAT applications.
Electrical specifications, T = +25° C, Vdd 1, 2, 3 = +3V a
Parameter Min. Typ. Max. Min. Typ. Max. Units Frequency Range 18 - 28 28 - 31 GHz Gain 11.4 14.4 10.2 13.2 dB Gain Variation Over Temperature 0.016 0.026 0.016 0.026 dB/ °C Noise Figure 3.5 5.5 3 5 dB Input Return Loss 15 17 dB Output Return Loss 20 22 dB Output Power for 1 dB Compression (P1dB) 8 11 9.2 12.2 dBm Saturated Output Power (Psat) 14 15.4 dBm Output Third Order Intercept (IP3) 23 24 dBm Supply Current (Idd) 75 95 75 95 mA Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D
