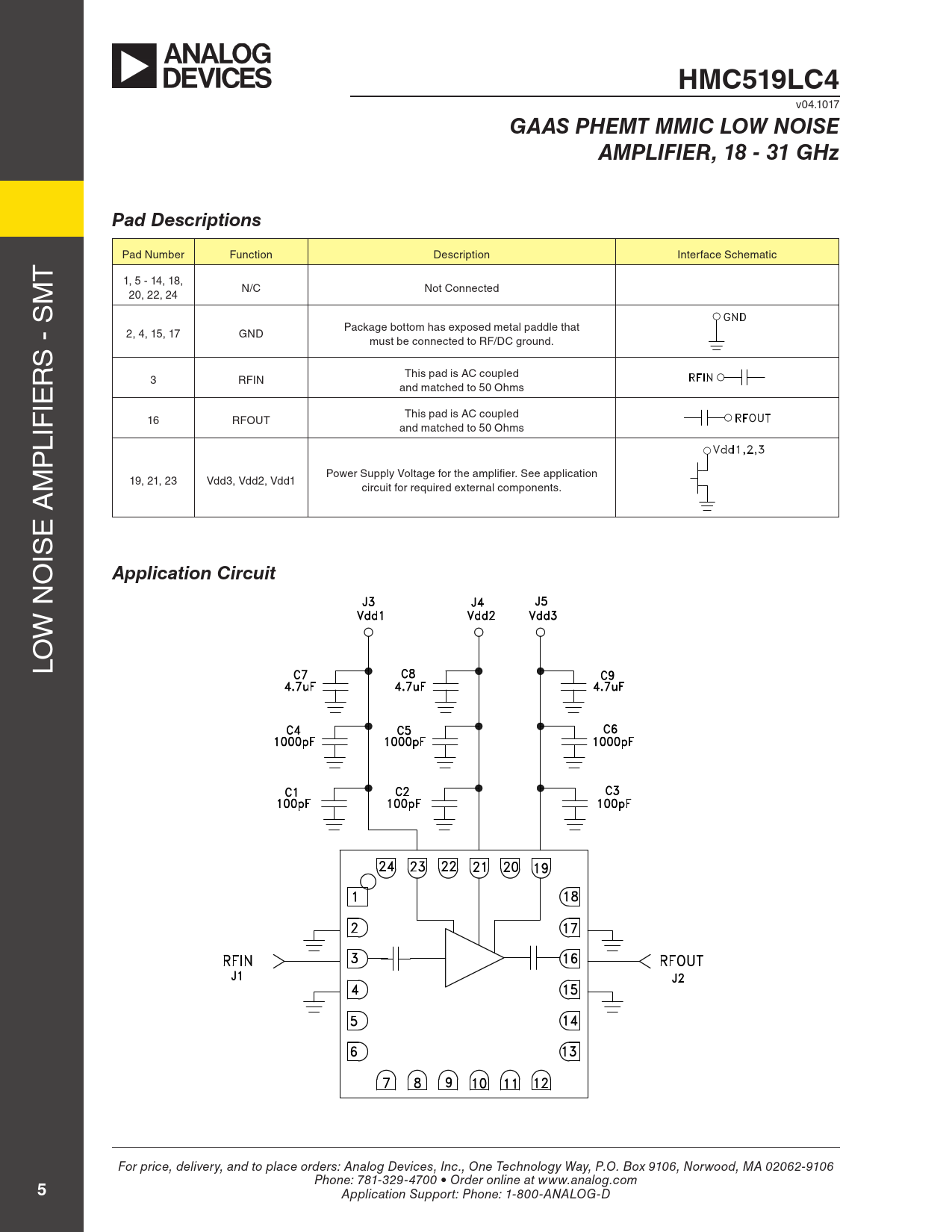

HMC519LC4
v04.1017
Gaas PHEMT MMIC LOW NOIsE aMPLIFIER, 18 - 31 GHz Pad Descriptions
Pad Number Function Description Interface Schematic T M 1, 5 - 14, 18, N/C Not Connected 20, 22, 24 Package bottom has exposed metal paddle that 2, 4, 15, 17 GND must be connected to RF/DC ground. S - S R This pad is AC coupled 3 RFIN IE and matched to 50 Ohms This pad is AC coupled 16 RFOUT LIF and matched to 50 Ohms P M Power Supply Voltage for the amplifier. See application 19, 21, 23 Vdd3, Vdd2, Vdd1 circuit for required external components. E A IS O
application Circuit
