Datasheet ADPA9002 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | GaAs, pHEMT, MMIC, Single Positive Supply, DC to 10 GHz Power Amplifier |
| Pages / Page | 19 / 4 — ADPA9002. Data Sheet. 5 GHz TO 10 GHz. Table 3. Parameter. Symbol. Min. … |
| File Format / Size | PDF / 319 Kb |
| Document Language | English |

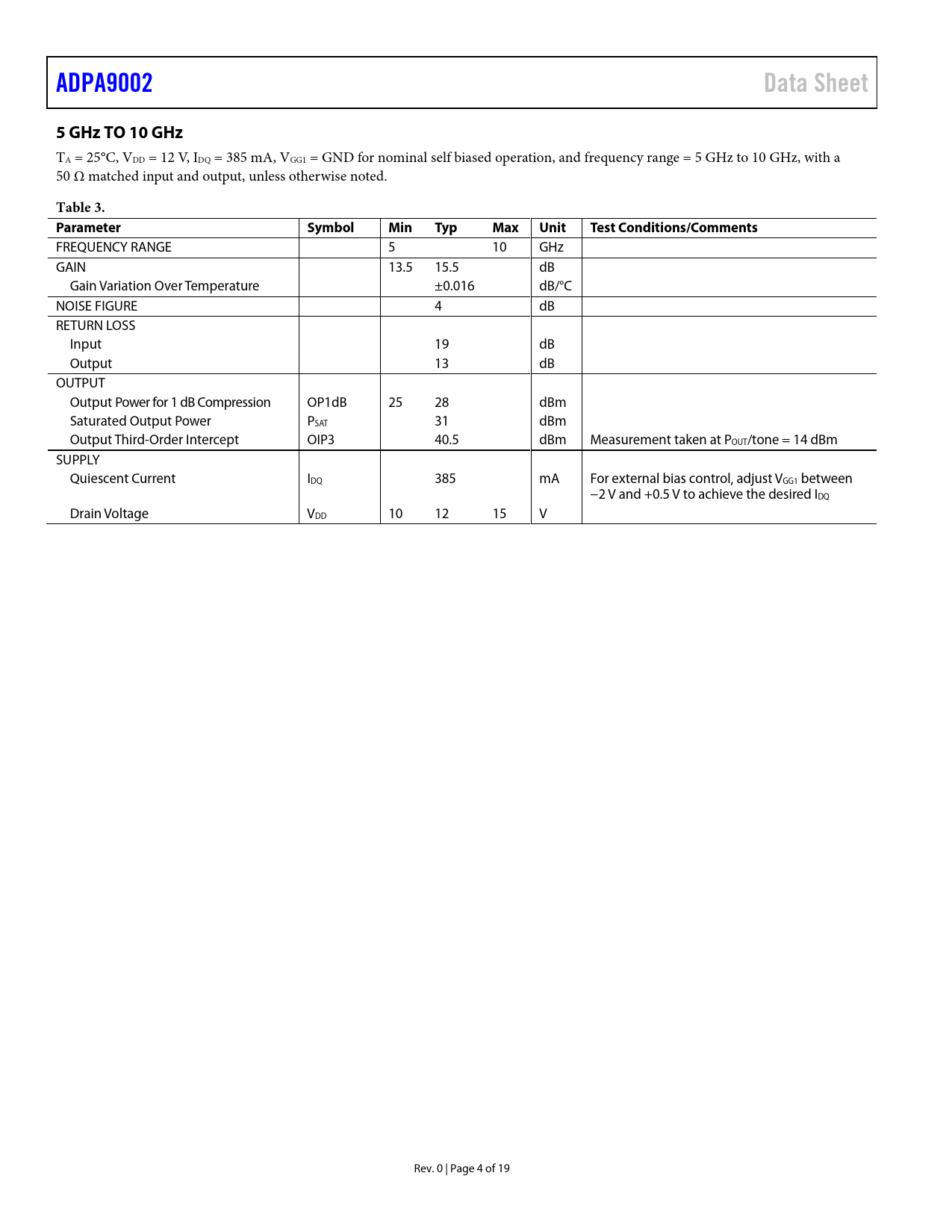

ADPA9002. Data Sheet. 5 GHz TO 10 GHz. Table 3. Parameter. Symbol. Min. Typ. Max. Unit. Test Conditions/Comments
Model Line for this Datasheet
Text Version of Document
ADPA9002 Data Sheet 5 GHz TO 10 GHz
TA = 25°C, VDD = 12 V, IDQ = 385 mA, VGG1 = GND for nominal self biased operation, and frequency range = 5 GHz to 10 GHz, with a 50 Ω matched input and output, unless otherwise noted.
Table 3. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
FREQUENCY RANGE 5 10 GHz GAIN 13.5 15.5 dB Gain Variation Over Temperature ±0.016 dB/°C NOISE FIGURE 4 dB RETURN LOSS Input 19 dB Output 13 dB OUTPUT Output Power for 1 dB Compression OP1dB 25 28 dBm Saturated Output Power PSAT 31 dBm Output Third-Order Intercept OIP3 40.5 dBm Measurement taken at POUT/tone = 14 dBm SUPPLY Quiescent Current IDQ 385 mA For external bias control, adjust VGG1 between −2 V and +0.5 V to achieve the desired IDQ Drain Voltage VDD 10 12 15 V Rev. 0 | Page 4 of 19 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DC TO 2 GHz 2 GHz TO 5 GHz 5 GHz TO 10 GHz ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS CONSTANT IDD OPERATION THEORY OF OPERATION APPLICATIONS INFORMATION TYPICAL APPLICATION CIRCUIT OUTLINE DIMENSIONS ORDERING GUIDE
