| Manufacturer | Analog Devices |
| Description | InGaP HBT ½ Watt High IP3 AMPLIFIER, 1.7 - 2.5 GHz |
| Pages / Page | 6 / 5 — HMC455LP3 / 455LP3E. InGaP HBT ½ Watt High IP3. AMPLIFIER, 1.7 - 2.5 GHz. … |
| File Format / Size | PDF / 376 Kb |
| Document Language | English |

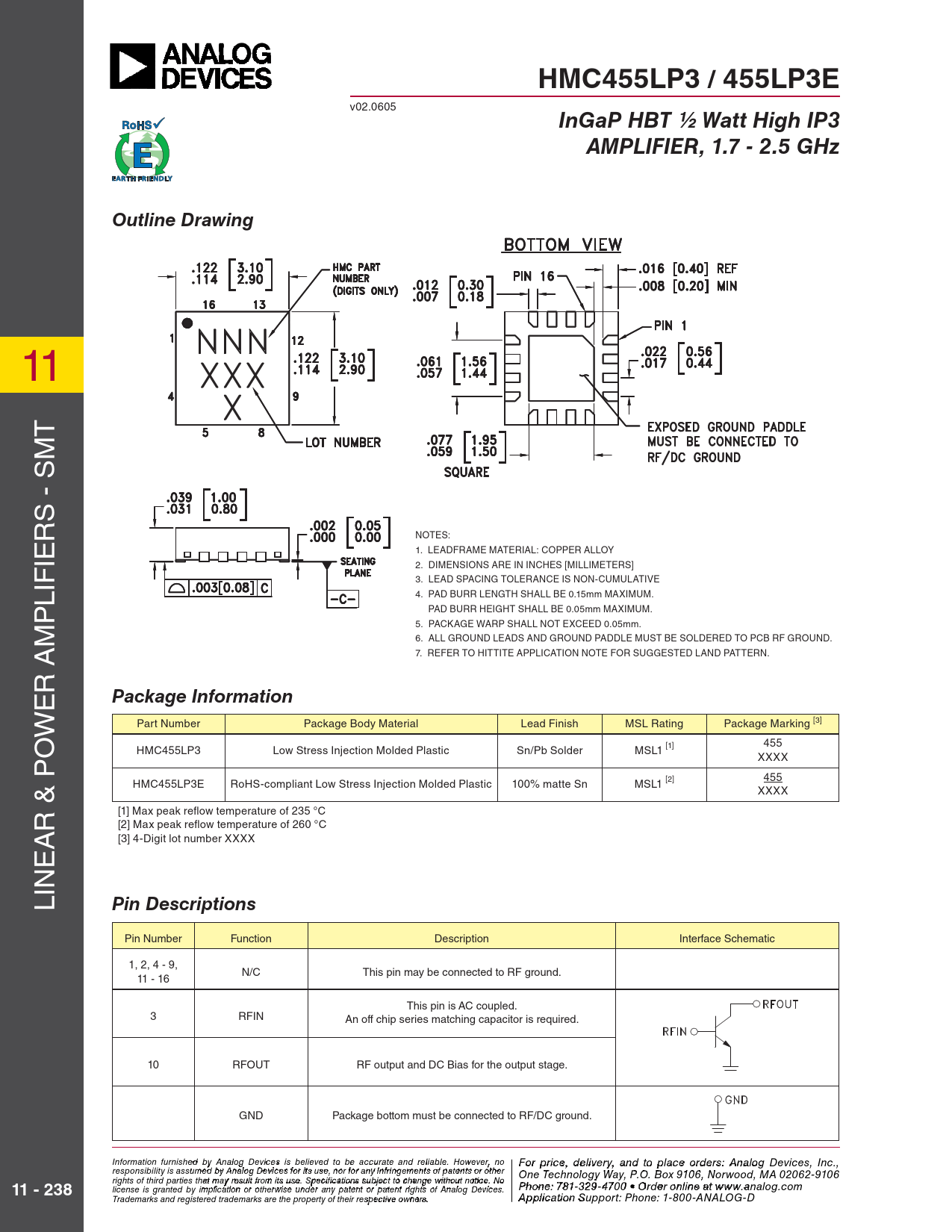

HMC455LP3 / 455LP3E. InGaP HBT ½ Watt High IP3. AMPLIFIER, 1.7 - 2.5 GHz. Outline Drawing. Package Information. Pin Descriptions
Model Line for this Datasheet
Text Version of Document
HMC455LP3 / 455LP3E
v02.0605
InGaP HBT ½ Watt High IP3 AMPLIFIER, 1.7 - 2.5 GHz Outline Drawing
11 T - SM S R NOTES: IE 1. LEADFRAME MATERIAL: COPPER ALLOY 2. DIMENSIONS ARE IN INCHES [MILLIMETERS] IF 3. LEAD SPACING TOLERANCE IS NON-CUMULATIVE L 4. PAD BURR LENGTH SHALL BE 0.15mm MAXIMUM. P PAD BURR HEIGHT SHALL BE 0.05mm MAXIMUM. 5. PACKAGE WARP SHALL NOT EXCEED 0.05mm. M 6. ALL GROUND LEADS AND GROUND PADDLE MUST BE SOLDERED TO PCB RF GROUND. 7. REFER TO HITTITE APPLICATION NOTE FOR SUGGESTED LAND PATTERN. R A E
Package Information
W Part Number Package Body Material Lead Finish MSL Rating Package Marking [3] O [1] 455 HMC455LP3 Low Stress Injection Molded Plastic Sn/Pb Solder MSL1 XXXX [2] 455 HMC455LP3E RoHS-compliant Low Stress Injection Molded Plastic 100% matte Sn MSL1 & P XXXX [1] Max peak refl ow temperature of 235 °C R [2] Max peak refl ow temperature of 260 °C A [3] 4-Digit lot number XXXX E IN L
Pin Descriptions
Pin Number Function Description Interface Schematic 1, 2, 4 - 9, N/C This pin may be connected to RF ground. 11 - 16 This pin is AC coupled. 3 RFIN An off chip series matching capacitor is required. 10 RFOUT RF output and DC Bias for the output stage. GND Package bottom must be connected to RF/DC ground. Information furnish F e o d r pri by An ce, de alog Devic leis vie s rbyeli, a eve nd to pla d to be accur ce o ate an r d der relia s ble , pl . Ho ease co wever, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other ntact Hittite Microwave Corporation: One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 20 Alpha Road, Chelmsford, MA 01824 Phone rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. : 978 Phon -e25 : 7 0 81 -3 3 3 29 4 - 3 F 470 ax 0 • O : 978 rder o - nl 25 in 0 e a - t 33 ww 73
