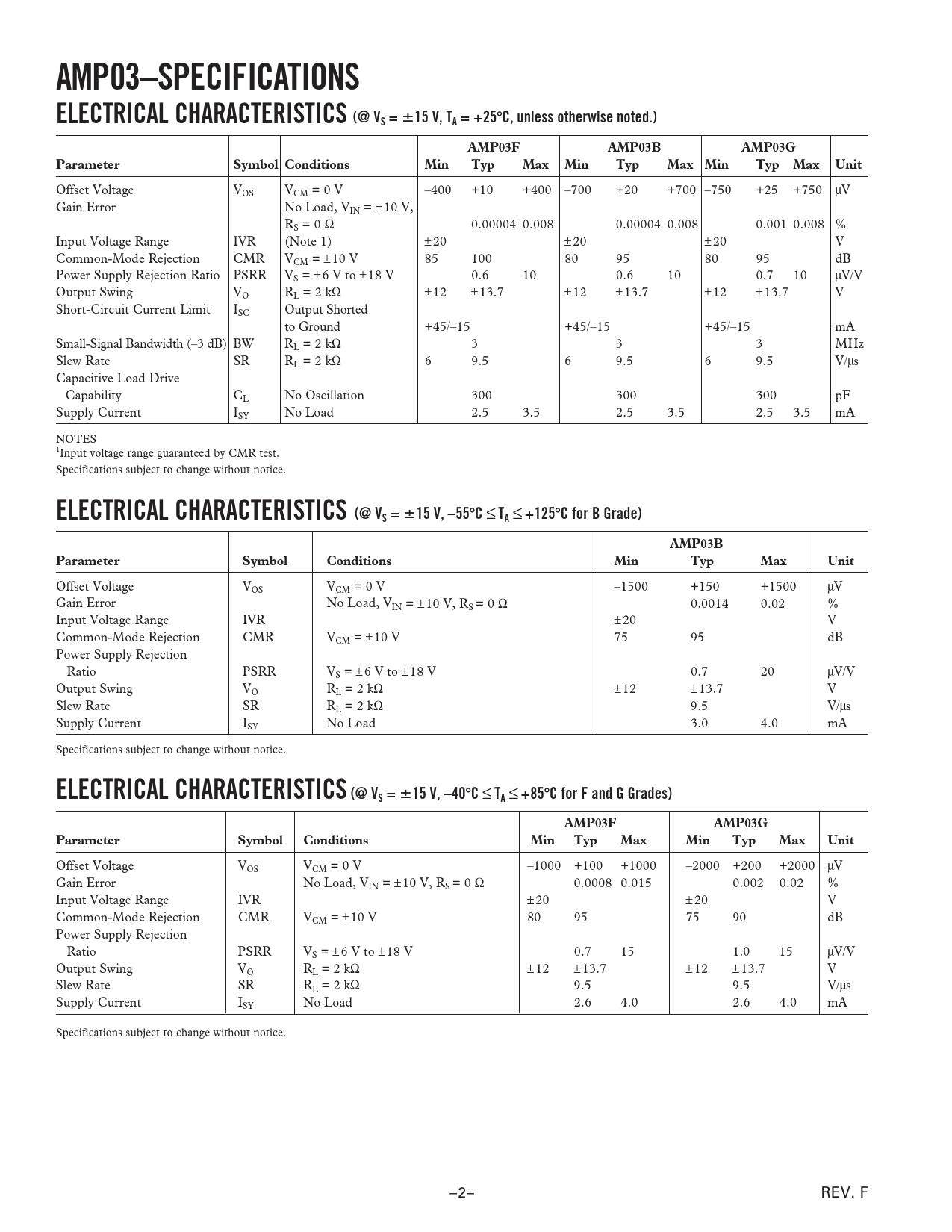

AMP03–SPECIFICATIONS ELECTRICAL CHARACTERISTICS (@ VS =
ⴞ
15 V, TA = +25
ⴗ
C, unless otherwise noted.) AMP03F AMP03B AMP03G Parameter Symbol Conditions Min Typ Max Min Typ Max Min Typ Max Unit
Offset Voltage VOS VCM = 0 V –400 +10 +400 –700 +20 +700 –750 +25 +750 µV Gain Error No Load, VIN = ± 10 V, RS = 0 Ω 0.00004 0.008 0.00004 0.008 0.001 0.008 % Input Voltage Range IVR (Note 1) ±20 ±20 ±20 V Common-Mode Rejection CMR VCM = ± 10 V 85 100 80 95 80 95 dB Power Supply Rejection Ratio PSRR VS = ± 6 V to ± 18 V 0.6 10 0.6 10 0.7 10 µV/V Output Swing VO RL = 2 kΩ ±12 ±13.7 ±12 ±13.7 ±12 ±13.7 V Short-Circuit Current Limit ISC Output Shorted to Ground +45/–15 +45/–15 +45/–15 mA Small-Signal Bandwidth (–3 dB) BW RL = 2 kΩ 3 3 3 MHz Slew Rate SR RL = 2 kΩ 6 9.5 6 9.5 6 9.5 V/µs Capacitive Load Drive Capability CL No Oscillation 300 300 300 pF Supply Current ISY No Load 2.5 3.5 2.5 3.5 2.5 3.5 mA NOTES 1Input voltage range guaranteed by CMR test. Specifications subject to change without notice.
ELECTRICAL CHARACTERISTICS (@ VS =
ⴞ
15 V, –55
ⴗ
C
≤
TA
≤
+125
ⴗ
C for B Grade) AMP03B Parameter Symbol Conditions Min Typ Max Unit
Offset Voltage VOS VCM = 0 V –1500 +150 +1500 µV Gain Error No Load, VIN = ± 10 V, RS = 0 Ω 0.0014 0.02 % Input Voltage Range IVR ±20 V Common-Mode Rejection CMR VCM = ± 10 V 75 95 dB Power Supply Rejection Ratio PSRR VS = ± 6 V to ± 18 V 0.7 20 µV/V Output Swing VO RL = 2 kΩ ±12 ±13.7 V Slew Rate SR RL = 2 kΩ 9.5 V/µs Supply Current ISY No Load 3.0 4.0 mA Specifications subject to change without notice.
ELECTRICAL CHARACTERISTICS (@ VS =
ⴞ
15 V, –40
ⴗ
C
≤
TA
≤
+85
ⴗ
C for F and G Grades) AMP03F AMP03G Parameter Symbol Conditions Min Typ Max Min Typ Max Unit
Offset Voltage VOS VCM = 0 V –1000 +100 +1000 –2000 +200 +2000 µV Gain Error No Load, VIN = ± 10 V, RS = 0 Ω 0.0008 0.015 0.002 0.02 % Input Voltage Range IVR ±20 ±20 V Common-Mode Rejection CMR VCM = ± 10 V 80 95 75 90 dB Power Supply Rejection Ratio PSRR VS = ± 6 V to ± 18 V 0.7 15 1.0 15 µV/V Output Swing VO RL = 2 kΩ ±12 ±13.7 ±12 ±13.7 V Slew Rate SR RL = 2 kΩ 9.5 9.5 V/µs Supply Current ISY No Load 2.6 4.0 2.6 4.0 mA Specifications subject to change without notice. –2– REV. F Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PIN CONNECTIONS SPECIFICATIONS WAFER TEST LIMITS ABSOLUTE MAXIMUM RATINGS ORDERING GUIDE DICE CHARACTERISTICS BURN-IN CIRCUIT SLEW RATE TEST CIRCUIT Typical Performance Characteristics APPLICATION CIRCUITS APPLICATIONS INFORMATION MAINTAINING COMMON-MODE REJECTION OUTLINE DIMENSIONS Revision History
