Datasheet MLX90392 (Melexis) - 8
| Manufacturer | Melexis |
| Description | 3D Magnetometer |
| Pages / Page | 40 / 8 — MLX90392. 6.2.4. I2C Timings Conditions. I2C Standard Mode. I2C Fast Mode … |
| File Format / Size | PDF / 2.8 Mb |
| Document Language | English |
MLX90392. 6.2.4. I2C Timings Conditions. I2C Standard Mode. I2C Fast Mode Plus. Electrical Parameter. Symbol. Unit
Model Line for this Datasheet
Text Version of Document
MLX90392
3D Magnetometer
6.2.4. I2C Timings Conditions I2C Standard Mode I2C Fast Mode Plus Electrical Parameter Symbol Unit

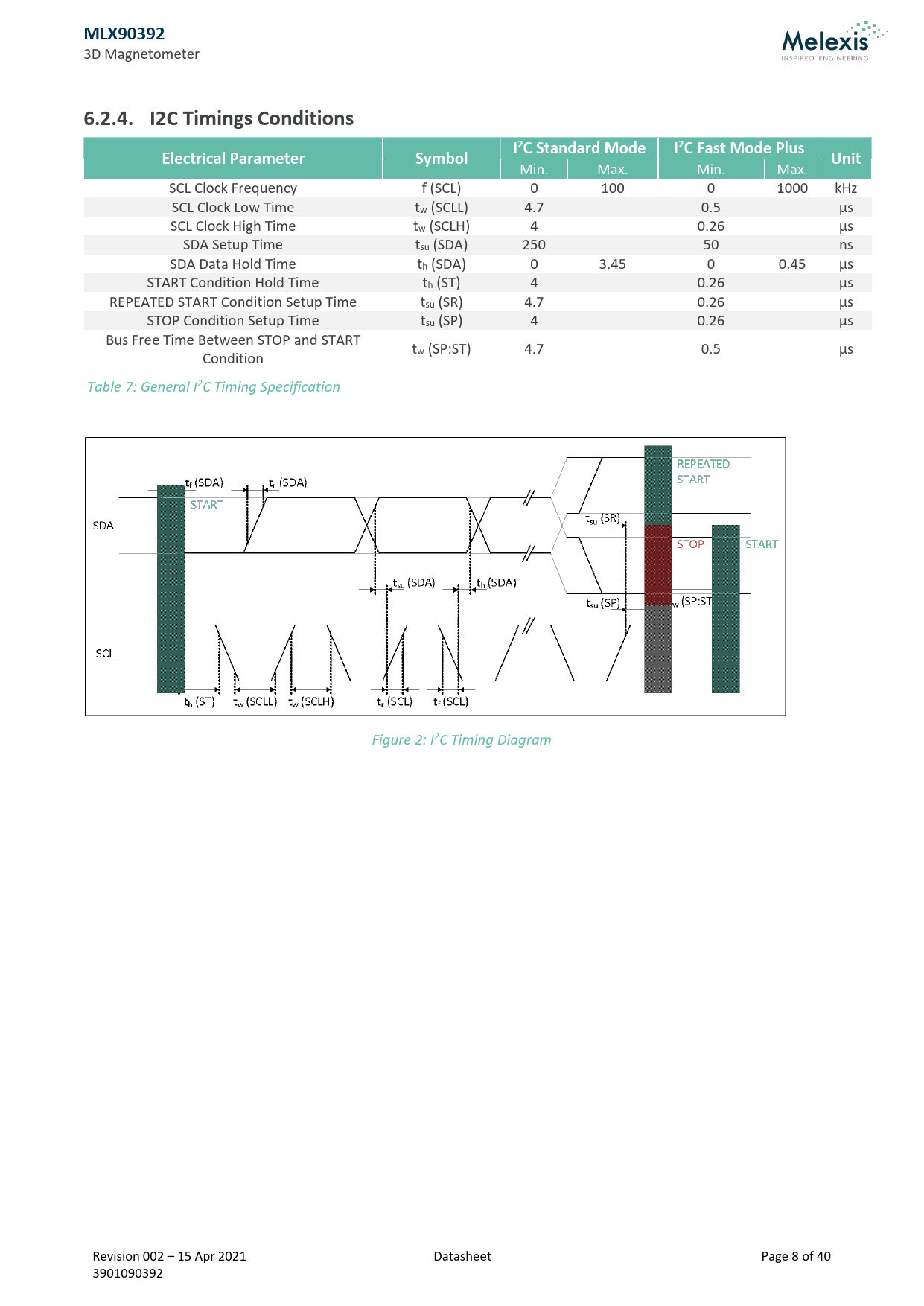

Min. Max. Min. Max. SCL Clock Frequency f (SCL) 0 100 0 1000 kHz SCL Clock Low Time tw (SCLL) 4.7 0.5 µs SCL Clock High Time tw (SCLH) 4 0.26 µs SDA Setup Time tsu (SDA) 250 50 ns SDA Data Hold Time th (SDA) 0 3.45 0 0.45 µs START Condition Hold Time th (ST) 4 0.26 µs REPEATED START Condition Setup Time tsu (SR) 4.7 0.26 µs STOP Condition Setup Time tsu (SP) 4 0.26 µs Bus Free Time Between STOP and START t Condition w (SP:ST) 4.7 0.5 µs Table 7: General I2C Timing Specification Figure 2: I2C Timing Diagram Revision 002 – 15 Apr 2021 Datasheet Page 8 of 40 3901090392
