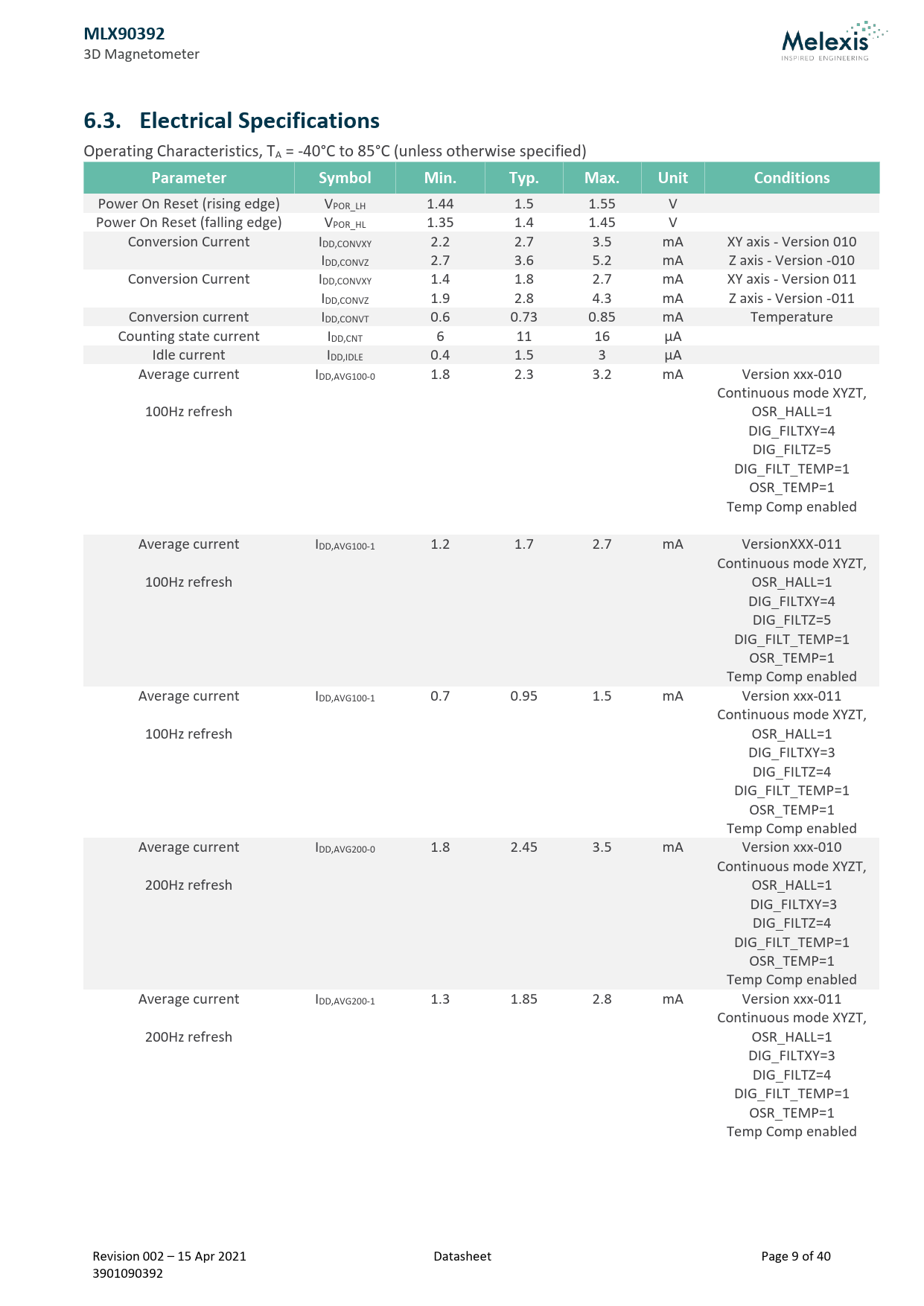

MLX90392. 6.3. Electrical Specifications. Parameter. Symbol. Min. Typ. Max. Unit. Conditions
Model Line for this Datasheet
Text Version of Document
MLX90392
3D Magnetometer
6.3. Electrical Specifications
Operating Characteristics, TA = -40°C to 85°C (unless otherwise specified)
Parameter Symbol Min. Typ. Max. Unit Conditions
Power On Reset (rising edge) VPOR_LH 1.44 1.5 1.55 V Power On Reset (falling edge) VPOR_HL 1.35 1.4 1.45 V Conversion Current IDD,CONVXY 2.2 2.7 3.5 mA XY axis - Version 010 IDD,CONVZ 2.7 3.6 5.2 mA Z axis - Version -010 Conversion Current IDD,CONVXY 1.4 1.8 2.7 mA XY axis - Version 011 IDD,CONVZ 1.9 2.8 4.3 mA Z axis - Version -011 Conversion current IDD,CONVT 0.6 0.73 0.85 mA Temperature Counting state current IDD,CNT 6 11 16 µA Idle current IDD,IDLE 0.4 1.5 3 µA Average current IDD,AVG100-0 1.8 2.3 3.2 mA Version xxx-010 Continuous mode XYZT, 100Hz refresh OSR_HALL=1 DIG_FILTXY=4 DIG_FILTZ=5 DIG_FILT_TEMP=1 OSR_TEMP=1 Temp Comp enabled Average current IDD,AVG100-1 1.2 1.7 2.7 mA VersionXXX-011 Continuous mode XYZT, 100Hz refresh OSR_HALL=1 DIG_FILTXY=4 DIG_FILTZ=5 DIG_FILT_TEMP=1 OSR_TEMP=1 Temp Comp enabled Average current IDD,AVG100-1 0.7 0.95 1.5 mA Version xxx-011 Continuous mode XYZT, 100Hz refresh OSR_HALL=1 DIG_FILTXY=3 DIG_FILTZ=4 DIG_FILT_TEMP=1 OSR_TEMP=1 Temp Comp enabled Average current IDD,AVG200-0 1.8 2.45 3.5 mA Version xxx-010 Continuous mode XYZT, 200Hz refresh OSR_HALL=1 DIG_FILTXY=3 DIG_FILTZ=4 DIG_FILT_TEMP=1 OSR_TEMP=1 Temp Comp enabled Average current IDD,AVG200-1 1.3 1.85 2.8 mA Version xxx-011 Continuous mode XYZT, 200Hz refresh OSR_HALL=1 DIG_FILTXY=3 DIG_FILTZ=4 DIG_FILT_TEMP=1 OSR_TEMP=1 Temp Comp enabled Revision 002 – 15 Apr 2021 Datasheet Page 9 of 40 3901090392
