Datasheet ADG5236 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | High Voltage Latch-Up Proof, Dual SPDT Switches |
| Pages / Page | 20 / 7 — Data Sheet. ADG5236. Parameter. 25°C. −40°C to +85°C −40°C to +125°C … |
| Revision | B |
| File Format / Size | PDF / 398 Kb |
| Document Language | English |

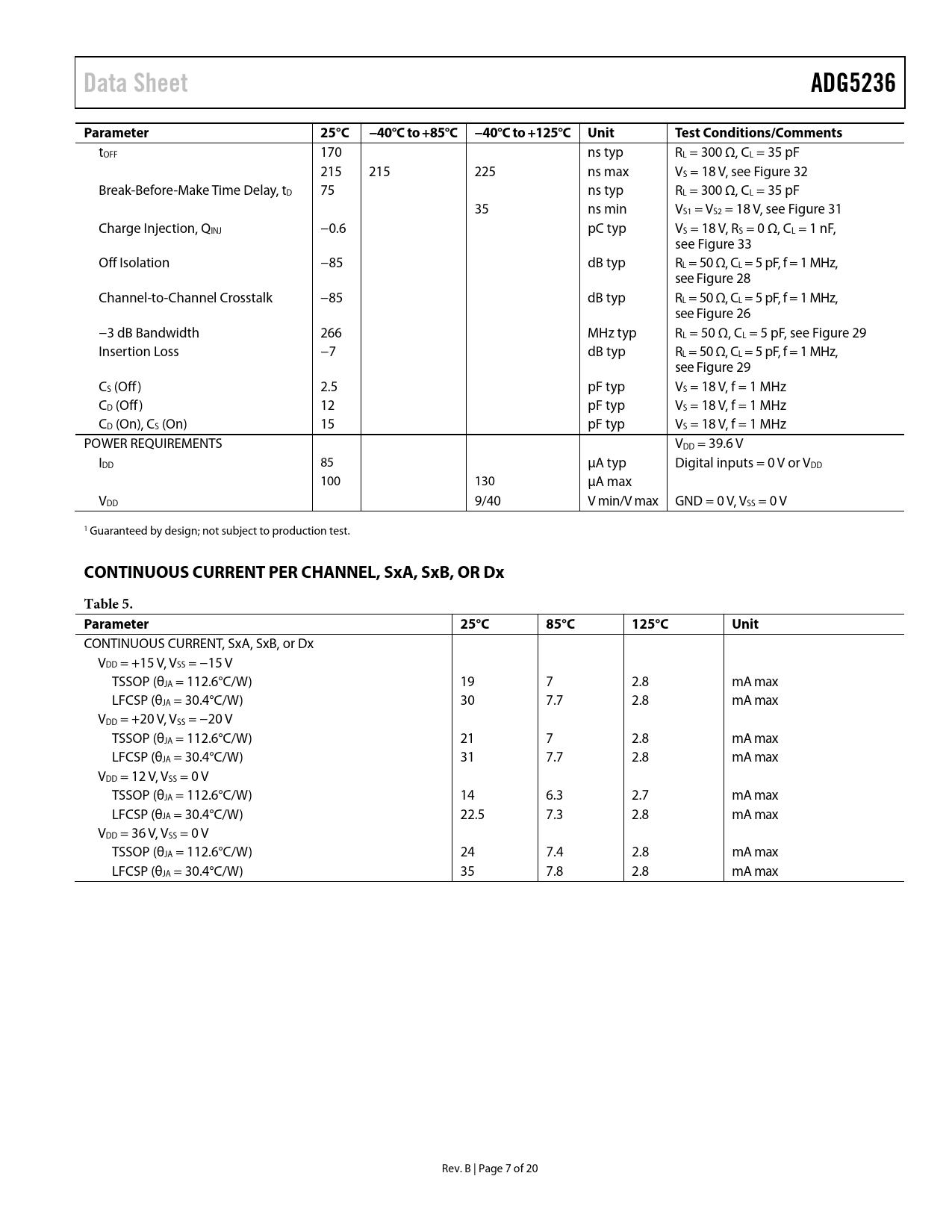

Data Sheet. ADG5236. Parameter. 25°C. −40°C to +85°C −40°C to +125°C Unit. Test Conditions/Comments
Model Line for this Datasheet
Text Version of Document
link to page 15 link to page 15 link to page 15 link to page 14 link to page 14 link to page 14 link to page 14
Data Sheet ADG5236 Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
tOFF 170 ns typ RL = 300 Ω, CL = 35 pF 215 215 225 ns max VS = 18 V, see Figure 32 Break-Before-Make Time Delay, tD 75 ns typ RL = 300 Ω, CL = 35 pF 35 ns min VS1 = VS2 = 18 V, see Figure 31 Charge Injection, QINJ −0.6 pC typ VS = 18 V, RS = 0 Ω, CL = 1 nF, see Figure 33 Off Isolation −85 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 28 Channel-to-Channel Crosstalk −85 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 26 −3 dB Bandwidth 266 MHz typ RL = 50 Ω, CL = 5 pF, see Figure 29 Insertion Loss −7 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 29 CS (Off) 2.5 pF typ VS = 18 V, f = 1 MHz CD (Off) 12 pF typ VS = 18 V, f = 1 MHz CD (On), CS (On) 15 pF typ VS = 18 V, f = 1 MHz POWER REQUIREMENTS VDD = 39.6 V IDD 85 µA typ Digital inputs = 0 V or VDD 100 130 µA max VDD 9/40 V min/V max GND = 0 V, VSS = 0 V 1 Guaranteed by design; not subject to production test.
CONTINUOUS CURRENT PER CHANNEL, SxA, SxB, OR Dx Table 5. Parameter 25°C 85°C 125°C Unit
CONTINUOUS CURRENT, SxA, SxB, or Dx VDD = +15 V, VSS = −15 V TSSOP (θJA = 112.6°C/W) 19 7 2.8 mA max LFCSP (θJA = 30.4°C/W) 30 7.7 2.8 mA max VDD = +20 V, VSS = −20 V TSSOP (θJA = 112.6°C/W) 21 7 2.8 mA max LFCSP (θJA = 30.4°C/W) 31 7.7 2.8 mA max VDD = 12 V, VSS = 0 V TSSOP (θJA = 112.6°C/W) 14 6.3 2.7 mA max LFCSP (θJA = 30.4°C/W) 22.5 7.3 2.8 mA max VDD = 36 V, VSS = 0 V TSSOP (θJA = 112.6°C/W) 24 7.4 2.8 mA max LFCSP (θJA = 30.4°C/W) 35 7.8 2.8 mA max Rev. B | Page 7 of 20 Document Outline Features Applications Functional Block Diagrams General Description Product Highlights Revision History Specifications ±15 V Dual Supply ±20 V Dual Supply 12 V Single Supply 36 V Single Supply Continuous Current per Channel, SxA, SxB, or Dx Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Truth Tables for Switches Typical Performance Characteristics Test Circuits Terminology Trench Isolation Applications Information Outline Dimensions Ordering Guide
