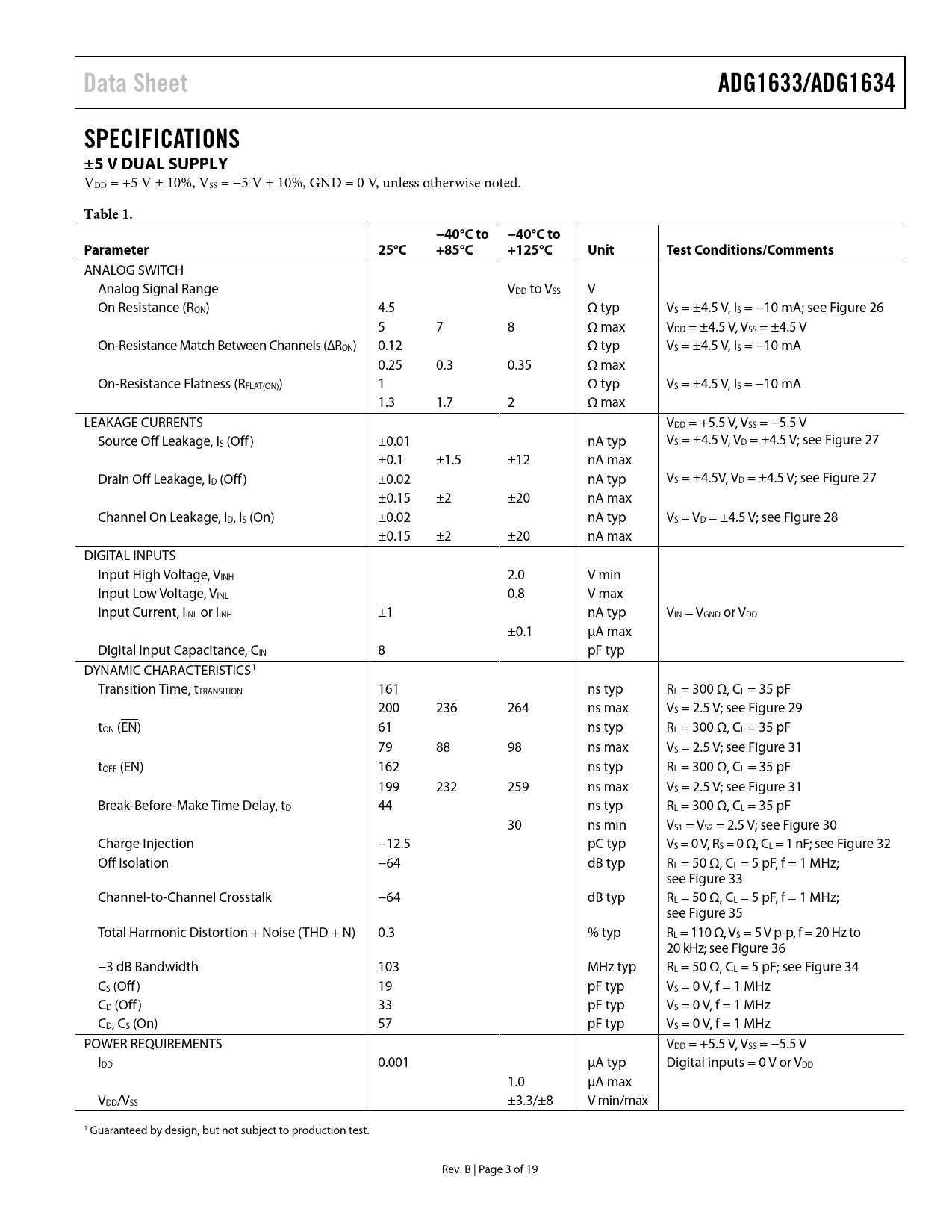

Data Sheet. ADG1633/ADG1634. SPECIFICATIONS ±5 V DUAL SUPPLY. Table 1. −40°C to −40°C to. Parameter. 25°C. +85°C. +125°C. Unit
Model Line for this Datasheet
Text Version of Document
link to page 14 link to page 14 link to page 14 link to page 14 link to page 14 link to page 14 link to page 14 link to page 14 link to page 15 link to page 15 link to page 15 link to page 15 link to page 15
Data Sheet ADG1633/ADG1634 SPECIFICATIONS ±5 V DUAL SUPPLY
VDD = +5 V ± 10%, VSS = −5 V ± 10%, GND = 0 V, unless otherwise noted.
Table 1. −40°C to −40°C to Parameter 25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VDD to VSS V On Resistance (RON) 4.5 Ω typ VS = ±4.5 V, IS = −10 mA; see Figure 26 5 7 8 Ω max VDD = ±4.5 V, VSS = ±4.5 V On-Resistance Match Between Channels (∆RON) 0.12 Ω typ VS = ±4.5 V, IS = −10 mA 0.25 0.3 0.35 Ω max On-Resistance Flatness (RFLAT(ON)) 1 Ω typ VS = ±4.5 V, IS = −10 mA 1.3 1.7 2 Ω max LEAKAGE CURRENTS VDD = +5.5 V, VSS = −5.5 V Source Off Leakage, IS (Off) ±0.01 nA typ VS = ±4.5 V, VD = ±4.5 V; see Figure 27 ±0.1 ±1.5 ±12 nA max Drain Off Leakage, ID (Off) ±0.02 nA typ VS = ±4.5V, VD = ±4.5 V; see Figure 27 ±0.15 ±2 ±20 nA max Channel On Leakage, ID, IS (On) ±0.02 nA typ VS = VD = ±4.5 V; see Figure 28 ±0.15 ±2 ±20 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH ±1 nA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 8 pF typ DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 161 ns typ RL = 300 Ω, CL = 35 pF 200 236 264 ns max VS = 2.5 V; see Figure 29 tON (EN) 61 ns typ RL = 300 Ω, CL = 35 pF 79 88 98 ns max VS = 2.5 V; see Figure 31 tOFF (EN) 162 ns typ RL = 300 Ω, CL = 35 pF 199 232 259 ns max VS = 2.5 V; see Figure 31 Break-Before-Make Time Delay, tD 44 ns typ RL = 300 Ω, CL = 35 pF 30 ns min VS1 = VS2 = 2.5 V; see Figure 30 Charge Injection −12.5 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF; see Figure 32 Off Isolation −64 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 33 Channel-to-Channel Crosstalk −64 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 35 Total Harmonic Distortion + Noise (THD + N) 0.3 % typ RL = 110 Ω, VS = 5 V p-p, f = 20 Hz to 20 kHz; see Figure 36 −3 dB Bandwidth 103 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 34 CS (Off) 19 pF typ VS = 0 V, f = 1 MHz CD (Off) 33 pF typ VS = 0 V, f = 1 MHz CD, CS (On) 57 pF typ VS = 0 V, f = 1 MHz POWER REQUIREMENTS VDD = +5.5 V, VSS = −5.5 V IDD 0.001 µA typ Digital inputs = 0 V or VDD 1.0 µA max VDD/VSS ±3.3/±8 V min/max 1 Guaranteed by design, but not subject to production test. Rev. B | Page 3 of 19 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAMS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V SINGLE SUPPLY 3.3 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
Data Sheet ADG1633/ADG1634 SPECIFICATIONS ±5 V DUAL SUPPLY
VDD = +5 V ± 10%, VSS = −5 V ± 10%, GND = 0 V, unless otherwise noted.
Table 1. −40°C to −40°C to Parameter 25°C +85°C +125°C Unit Test Conditions/Comments
