| Manufacturer | Analog Devices |
| Description | 4.5 Ω RON, Triple/Quad SPDT ±5 V, +12 V, +5 V, and +3.3 V Switches |
| Pages / Page | 19 / 10 — ADG1633/ADG1634. Data Sheet. IN1. IN4. N4I. S1A. S4A. S1B. S4B. D1 1. 15 … |
| Revision | B |
| File Format / Size | PDF / 445 Kb |
| Document Language | English |
ADG1633/ADG1634. Data Sheet. IN1. IN4. N4I. S1A. S4A. S1B. S4B. D1 1. 15 D4. S1B 2. 14 S4B. ADG1634. VDD. TOP VIEW. VSS 3. 13 VDD. GND. (Not to Scale). GND 4
Model Line for this Datasheet
Text Version of Document
ADG1633/ADG1634 Data Sheet IN1 1 20 IN4 1A N1 4A S I EN N4I S S1A 2 19 S4A 20 19 18 17 16 D1 3 18 D4 S1B 4 17 S4B D1 1 15 D4 V S1B 2 14 S4B 5 ADG1634 16 SS VDD ADG1634 TOP VIEW VSS 3 13 VDD TOP VIEW GND 6 15 (Not to Scale) NC GND 4 12 S3B (Not to Scale) S2B 7 14 S3B S2B 5 11 D3 D2 8 13 D3 6 7 8 9 10 S2A 9 12 S3A D2 2A N2I N3 3A I IN2 10 11 IN3 S S
007 006
NOTES NC = NO CONNECT 1. EXPOSED PAD IS TIED TO THE SUBSTRATE, VSS.

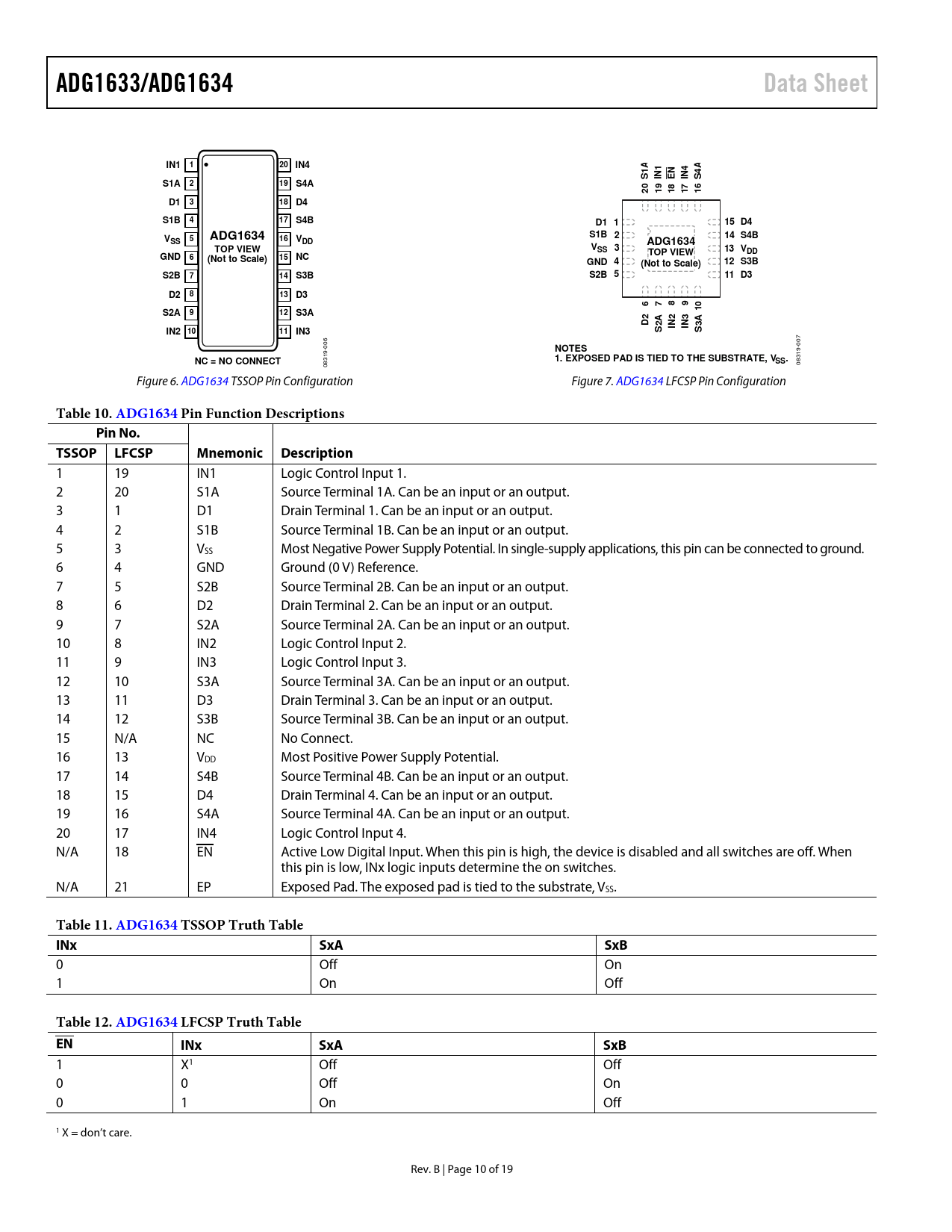

08319- 08319- Figure 6. ADG1634 TSSOP Pin Configuration Figure 7. ADG1634 LFCSP Pin Configuration
Table 10. ADG1634 P in Function Descriptions Pin No. TSSOP LFCSP Mnemonic Description
1 19 IN1 Logic Control Input 1. 2 20 S1A Source Terminal 1A. Can be an input or an output. 3 1 D1 Drain Terminal 1. Can be an input or an output. 4 2 S1B Source Terminal 1B. Can be an input or an output. 5 3 VSS Most Negative Power Supply Potential. In single-supply applications, this pin can be connected to ground. 6 4 GND Ground (0 V) Reference. 7 5 S2B Source Terminal 2B. Can be an input or an output. 8 6 D2 Drain Terminal 2. Can be an input or an output. 9 7 S2A Source Terminal 2A. Can be an input or an output. 10 8 IN2 Logic Control Input 2. 11 9 IN3 Logic Control Input 3. 12 10 S3A Source Terminal 3A. Can be an input or an output. 13 11 D3 Drain Terminal 3. Can be an input or an output. 14 12 S3B Source Terminal 3B. Can be an input or an output. 15 N/A NC No Connect. 16 13 VDD Most Positive Power Supply Potential. 17 14 S4B Source Terminal 4B. Can be an input or an output. 18 15 D4 Drain Terminal 4. Can be an input or an output. 19 16 S4A Source Terminal 4A. Can be an input or an output. 20 17 IN4 Logic Control Input 4. N/A 18 EN Active Low Digital Input. When this pin is high, the device is disabled and all switches are off. When this pin is low, INx logic inputs determine the on switches. N/A 21 EP Exposed Pad. The exposed pad is tied to the substrate, VSS.
Table 11. ADG1634 T SSOP Truth Table INx SxA SxB
0 Off On 1 On Off
Table 12. ADG1634 L FCSP Truth Table EN INx SxA SxB
1 X1 Off Off 0 0 Off On 0 1 On Off 1 X = don’t care. Rev. B | Page 10 of 19 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAMS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V SINGLE SUPPLY 3.3 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
