Datasheet ADG1633, ADG1634 (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | 4.5 Ω RON, Triple/Quad SPDT ±5 V, +12 V, +5 V, and +3.3 V Switches |
| Pages / Page | 19 / 8 — ADG1633/ADG1634. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 7. … |
| Revision | B |
| File Format / Size | PDF / 445 Kb |
| Document Language | English |
ADG1633/ADG1634. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 7. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
link to page 7 link to page 7

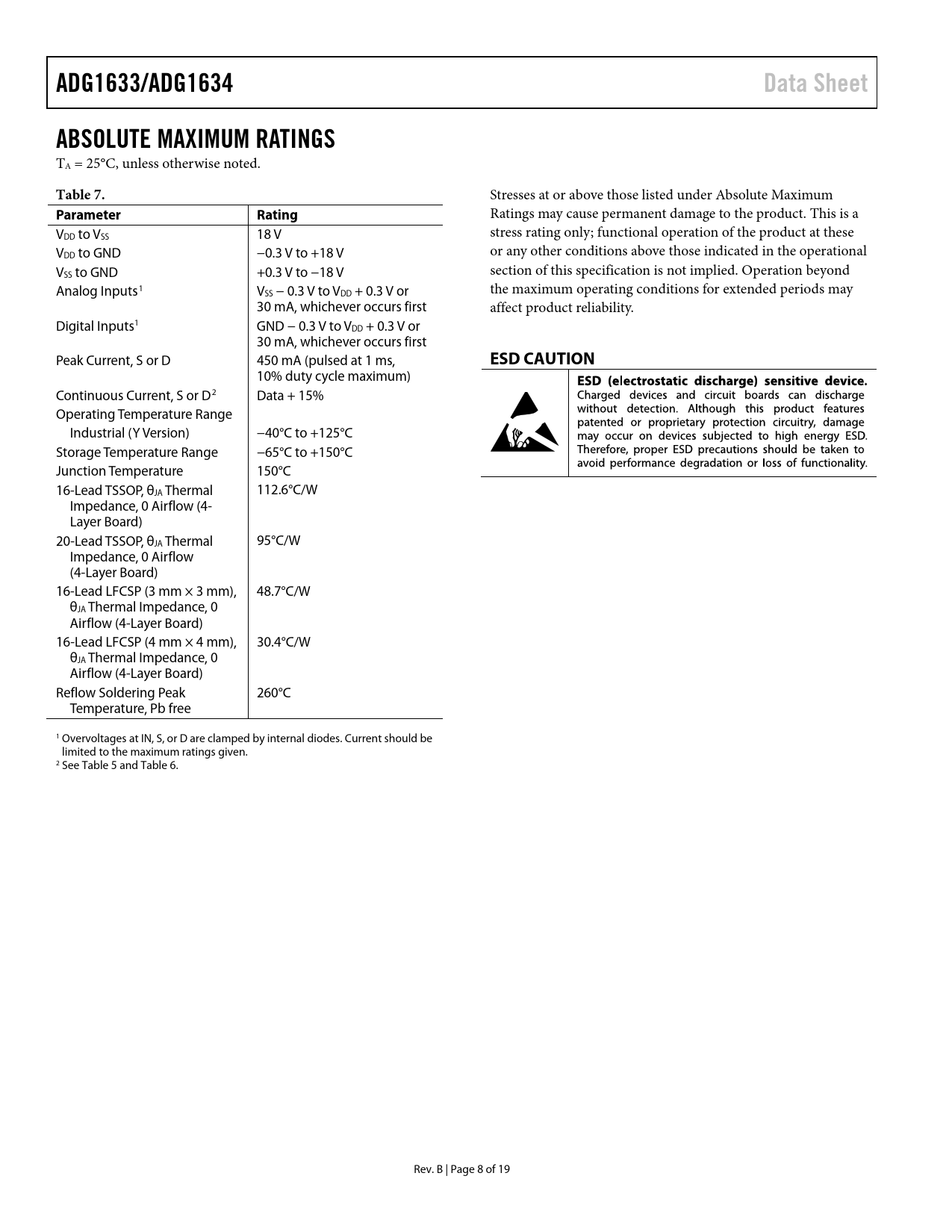

ADG1633/ADG1634 Data Sheet ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
Table 7.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a VDD to VSS 18 V stress rating only; functional operation of the product at these VDD to GND −0.3 V to +18 V or any other conditions above those indicated in the operational VSS to GND +0.3 V to −18 V section of this specification is not implied. Operation beyond Analog Inputs1 VSS − 0.3 V to VDD + 0.3 V or the maximum operating conditions for extended periods may 30 mA, whichever occurs first affect product reliability. Digital Inputs1 GND − 0.3 V to VDD + 0.3 V or 30 mA, whichever occurs first Peak Current, S or D 450 mA (pulsed at 1 ms,
ESD CAUTION
10% duty cycle maximum) Continuous Current, S or D2 Data + 15% Operating Temperature Range Industrial (Y Version) −40°C to +125°C Storage Temperature Range −65°C to +150°C Junction Temperature 150°C 16-Lead TSSOP, θJA Thermal 112.6°C/W Impedance, 0 Airflow (4- Layer Board) 20-Lead TSSOP, θJA Thermal 95°C/W Impedance, 0 Airflow (4-Layer Board) 16-Lead LFCSP (3 mm × 3 mm), 48.7°C/W θJA Thermal Impedance, 0 Airflow (4-Layer Board) 16-Lead LFCSP (4 mm × 4 mm), 30.4°C/W θJA Thermal Impedance, 0 Airflow (4-Layer Board) Reflow Soldering Peak 260°C Temperature, Pb free 1 Overvoltages at IN, S, or D are clamped by internal diodes. Current should be limited to the maximum ratings given. 2 See Table 5 and Table 6. Rev. B | Page 8 of 19 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAMS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V SINGLE SUPPLY 3.3 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
