Datasheet ADG1634-KGD (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | 4.5 Ω RON, Quad SPDT ±5 V, +12 V, +5 V, and +3.3 V Switch |
| Pages / Page | 13 / 4 — ADG1634-KGD. Data Sheet. −40°C to −40°C to. Parameter. 25°C. +85°C. … |
| File Format / Size | PDF / 368 Kb |
| Document Language | English |

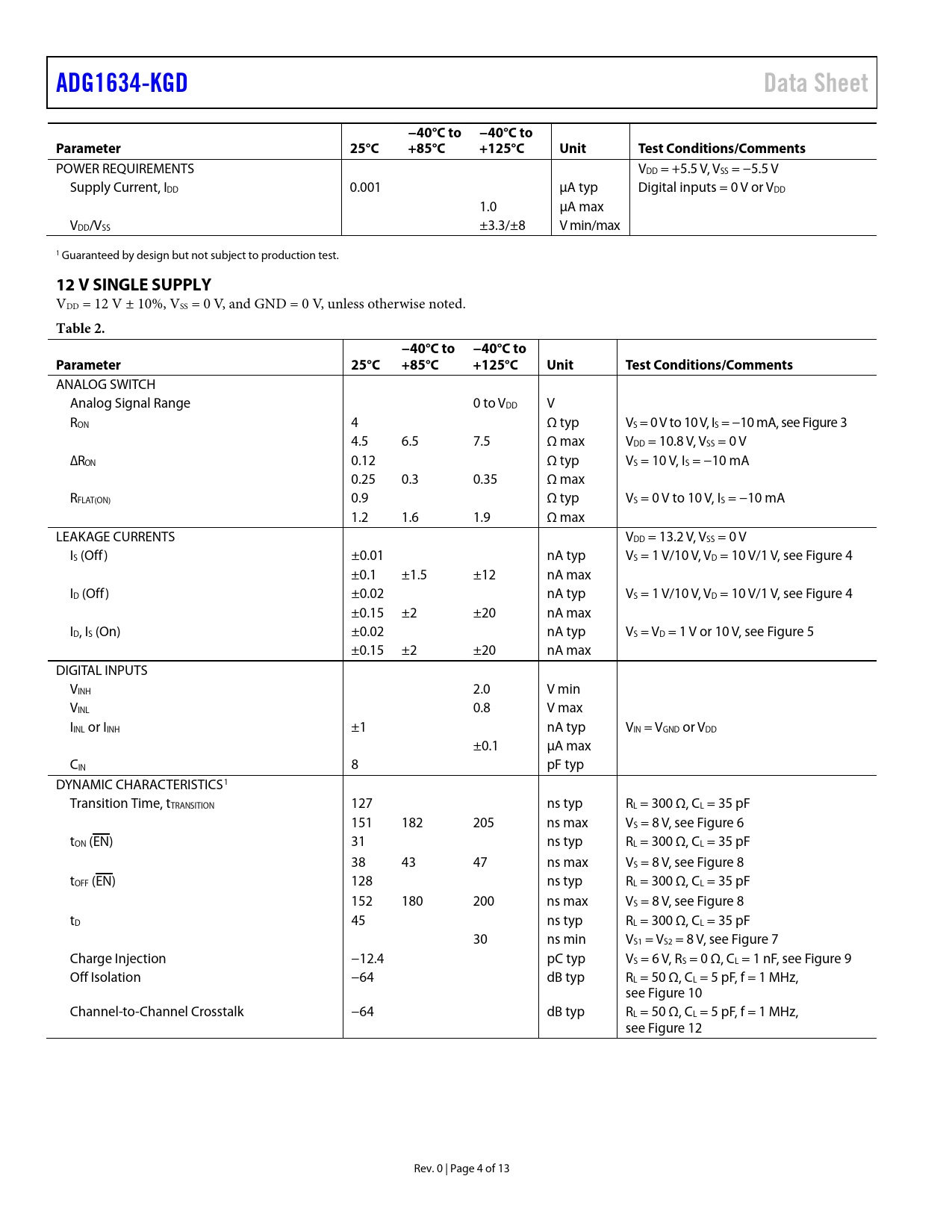

ADG1634-KGD. Data Sheet. −40°C to −40°C to. Parameter. 25°C. +85°C. +125°C. Unit. Test Conditions/Comments. 12 V SINGLE SUPPLY. Table 2
Model Line for this Datasheet
Text Version of Document
link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 12 link to page 12 link to page 12 link to page 5
ADG1634-KGD Data Sheet −40°C to −40°C to Parameter 25°C +85°C +125°C Unit Test Conditions/Comments
POWER REQUIREMENTS VDD = +5.5 V, VSS = −5.5 V Supply Current, IDD 0.001 µA typ Digital inputs = 0 V or VDD 1.0 µA max VDD/VSS ±3.3/±8 V min/max 1 Guaranteed by design but not subject to production test.
12 V SINGLE SUPPLY
VDD = 12 V ± 10%, VSS = 0 V, and GND = 0 V, unless otherwise noted.
Table 2. −40°C to −40°C to Parameter 25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 to VDD V RON 4 Ω typ VS = 0 V to 10 V, IS = −10 mA, see Figure 3 4.5 6.5 7.5 Ω max VDD = 10.8 V, VSS = 0 V ∆RON 0.12 Ω typ VS = 10 V, IS = −10 mA 0.25 0.3 0.35 Ω max RFLAT(ON) 0.9 Ω typ VS = 0 V to 10 V, IS = −10 mA 1.2 1.6 1.9 Ω max LEAKAGE CURRENTS VDD = 13.2 V, VSS = 0 V IS (Off) ±0.01 nA typ VS = 1 V/10 V, VD = 10 V/1 V, see Figure 4 ±0.1 ±1.5 ±12 nA max ID (Off) ±0.02 nA typ VS = 1 V/10 V, VD = 10 V/1 V, see Figure 4 ±0.15 ±2 ±20 nA max ID, IS (On) ±0.02 nA typ VS = VD = 1 V or 10 V, see Figure 5 ±0.15 ±2 ±20 nA max DIGITAL INPUTS VINH 2.0 V min VINL 0.8 V max IINL or IINH ±1 nA typ VIN = VGND or VDD ±0.1 µA max CIN 8 pF typ DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 127 ns typ RL = 300 Ω, CL = 35 pF 151 182 205 ns max VS = 8 V, see Figure 6 tON (EN) 31 ns typ RL = 300 Ω, CL = 35 pF 38 43 47 ns max VS = 8 V, see Figure 8 tOFF (EN) 128 ns typ RL = 300 Ω, CL = 35 pF 152 180 200 ns max VS = 8 V, see Figure 8 tD 45 ns typ RL = 300 Ω, CL = 35 pF 30 ns min VS1 = VS2 = 8 V, see Figure 7 Charge Injection −12.4 pC typ VS = 6 V, RS = 0 Ω, CL = 1 nF, see Figure 9 Off Isolation −64 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 10 Channel-to-Channel Crosstalk −64 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz, see Figure 12 Rev. 0 | Page 4 of 13 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V SINGLE SUPPLY 3.3 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TEST CIRCUITS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
