Datasheet ADG1634-KGD (Analog Devices) - 10
| Manufacturer | Analog Devices |
| Description | 4.5 Ω RON, Quad SPDT ±5 V, +12 V, +5 V, and +3.3 V Switch |
| Pages / Page | 13 / 10 — ADG1634-KGD. Data Sheet. Pad No. Mnemonic X Coordinate. Y Coordinate. … |
| File Format / Size | PDF / 368 Kb |
| Document Language | English |

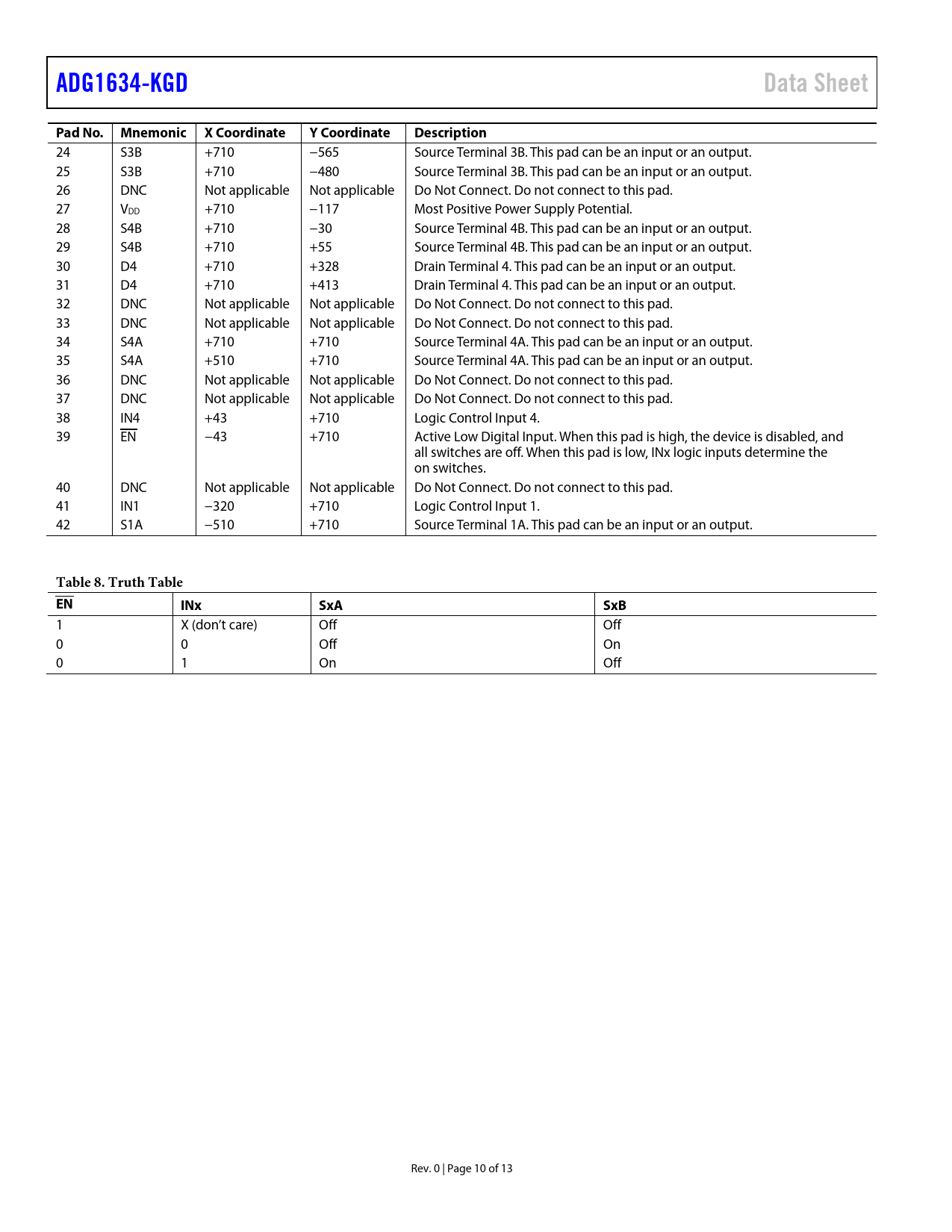

ADG1634-KGD. Data Sheet. Pad No. Mnemonic X Coordinate. Y Coordinate. Description. Table 8. Truth Table EN. INx. SxA. SxB
Model Line for this Datasheet
Text Version of Document
ADG1634-KGD Data Sheet Pad No. Mnemonic X Coordinate Y Coordinate Description
24 S3B +710 −565 Source Terminal 3B. This pad can be an input or an output. 25 S3B +710 −480 Source Terminal 3B. This pad can be an input or an output. 26 DNC Not applicable Not applicable Do Not Connect. Do not connect to this pad. 27 VDD +710 −117 Most Positive Power Supply Potential. 28 S4B +710 −30 Source Terminal 4B. This pad can be an input or an output. 29 S4B +710 +55 Source Terminal 4B. This pad can be an input or an output. 30 D4 +710 +328 Drain Terminal 4. This pad can be an input or an output. 31 D4 +710 +413 Drain Terminal 4. This pad can be an input or an output. 32 DNC Not applicable Not applicable Do Not Connect. Do not connect to this pad. 33 DNC Not applicable Not applicable Do Not Connect. Do not connect to this pad. 34 S4A +710 +710 Source Terminal 4A. This pad can be an input or an output. 35 S4A +510 +710 Source Terminal 4A. This pad can be an input or an output. 36 DNC Not applicable Not applicable Do Not Connect. Do not connect to this pad. 37 DNC Not applicable Not applicable Do Not Connect. Do not connect to this pad. 38 IN4 +43 +710 Logic Control Input 4. 39 EN −43 +710 Active Low Digital Input. When this pad is high, the device is disabled, and all switches are off. When this pad is low, INx logic inputs determine the on switches. 40 DNC Not applicable Not applicable Do Not Connect. Do not connect to this pad. 41 IN1 −320 +710 Logic Control Input 1. 42 S1A −510 +710 Source Terminal 1A. This pad can be an input or an output.
Table 8. Truth Table EN INx SxA SxB
1 X (don’t care) Off Off 0 0 Off On 0 1 On Off Rev. 0 | Page 10 of 13 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V SINGLE SUPPLY 3.3 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TEST CIRCUITS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
