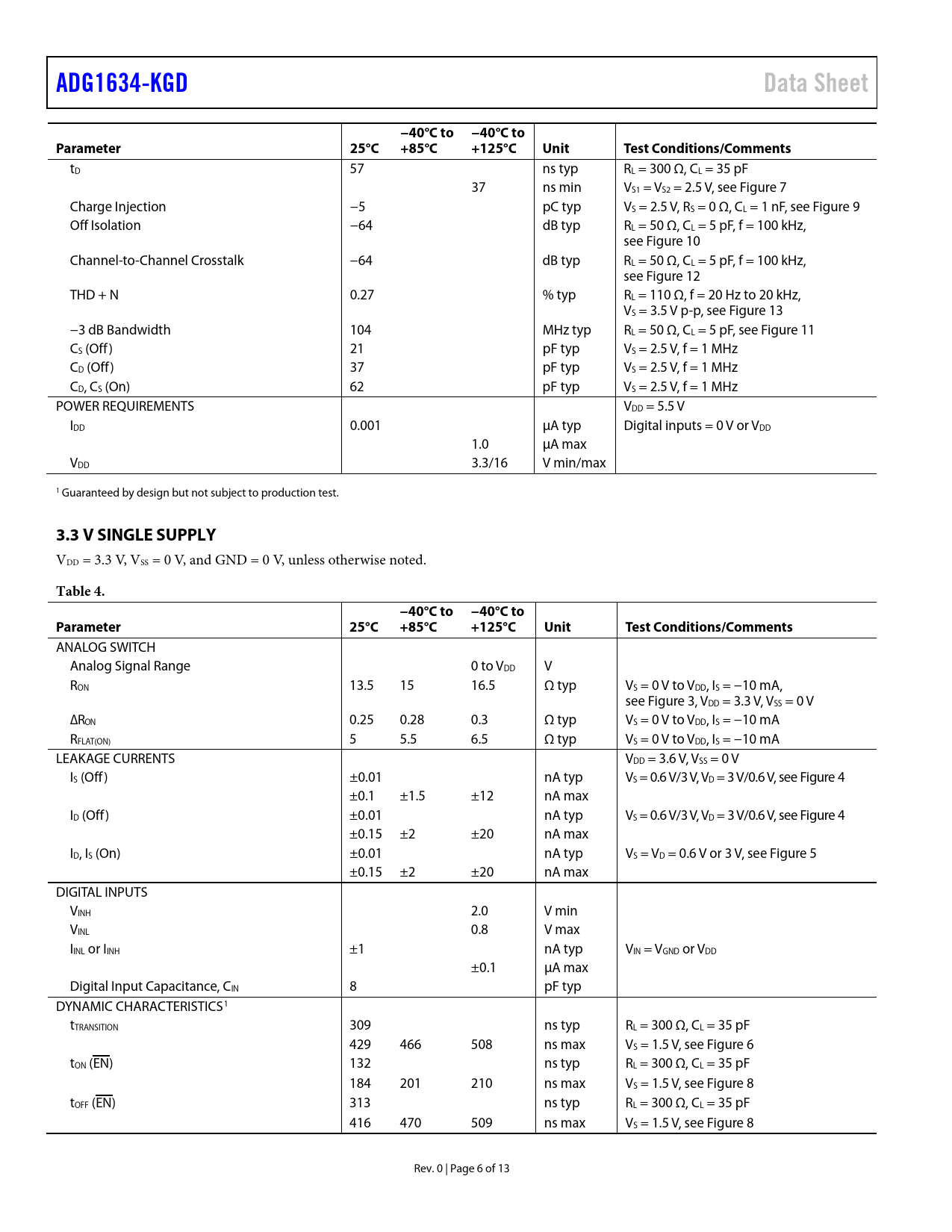

ADG1634-KGD. Data Sheet. −40°C to −40°C to. Parameter. 25°C +85°C. +125°C. Unit. Test Conditions/Comments. 3.3 V SINGLE SUPPLY. Table 4
Model Line for this Datasheet
Text Version of Document
link to page 11 link to page 12 link to page 12 link to page 12 link to page 12 link to page 12 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 7
ADG1634-KGD Data Sheet −40°C to −40°C to Parameter 25°C +85°C +125°C Unit Test Conditions/Comments
tD 57 ns typ RL = 300 Ω, CL = 35 pF 37 ns min VS1 = VS2 = 2.5 V, see Figure 7 Charge Injection −5 pC typ VS = 2.5 V, RS = 0 Ω, CL = 1 nF, see Figure 9 Off Isolation −64 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz, see Figure 10 Channel-to-Channel Crosstalk −64 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz, see Figure 12 THD + N 0.27 % typ RL = 110 Ω, f = 20 Hz to 20 kHz, VS = 3.5 V p-p, see Figure 13 −3 dB Bandwidth 104 MHz typ RL = 50 Ω, CL = 5 pF, see Figure 11 CS (Off) 21 pF typ VS = 2.5 V, f = 1 MHz CD (Off) 37 pF typ VS = 2.5 V, f = 1 MHz CD, CS (On) 62 pF typ VS = 2.5 V, f = 1 MHz POWER REQUIREMENTS VDD = 5.5 V IDD 0.001 µA typ Digital inputs = 0 V or VDD 1.0 µA max VDD 3.3/16 V min/max 1 Guaranteed by design but not subject to production test.
3.3 V SINGLE SUPPLY
VDD = 3.3 V, VSS = 0 V, and GND = 0 V, unless otherwise noted.
Table 4. −40°C to −40°C to Parameter 25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 to VDD V RON 13.5 15 16.5 Ω typ VS = 0 V to VDD, IS = −10 mA, see Figure 3, VDD = 3.3 V, VSS = 0 V ∆RON 0.25 0.28 0.3 Ω typ VS = 0 V to VDD, IS = −10 mA RFLAT(ON) 5 5.5 6.5 Ω typ VS = 0 V to VDD, IS = −10 mA LEAKAGE CURRENTS VDD = 3.6 V, VSS = 0 V IS (Off) ±0.01 nA typ VS = 0.6 V/3 V, VD = 3 V/0.6 V, see Figure 4 ±0.1 ±1.5 ±12 nA max ID (Off) ±0.01 nA typ VS = 0.6 V/3 V, VD = 3 V/0.6 V, see Figure 4 ±0.15 ±2 ±20 nA max ID, IS (On) ±0.01 nA typ VS = VD = 0.6 V or 3 V, see Figure 5 ±0.15 ±2 ±20 nA max DIGITAL INPUTS VINH 2.0 V min VINL 0.8 V max IINL or IINH ±1 nA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 8 pF typ DYNAMIC CHARACTERISTICS1 tTRANSITION 309 ns typ RL = 300 Ω, CL = 35 pF 429 466 508 ns max VS = 1.5 V, see Figure 6 tON (EN) 132 ns typ RL = 300 Ω, CL = 35 pF 184 201 210 ns max VS = 1.5 V, see Figure 8 tOFF (EN) 313 ns typ RL = 300 Ω, CL = 35 pF 416 470 509 ns max VS = 1.5 V, see Figure 8 Rev. 0 | Page 6 of 13 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V SINGLE SUPPLY 3.3 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TEST CIRCUITS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
