| Manufacturer | Analog Devices |
| Description | 4.5 Ω RON, Quad SPDT ±5 V, +12 V, +5 V, and +3.3 V Switch |
| Pages / Page | 13 / 7 — Data Sheet. ADG1634-KGD. −40°C to −40°C to. Parameter. 25°C +85°C. … |
| File Format / Size | PDF / 368 Kb |
| Document Language | English |

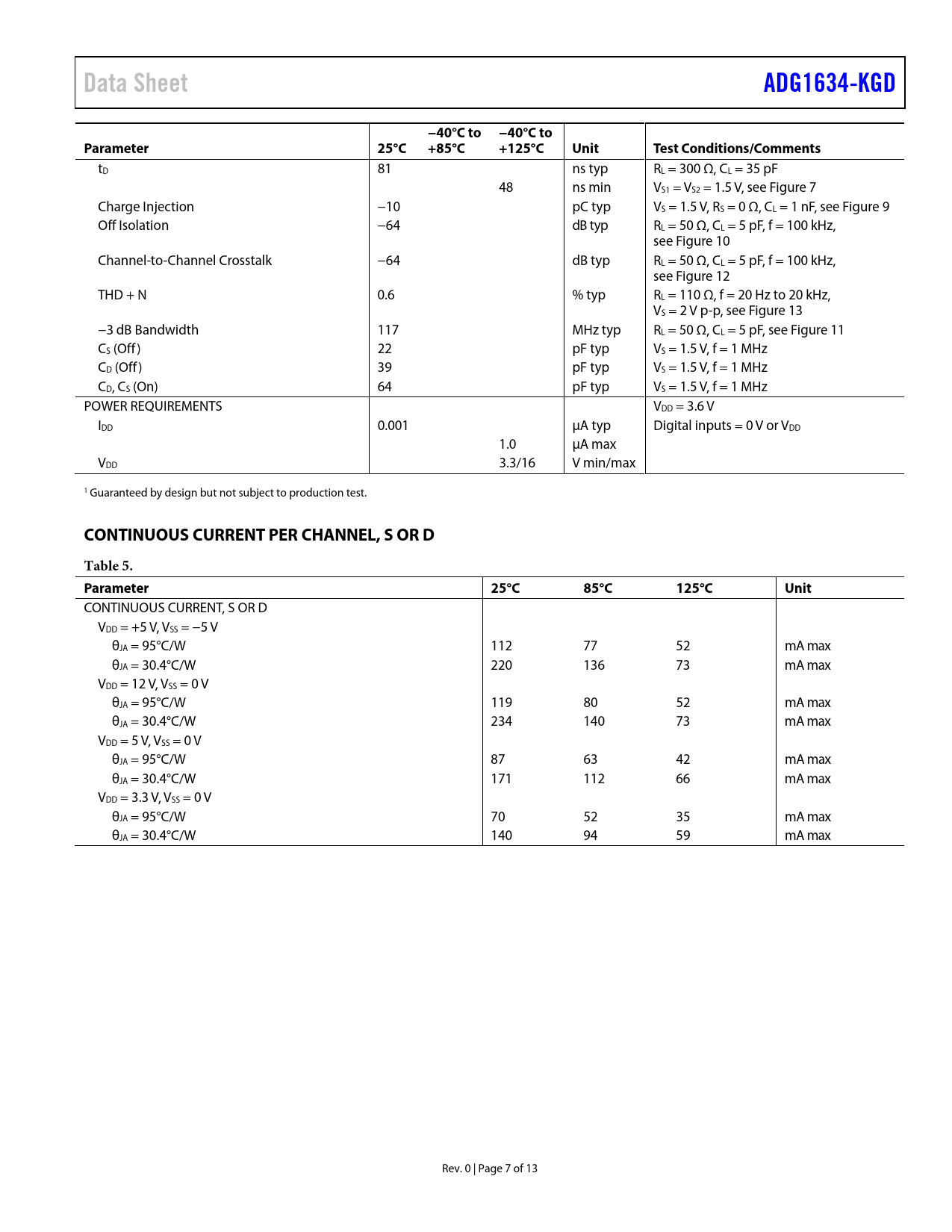

Data Sheet. ADG1634-KGD. −40°C to −40°C to. Parameter. 25°C +85°C. +125°C. Unit. Test Conditions/Comments
Model Line for this Datasheet
Text Version of Document
link to page 11 link to page 12 link to page 12 link to page 12 link to page 12 link to page 12
Data Sheet ADG1634-KGD −40°C to −40°C to Parameter 25°C +85°C +125°C Unit Test Conditions/Comments
tD 81 ns typ RL = 300 Ω, CL = 35 pF 48 ns min VS1 = VS2 = 1.5 V, see Figure 7 Charge Injection −10 pC typ VS = 1.5 V, RS = 0 Ω, CL = 1 nF, see Figure 9 Off Isolation −64 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz, see Figure 10 Channel-to-Channel Crosstalk −64 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz, see Figure 12 THD + N 0.6 % typ RL = 110 Ω, f = 20 Hz to 20 kHz, VS = 2 V p-p, see Figure 13 −3 dB Bandwidth 117 MHz typ RL = 50 Ω, CL = 5 pF, see Figure 11 CS (Off) 22 pF typ VS = 1.5 V, f = 1 MHz CD (Off) 39 pF typ VS = 1.5 V, f = 1 MHz CD, CS (On) 64 pF typ VS = 1.5 V, f = 1 MHz POWER REQUIREMENTS VDD = 3.6 V IDD 0.001 µA typ Digital inputs = 0 V or VDD 1.0 µA max VDD 3.3/16 V min/max 1 Guaranteed by design but not subject to production test.
CONTINUOUS CURRENT PER CHANNEL, S OR D Table 5. Parameter 25°C 85°C 125°C Unit
CONTINUOUS CURRENT, S OR D VDD = +5 V, VSS = −5 V θJA = 95°C/W 112 77 52 mA max θJA = 30.4°C/W 220 136 73 mA max VDD = 12 V, VSS = 0 V θJA = 95°C/W 119 80 52 mA max θJA = 30.4°C/W 234 140 73 mA max VDD = 5 V, VSS = 0 V θJA = 95°C/W 87 63 42 mA max θJA = 30.4°C/W 171 112 66 mA max VDD = 3.3 V, VSS = 0 V θJA = 95°C/W 70 52 35 mA max θJA = 30.4°C/W 140 94 59 mA max Rev. 0 | Page 7 of 13 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V SINGLE SUPPLY 3.3 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TEST CIRCUITS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
