Data Sheet. ADG1436. SPECIFICATIONS 15 V DUAL SUPPLY. Table 1. Parameter. 25°C. −40°C to +85°C. −40°C to +125°C. Unit
Model Line for this Datasheet
Text Version of Document
link to page 13 link to page 13 link to page 13 link to page 13 link to page 14 link to page 14 link to page 14 link to page 14 link to page 15 link to page 13 link to page 13 link to page 14 link to page 13 link to page 13

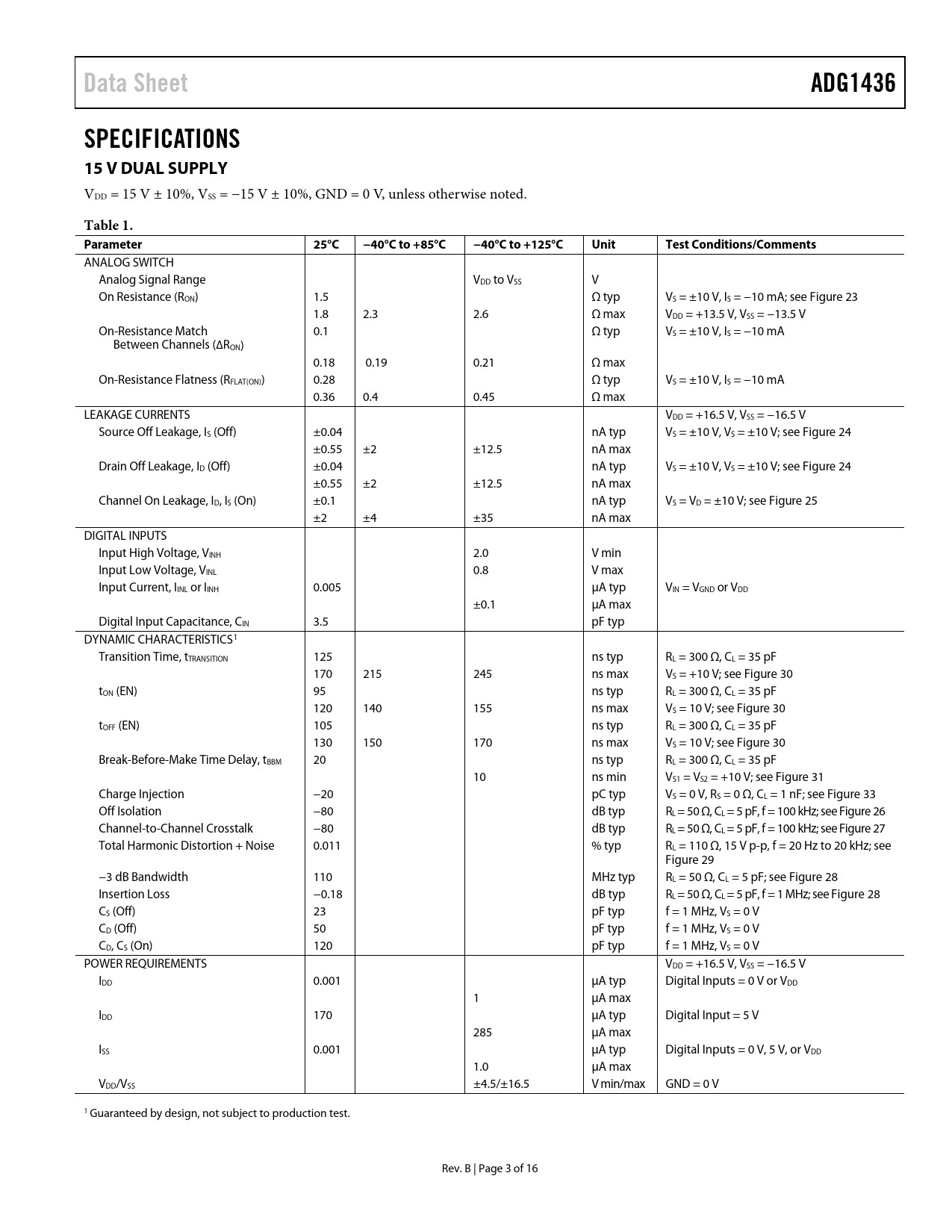

Data Sheet ADG1436 SPECIFICATIONS 15 V DUAL SUPPLY
VDD = 15 V ± 10%, VSS = −15 V ± 10%, GND = 0 V, unless otherwise noted.
Table 1. Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range VDD to VSS V On Resistance (RON) 1.5 Ω typ VS = ±10 V, IS = −10 mA; see Figure 23 1.8 2.3 2.6 Ω max VDD = +13.5 V, VSS = −13.5 V On-Resistance Match 0.1 Ω typ VS = ±10 V, IS = −10 mA Between Channels (∆RON) 0.18 0.19 0.21 Ω max On-Resistance Flatness (RFLAT(ON)) 0.28 Ω typ VS = ±10 V, IS = −10 mA 0.36 0.4 0.45 Ω max LEAKAGE CURRENTS VDD = +16.5 V, VSS = −16.5 V Source Off Leakage, IS (Off) ±0.04 nA typ VS = ±10 V, VS = ±10 V; see Figure 24 ±0.55 ±2 ±12.5 nA max Drain Off Leakage, ID (Off) ±0.04 nA typ VS = ±10 V, VS = ±10 V; see Figure 24 ±0.55 ±2 ±12.5 nA max Channel On Leakage, ID, IS (On) ±0.1 nA typ VS = VD = ±10 V; see Figure 25 ±2 ±4 ±35 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.005 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 3.5 pF typ DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 125 ns typ RL = 300 Ω, CL = 35 pF 170 215 245 ns max VS = +10 V; see Figure 30 tON (EN) 95 ns typ RL = 300 Ω, CL = 35 pF 120 140 155 ns max VS = 10 V; see Figure 30 tOFF (EN) 105 ns typ RL = 300 Ω, CL = 35 pF 130 150 170 ns max VS = 10 V; see Figure 30 Break-Before-Make Time Delay, tBBM 20 ns typ RL = 300 Ω, CL = 35 pF 10 ns min VS1 = VS2 = +10 V; see Figure 31 Charge Injection −20 pC typ VS = 0 V, RS = 0 Ω, CL = 1 nF; see Figure 33 Off Isolation −80 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz; see Figure 26 Channel-to-Channel Crosstalk −80 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz; see Figure 27 Total Harmonic Distortion + Noise 0.011 % typ RL = 110 Ω, 15 V p-p, f = 20 Hz to 20 kHz; see Figure 29 −3 dB Bandwidth 110 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 28 Insertion Loss −0.18 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 28 CS (Off) 23 pF typ f = 1 MHz, VS = 0 V CD (Off) 50 pF typ f = 1 MHz, VS = 0 V CD, CS (On) 120 pF typ f = 1 MHz, VS = 0 V POWER REQUIREMENTS VDD = +16.5 V, VSS = −16.5 V IDD 0.001 µA typ Digital Inputs = 0 V or VDD 1 µA max IDD 170 µA typ Digital Input = 5 V 285 µA max ISS 0.001 µA typ Digital Inputs = 0 V, 5 V, or VDD 1.0 µA max VDD/VSS ±4.5/±16.5 V min/max GND = 0 V 1 Guaranteed by design, not subject to production test. Rev. B | Page 3 of 16 Document Outline Features Applications Functional Block Diagrams General Description Product Highlights Revision History Specifications 15 V Dual Supply 12 V Single Supply 5 V Dual Supply Continuous Current per Channel Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Truth Table For Switches Typical Performance Characteristics Terminology Test Circuits Outline Dimensions Ordering Guide
Data Sheet ADG1436 SPECIFICATIONS 15 V DUAL SUPPLY
VDD = 15 V ± 10%, VSS = −15 V ± 10%, GND = 0 V, unless otherwise noted.
Table 1. Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
