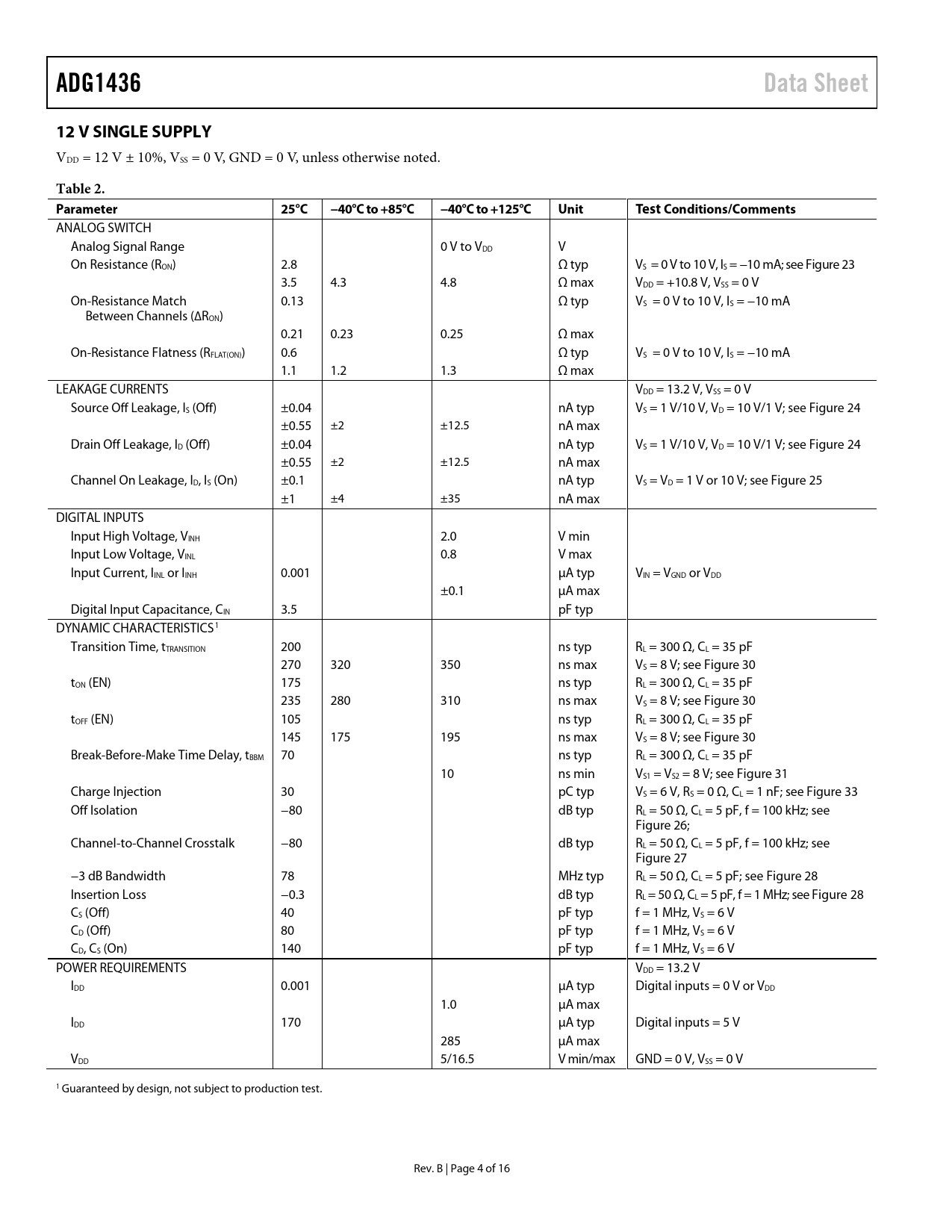

ADG1436 Data Sheet 12 V SINGLE SUPPLY
VDD = 12 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 2. Parameter 25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance (RON) 2.8 Ω typ VS = 0 V to 10 V, IS = −10 mA; see Figure 23 3.5 4.3 4.8 Ω max VDD = +10.8 V, VSS = 0 V On-Resistance Match 0.13 Ω typ VS = 0 V to 10 V, IS = −10 mA Between Channels (∆RON) 0.21 0.23 0.25 Ω max On-Resistance Flatness (RFLAT(ON)) 0.6 Ω typ VS = 0 V to 10 V, IS = −10 mA 1.1 1.2 1.3 Ω max LEAKAGE CURRENTS VDD = 13.2 V, VSS = 0 V Source Off Leakage, IS (Off) ±0.04 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 24 ±0.55 ±2 ±12.5 nA max Drain Off Leakage, ID (Off) ±0.04 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 24 ±0.55 ±2 ±12.5 nA max Channel On Leakage, ID, IS (On) ±0.1 nA typ VS = VD = 1 V or 10 V; see Figure 25 ±1 ±4 ±35 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH 0.001 µA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 3.5 pF typ DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 200 ns typ RL = 300 Ω, CL = 35 pF 270 320 350 ns max VS = 8 V; see Figure 30 tON (EN) 175 ns typ RL = 300 Ω, CL = 35 pF 235 280 310 ns max VS = 8 V; see Figure 30 tOFF (EN) 105 ns typ RL = 300 Ω, CL = 35 pF 145 175 195 ns max VS = 8 V; see Figure 30 Break-Before-Make Time Delay, tBBM 70 ns typ RL = 300 Ω, CL = 35 pF 10 ns min VS1 = VS2 = 8 V; see Figure 31 Charge Injection 30 pC typ VS = 6 V, RS = 0 Ω, CL = 1 nF; see Figure 33 Off Isolation −80 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz; see Figure 26; Channel-to-Channel Crosstalk −80 dB typ RL = 50 Ω, CL = 5 pF, f = 100 kHz; see Figure 27 −3 dB Bandwidth 78 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 28 Insertion Loss −0.3 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 28 CS (Off) 40 pF typ f = 1 MHz, VS = 6 V CD (Off) 80 pF typ f = 1 MHz, VS = 6 V CD, CS (On) 140 pF typ f = 1 MHz, VS = 6 V POWER REQUIREMENTS VDD = 13.2 V IDD 0.001 µA typ Digital inputs = 0 V or VDD 1.0 µA max IDD 170 µA typ Digital inputs = 5 V 285 µA max VDD 5/16.5 V min/max GND = 0 V, VSS = 0 V 1 Guaranteed by design, not subject to production test. Rev. B | Page 4 of 16 Document Outline Features Applications Functional Block Diagrams General Description Product Highlights Revision History Specifications 15 V Dual Supply 12 V Single Supply 5 V Dual Supply Continuous Current per Channel Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Truth Table For Switches Typical Performance Characteristics Terminology Test Circuits Outline Dimensions Ordering Guide
