Datasheet ADG1436 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | 1.5 Ω On Resistance, ±15 V/12 V/±5 V, iCMOS, Dual SPDT Switch |
| Pages / Page | 16 / 6 — ADG1436. Data Sheet. CONTINUOUS CURRENT PER CHANNEL. Table 4. Parameter. … |
| Revision | B |
| File Format / Size | PDF / 504 Kb |
| Document Language | English |
ADG1436. Data Sheet. CONTINUOUS CURRENT PER CHANNEL. Table 4. Parameter. 25°C. 85°C. 125°C. Unit. Test Conditions/Comments
Model Line for this Datasheet
Text Version of Document
link to page 10

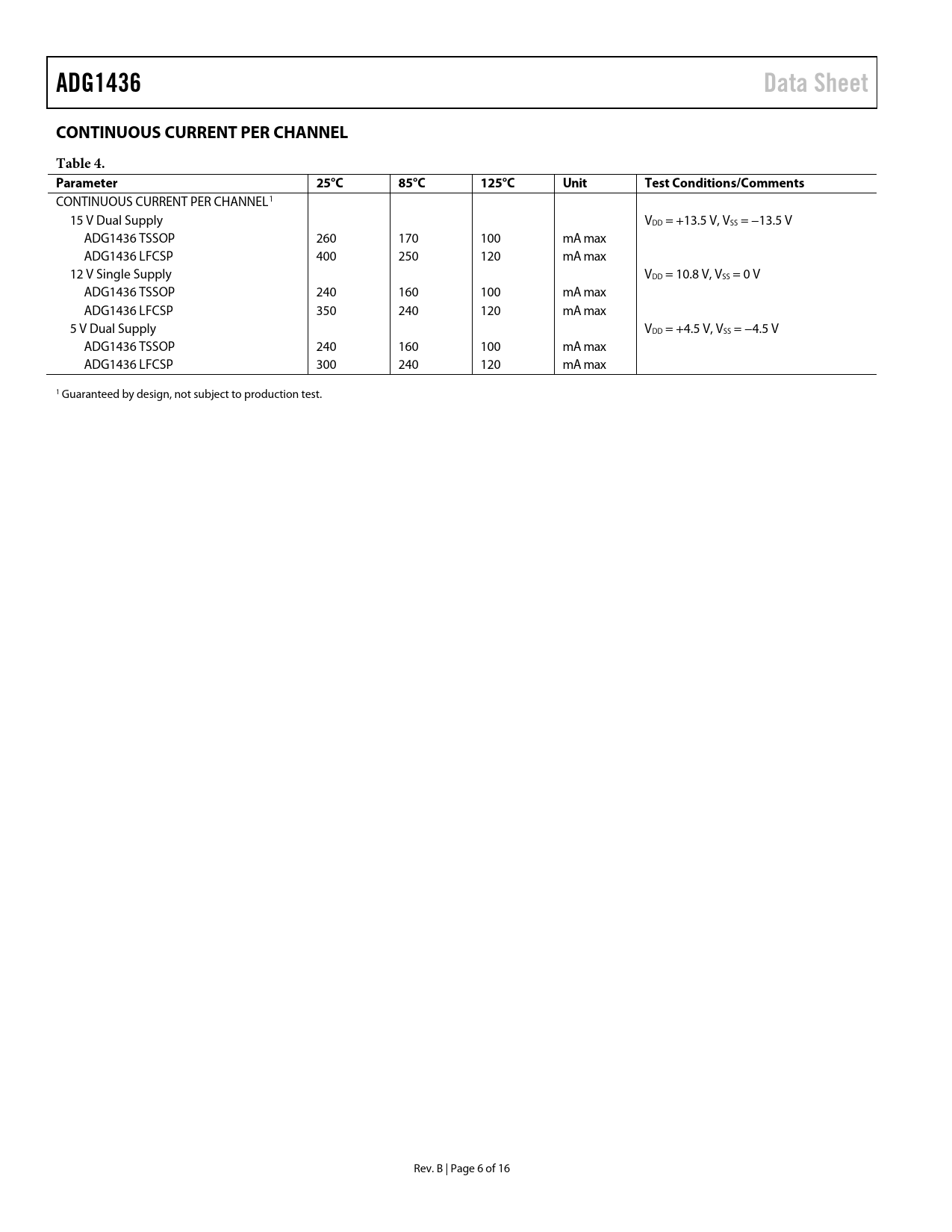

ADG1436 Data Sheet CONTINUOUS CURRENT PER CHANNEL Table 4. Parameter 25°C 85°C 125°C Unit Test Conditions/Comments
CONTINUOUS CURRENT PER CHANNEL1 15 V Dual Supply VDD = +13.5 V, VSS = −13.5 V ADG1436 TSSOP 260 170 100 mA max ADG1436 LFCSP 400 250 120 mA max 12 V Single Supply VDD = 10.8 V, VSS = 0 V ADG1436 TSSOP 240 160 100 mA max ADG1436 LFCSP 350 240 120 mA max 5 V Dual Supply VDD = +4.5 V, VSS = −4.5 V ADG1436 TSSOP 240 160 100 mA max ADG1436 LFCSP 300 240 120 mA max 1 Guaranteed by design, not subject to production test. Rev. B | Page 6 of 16 Document Outline Features Applications Functional Block Diagrams General Description Product Highlights Revision History Specifications 15 V Dual Supply 12 V Single Supply 5 V Dual Supply Continuous Current per Channel Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Truth Table For Switches Typical Performance Characteristics Terminology Test Circuits Outline Dimensions Ordering Guide
