Datasheet ADG1436 (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | 1.5 Ω On Resistance, ±15 V/12 V/±5 V, iCMOS, Dual SPDT Switch |
| Pages / Page | 16 / 8 — ADG1436. Data Sheet. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. IN1. … |
| Revision | B |
| File Format / Size | PDF / 504 Kb |
| Document Language | English |

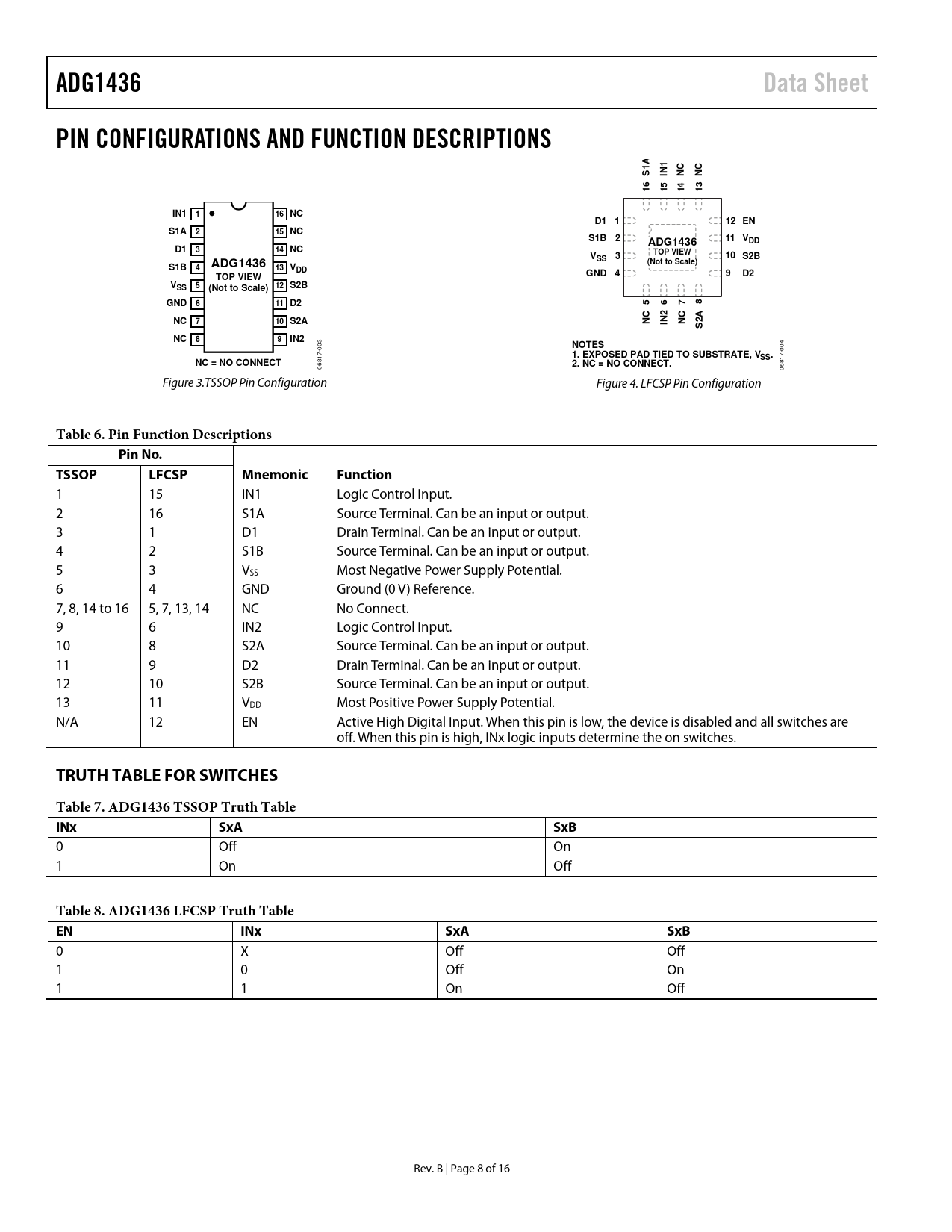

ADG1436. Data Sheet. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. IN1. 16 NC. D1 1. 12 EN. S1A. 15 NC. S1B. 11 VDD. 14 NC. TOP VIEW. S2B
Model Line for this Datasheet
Text Version of Document
ADG1436 Data Sheet PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS 1A IN1 S NC NC 16 15 14 13 IN1 1 16 NC D1 1 12 EN S1A 2 15 NC S1B 2 11 VDD ADG1436 D1 3 14 NC V 3 TOP VIEW 10 SS S2B (Not to Scale) S1B ADG1436 4 13 VDD TOP VIEW GND 4 9 D2 VSS 5 12 S2B (Not to Scale) GND 6 11 D2 5 6 7 8 NC 7 10 S2A NC IN2 NC 2A S NC 8 9 IN2 NOTES
003 004
1. EXPOSED PAD TIED TO SUBSTRATE, VSS. NC = NO CONNECT 2. NC = NO CONNECT.
06817- 06817- Figure 3.TSSOP Pin Configuration Figure 4. LFCSP Pin Configuration
Table 6. Pin Function Descriptions Pin No. TSSOP LFCSP Mnemonic Function
1 15 IN1 Logic Control Input. 2 16 S1A Source Terminal. Can be an input or output. 3 1 D1 Drain Terminal. Can be an input or output. 4 2 S1B Source Terminal. Can be an input or output. 5 3 VSS Most Negative Power Supply Potential. 6 4 GND Ground (0 V) Reference. 7, 8, 14 to 16 5, 7, 13, 14 NC No Connect. 9 6 IN2 Logic Control Input. 10 8 S2A Source Terminal. Can be an input or output. 11 9 D2 Drain Terminal. Can be an input or output. 12 10 S2B Source Terminal. Can be an input or output. 13 11 VDD Most Positive Power Supply Potential. N/A 12 EN Active High Digital Input. When this pin is low, the device is disabled and all switches are off. When this pin is high, INx logic inputs determine the on switches.
TRUTH TABLE FOR SWITCHES Table 7. ADG1436 TSSOP Truth Table INx SxA SxB
0 Off On 1 On Off
Table 8. ADG1436 LFCSP Truth Table EN INx SxA SxB
0 X Off Off 1 0 Off On 1 1 On Off Rev. B | Page 8 of 16 Document Outline Features Applications Functional Block Diagrams General Description Product Highlights Revision History Specifications 15 V Dual Supply 12 V Single Supply 5 V Dual Supply Continuous Current per Channel Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Truth Table For Switches Typical Performance Characteristics Terminology Test Circuits Outline Dimensions Ordering Guide
