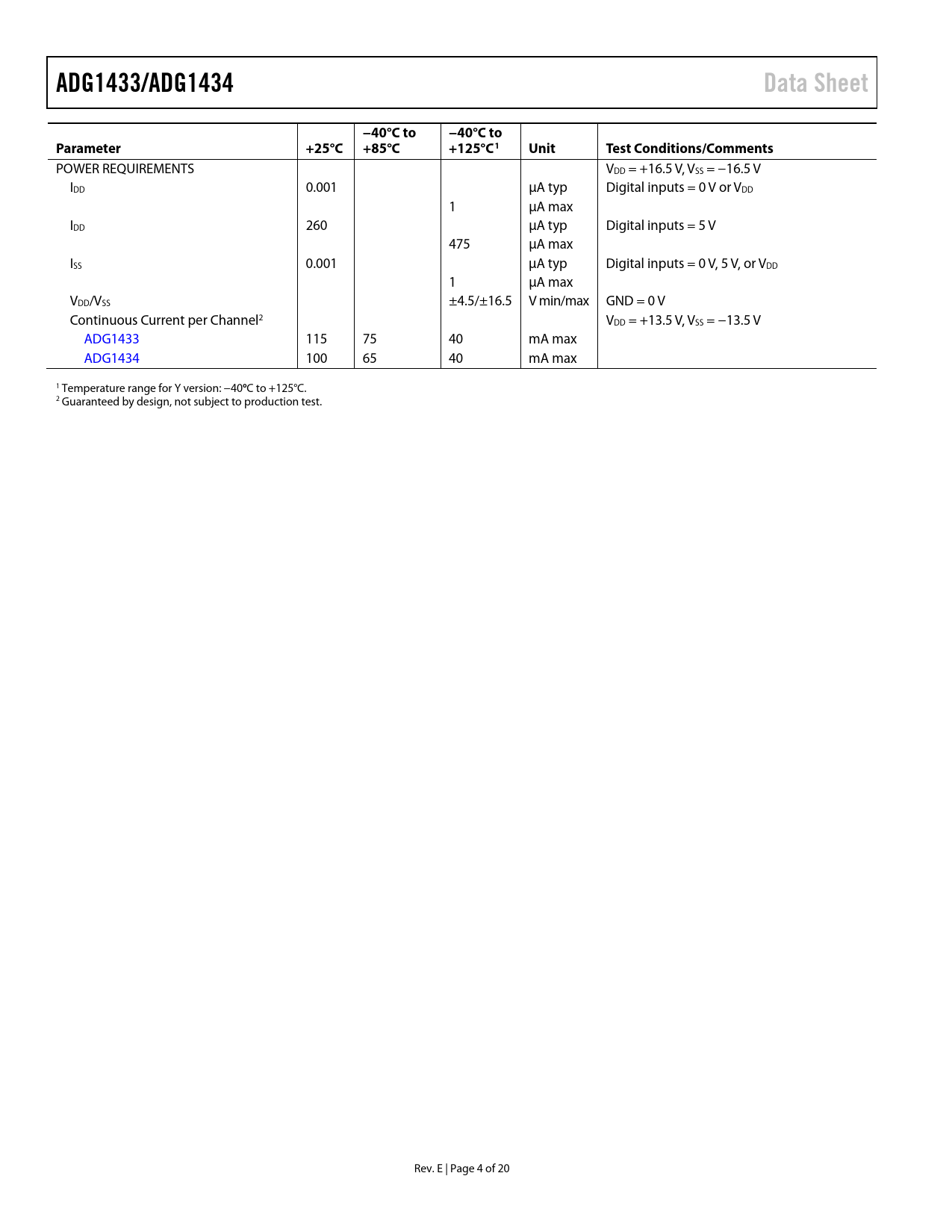

ADG1433/ADG1434Data Sheet−40°C to−40°C toParameter+25°C+85°C+125°C1UnitTest Conditions/Comments POWER REQUIREMENTS VDD = +16.5 V, VSS = −16.5 V IDD 0.001 µA typ Digital inputs = 0 V or VDD 1 µA max IDD 260 µA typ Digital inputs = 5 V 475 µA max ISS 0.001 µA typ Digital inputs = 0 V, 5 V, or VDD 1 µA max VDD/VSS ±4.5/±16.5 V min/max GND = 0 V Continuous Current per Channel2 VDD = +13.5 V, VSS = −13.5 V ADG1433 115 75 40 mA max ADG1434 100 65 40 mA max 1 Temperature range for Y version: −40 ° C to +125°C. 2 Guaranteed by design, not subject to production test. Rev. E | Page 4 of 20 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAMS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY 12 V SINGLE SUPPLY ±5 V DUAL SUPPLY ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
