Datasheet ADG508F, ADG509F (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | 8-Channel/4-Channel Fault-Protected Analog Multiplexers |
| Pages / Page | 20 / 7 — ADG508F/ADG509F. A0 1. 16 A1. EN 2. 15 GND. VSS 3. 14 V. ADG509F. S1A 4. … |
| Revision | F |
| File Format / Size | PDF / 289 Kb |
| Document Language | English |
ADG508F/ADG509F. A0 1. 16 A1. EN 2. 15 GND. VSS 3. 14 V. ADG509F. S1A 4. TOP VIEW. 13 S1B. S2A. (Not to Scale). 12 S2B. S3A 6. 11 S3B. S4A 7. 10 S4B. 9 DB
Model Line for this Datasheet
Text Version of Document
ADG508F/ADG509F A0 1 16 A1 EN 2 15 GND VSS 3 14 V ADG509F DD S1A 4 TOP VIEW 13 S1B S2A (Not to Scale) 5 12 S2B S3A 6 11 S3B S4A 7 10 S4B
5 00
DA
5-
8 9 DB

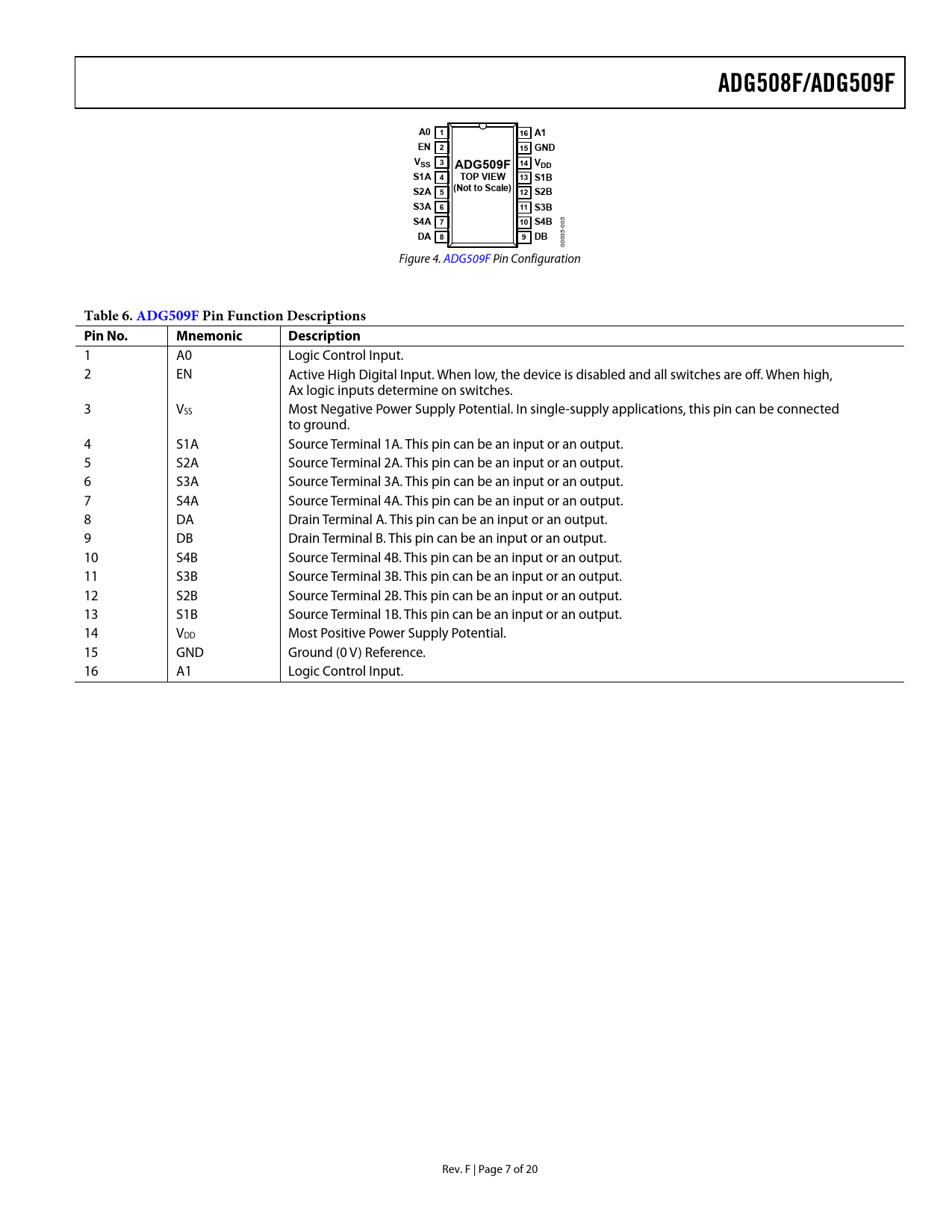

03 00 Figure 4. ADG509F Pin Configuration
Table 6. ADG509F Pin Function Descriptions Pin No. Mnemonic Description
1 A0 Logic Control Input. 2 EN Active High Digital Input. When low, the device is disabled and all switches are off. When high, Ax logic inputs determine on switches. 3 VSS Most Negative Power Supply Potential. In single-supply applications, this pin can be connected to ground. 4 S1A Source Terminal 1A. This pin can be an input or an output. 5 S2A Source Terminal 2A. This pin can be an input or an output. 6 S3A Source Terminal 3A. This pin can be an input or an output. 7 S4A Source Terminal 4A. This pin can be an input or an output. 8 DA Drain Terminal A. This pin can be an input or an output. 9 DB Drain Terminal B. This pin can be an input or an output. 10 S4B Source Terminal 4B. This pin can be an input or an output. 11 S3B Source Terminal 3B. This pin can be an input or an output. 12 S2B Source Terminal 2B. This pin can be an input or an output. 13 S1B Source Terminal 1B. This pin can be an input or an output. 14 VDD Most Positive Power Supply Potential. 15 GND Ground (0 V) Reference. 16 A1 Logic Control Input. Rev. F | Page 7 of 20 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAMS PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY TRUTH TABLES ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
