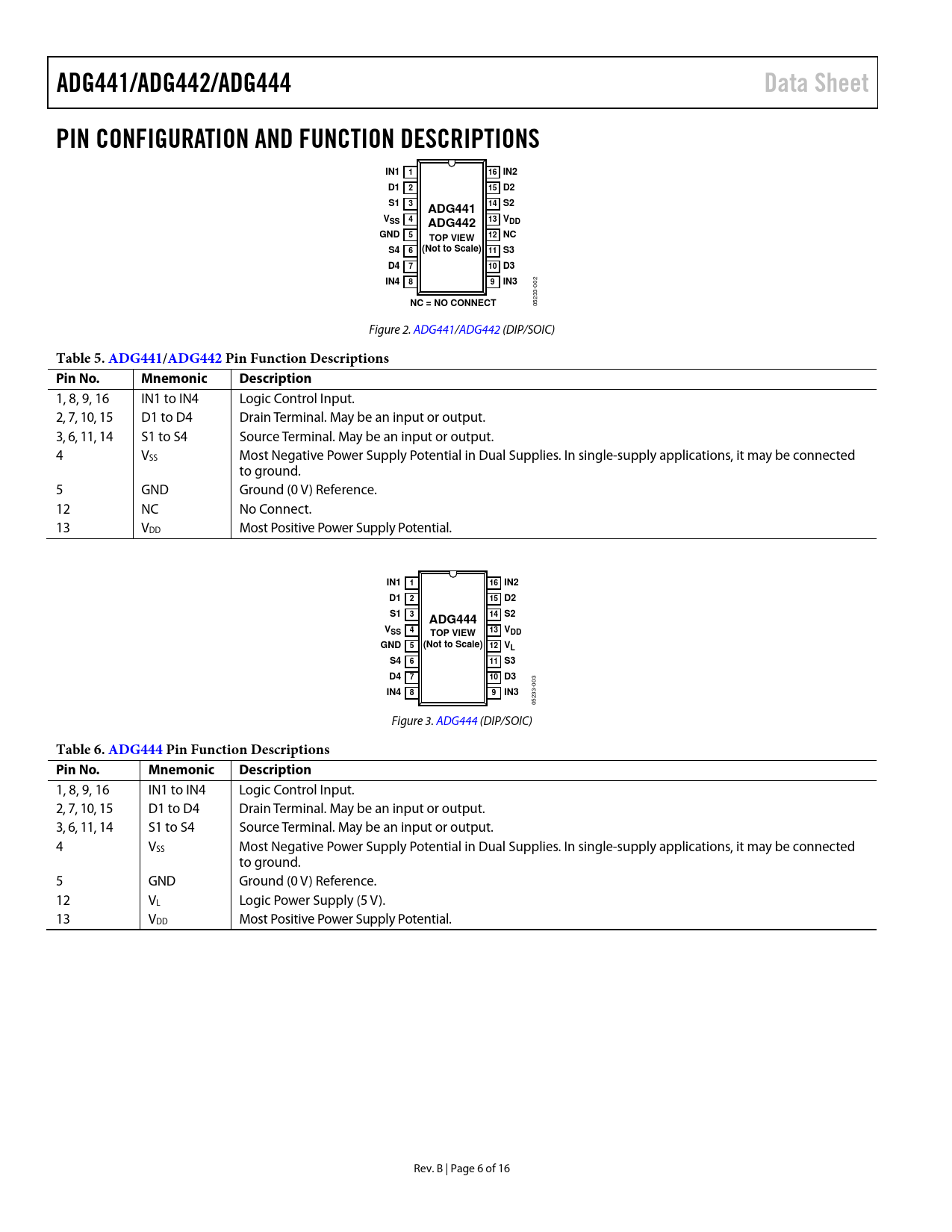

ADG441/ADG442/ADG444. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. IN1. 16 IN2. 15 D2. 14 S2. ADG441. VSS 4. 13 VDD. ADG442. GND
Model Line for this Datasheet
Text Version of Document
ADG441/ADG442/ADG444 Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTIONS IN1 1 16 IN2 D1 2 15 D2 S1 3 14 S2 ADG441 VSS 4 13 VDD ADG442 GND 5 12 NC TOP VIEW S4 6 (Not to Scale) 11 S3 D4 7 10 D3 IN4 8 9 IN3 NC = NO CONNECT
05233-002 Figure 2. ADG441/ADG442 (DIP/SOIC)
Table 5. ADG441/ ADG442 Pi n Function Descriptions Pin No. Mnemonic Description
1, 8, 9, 16 IN1 to IN4 Logic Control Input. 2, 7, 10, 15 D1 to D4 Drain Terminal. May be an input or output. 3, 6, 11, 14 S1 to S4 Source Terminal. May be an input or output. 4 VSS Most Negative Power Supply Potential in Dual Supplies. In single-supply applications, it may be connected to ground. 5 GND Ground (0 V) Reference. 12 NC No Connect. 13 VDD Most Positive Power Supply Potential.
IN1 1 16 IN2 D1 2 15 D2 S1 3 14 S2 ADG444 VSS 4 13 VDD TOP VIEW GND 5 (Not to Scale) 12 VL S4 6 11 S3 D4 7 10 D3 IN4 8 9 IN3
05233-003 Figure 3. ADG444 (DIP/SOIC)
Table 6. ADG444 Pin Function Descriptions Pin No. Mnemonic Description
1, 8, 9, 16 IN1 to IN4 Logic Control Input. 2, 7, 10, 15 D1 to D4 Drain Terminal. May be an input or output. 3, 6, 11, 14 S1 to S4 Source Terminal. May be an input or output. 4 VSS Most Negative Power Supply Potential in Dual Supplies. In single-supply applications, it may be connected to ground. 5 GND Ground (0 V) Reference. 12 VL Logic Power Supply (5 V). 13 VDD Most Positive Power Supply Potential. Rev. B | Page 6 of 16 Document Outline Features Applications General Description Functional Block Diagram Product Highlights Table of Contents Revision History Specifications Dual Supply Single Supply Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Test Circuits Terminology Trench Isolation Outline Dimensions Ordering Guide
