ADG201A-EP. OUTLINE DIMENSIONS. 10.00 (0.3937). 9.80 (0.3858). 4.00 (0.1575). 6.20 (0.2441). 3.80 (0.1496). 5.80 (0.2283)
Model Line for this Datasheet
Text Version of Document
link to page 7

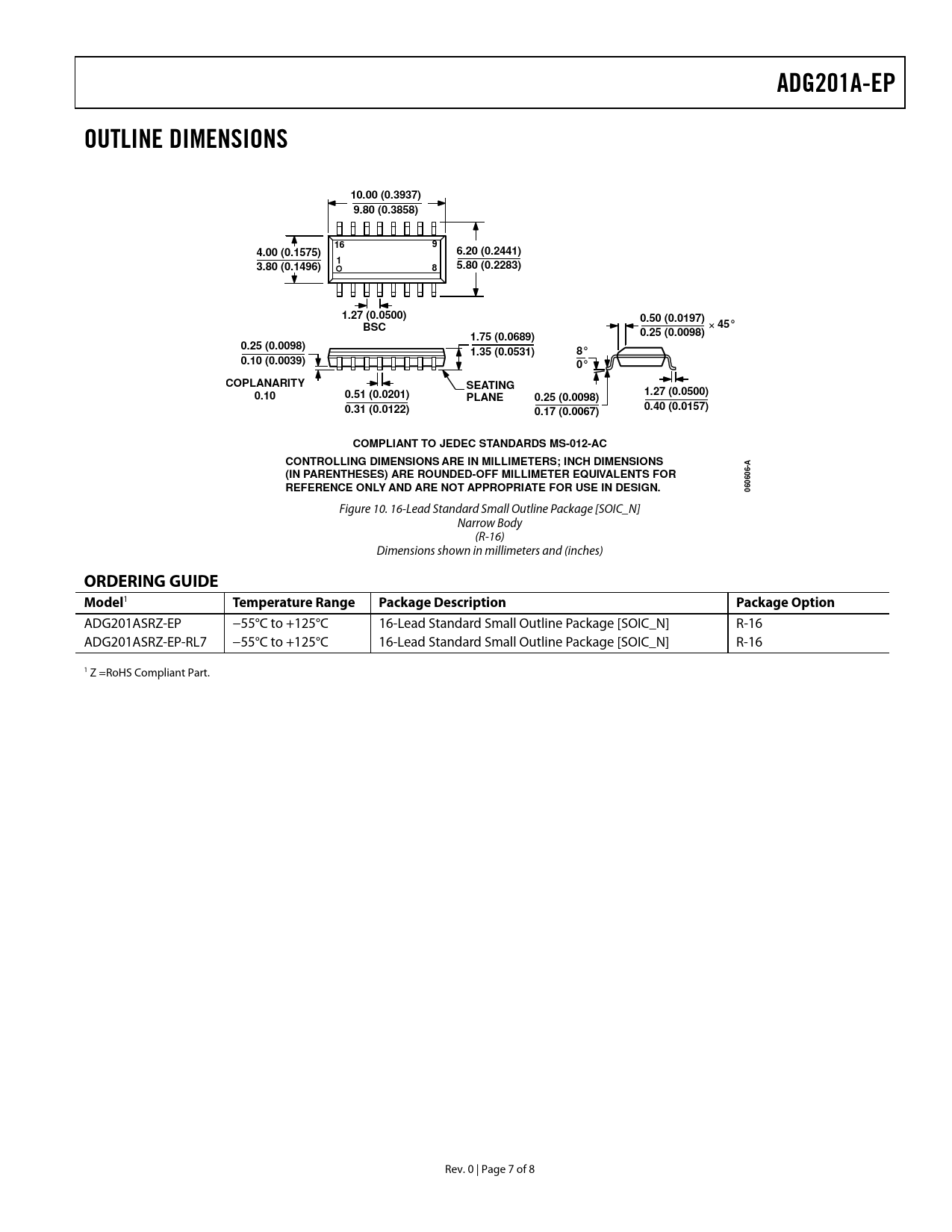

ADG201A-EP OUTLINE DIMENSIONS 10.00 (0.3937) 9.80 (0.3858) 16 9 4.00 (0.1575) 6.20 (0.2441) 1 3.80 (0.1496) 8 5.80 (0.2283) 1.27 (0.0500) 0.50 (0.0197) BSC 45° 1.75 (0.0689) 0.25 (0.0098) 0.25 (0.0098) 1.35 (0.0531) 8° 0.10 (0.0039) 0° COPLANARITY SEATING 0.10 0.51 (0.0201) 1.27 (0.0500) PLANE 0.25 (0.0098) 0.31 (0.0122) 0.40 (0.0157) 0.17 (0.0067) COMPLIANT TO JEDEC STANDARDS MS-012-AC CONTROLLING DIMENSIONS ARE IN MILLIMETERS; INCH DIMENSIONS A (IN PARENTHESES) ARE ROUNDED-OFF MILLIMETER EQUIVALENTS FOR REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN. 060606-
