Datasheet ADG852 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | 0.8 Ω CMOS, 1.8 V to 5.5 V, SPDT/2:1 Mux Mini LFCSP |
| Pages / Page | 16 / 5 — Data Sheet. ADG852. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter. Rating. … |
| Revision | B |
| File Format / Size | PDF / 205 Kb |
| Document Language | English |
Data Sheet. ADG852. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
link to page 5

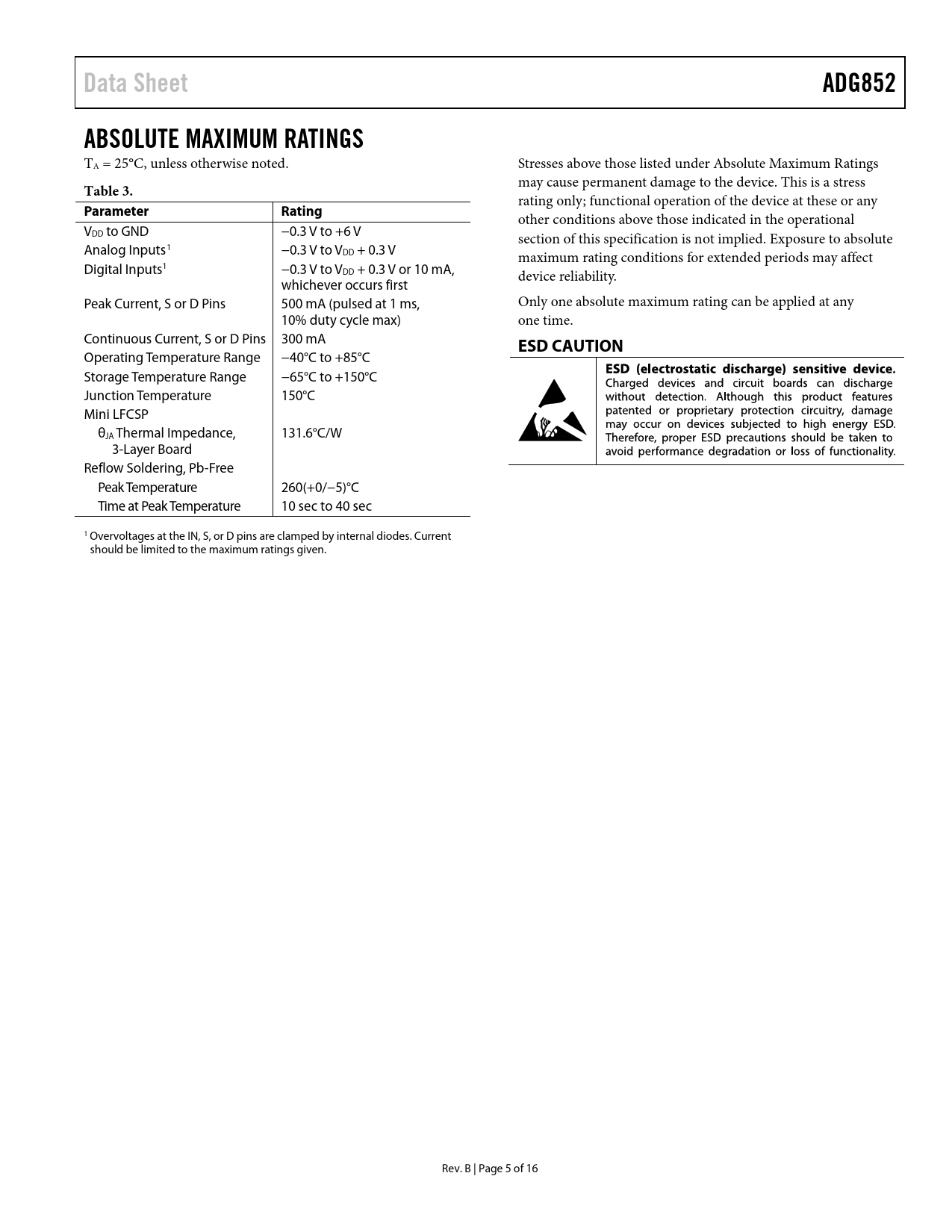

Data Sheet ADG852 ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses above those listed under Absolute Maximum Ratings
Table 3.
may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any
Parameter Rating
other conditions above those indicated in the operational VDD to GND −0.3 V to +6 V section of this specification is not implied. Exposure to absolute Analog Inputs1 −0.3 V to VDD + 0.3 V maximum rating conditions for extended periods may affect Digital Inputs1 −0.3 V to VDD + 0.3 V or 10 mA, device reliability. whichever occurs first Peak Current, S or D Pins 500 mA (pulsed at 1 ms, Only one absolute maximum rating can be applied at any 10% duty cycle max) one time. Continuous Current, S or D Pins 300 mA
ESD CAUTION
Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Junction Temperature 150°C Mini LFCSP θJA Thermal Impedance, 131.6°C/W 3-Layer Board Reflow Soldering, Pb-Free Peak Temperature 260(+0/−5)°C Time at Peak Temperature 10 sec to 40 sec 1 Overvoltages at the IN, S, or D pins are clamped by internal diodes. Current should be limited to the maximum ratings given. Rev. B | Page 5 of 16 Document Outline Features Applications Functional Block Diagram General Description Product Highlights Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Description Typical Performance Characteristics Test Circuits Terminology Outline Dimensions Ordering Guide
