Datasheet ADG852 (Analog Devices) - 6

ManufacturerAnalog Devices
Description0.8 Ω CMOS, 1.8 V to 5.5 V, SPDT/2:1 Mux Mini LFCSP
Pages / Page16 / 6 — ADG852. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTION. D 2. 8 …
RevisionB
File Format / SizePDF / 205 Kb
Document LanguageEnglish

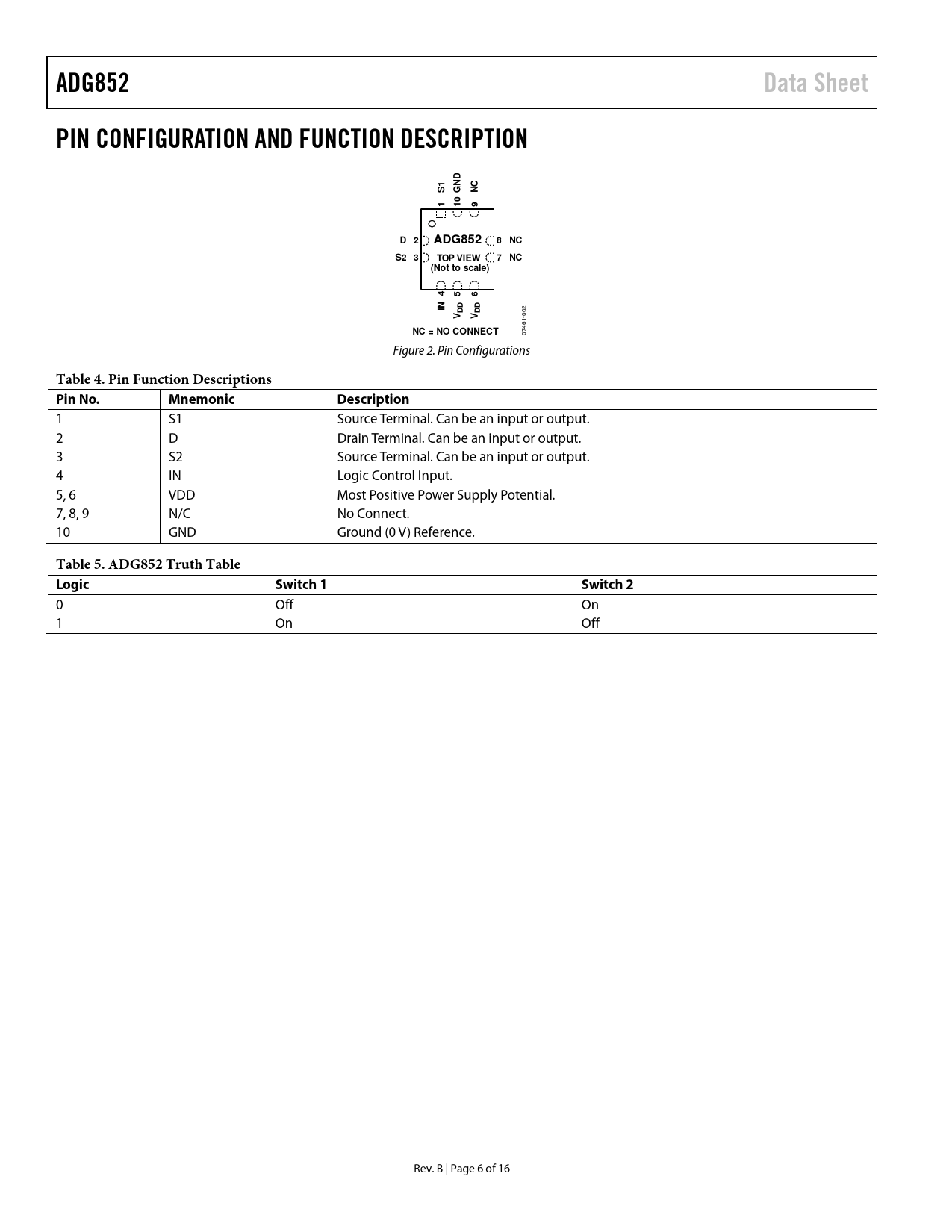

ADG852. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTION. D 2. 8 NC. S2 3. TOP VIEW. 7 NC. (Not to scale). NC = NO CONNECT

ADG852 Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTION D 2 8 NC S2 3 TOP VIEW 7 NC (Not to scale) NC = NO CONNECT

Model Line for this Datasheet

Text Version of Document

ADG852 Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTION ND S1 G NC 1 10 9 D 2 ADG852 8 NC S2 3 TOP VIEW 7 NC (Not to scale) 4 5 6 IN DD DD V V
002
NC = NO CONNECT
07461- Figure 2. Pin Configurations
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1 S1 Source Terminal. Can be an input or output. 2 D Drain Terminal. Can be an input or output. 3 S2 Source Terminal. Can be an input or output. 4 IN Logic Control Input. 5, 6 VDD Most Positive Power Supply Potential. 7, 8, 9 N/C No Connect. 10 GND Ground (0 V) Reference.
Table 5. ADG852 Truth Table Logic Switch 1 Switch 2
0 Off On 1 On Off Rev. B | Page 6 of 16 Document Outline Features Applications Functional Block Diagram General Description Product Highlights Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Description Typical Performance Characteristics Test Circuits Terminology Outline Dimensions Ordering Guide
