Datasheet TL431, TL431A (Fairchild) - 8
| Manufacturer | Fairchild |
| Description | Programmable Shunt Regulator |
| Pages / Page | 10 / 8 — TL431/TL431A. Mechanical Dimensions. Package. 8-DIP |
| File Format / Size | PDF / 100 Kb |
| Document Language | English |
TL431/TL431A. Mechanical Dimensions. Package. 8-DIP
Model Line for this Datasheet
Text Version of Document
TL431/TL431A Mechanical Dimensions
(Continued)
Package 8-DIP

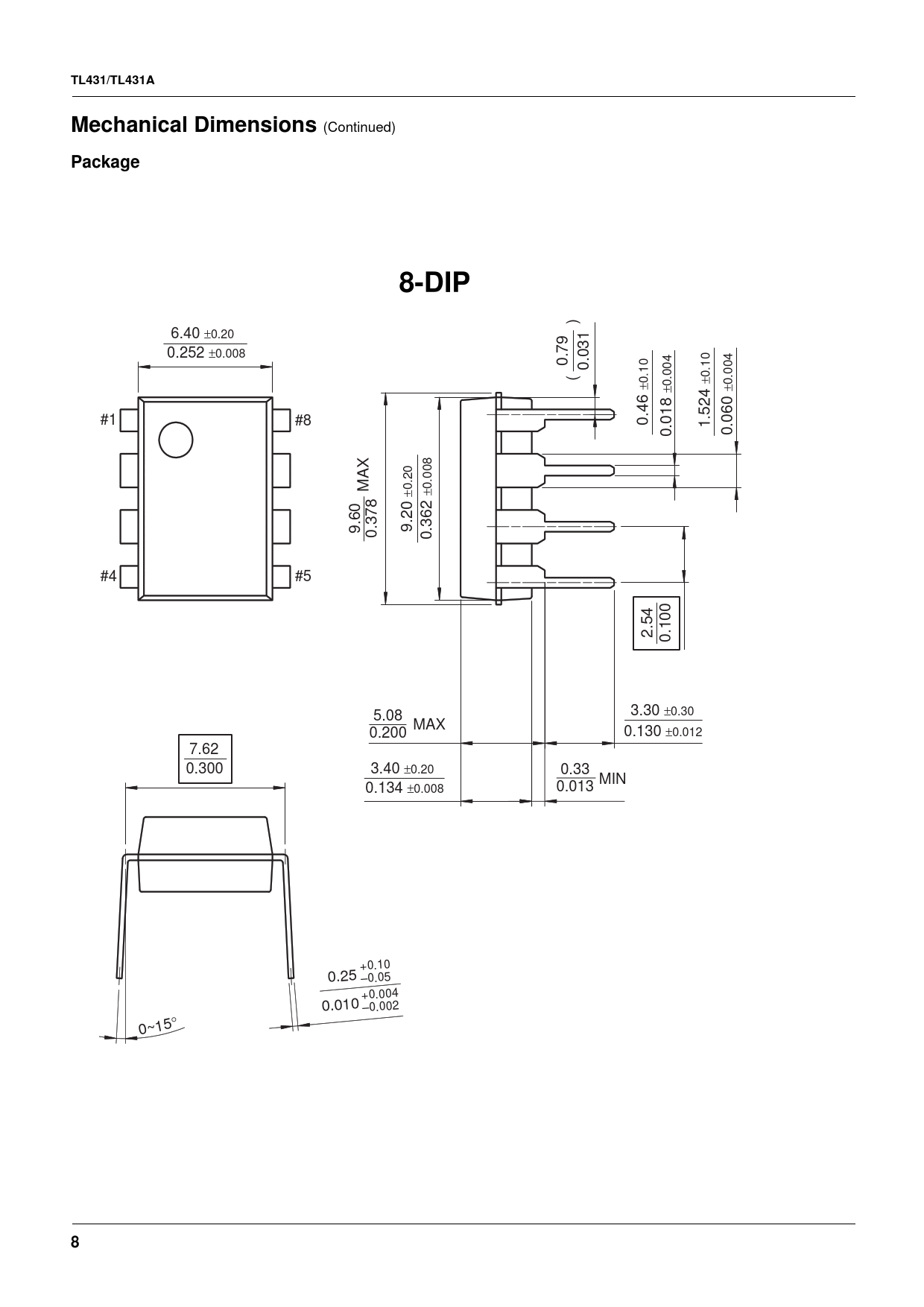

) 6.40 ±0.20 0.252 ±0.008 0.79 0.031 ( ±0.10 ±0.10 ±0.004 ±0.004 #1 #8 0.46 1.524 0.018 0.060 MAX ±0.20 ±0.008 9.60 9.20 0.378 0.362 #4 #5 2.54 0.100 3.30 ±0.30 5.08 MAX 0.200 0.130 ±0.012 7.62 0.300 3.40 ±0.20 0.33 MIN 0.134 ±0.008 0.013 +0.10 0.25 –0.05 +0.004 0.010 –0.002 ° 0~15
