Datasheet BCV62 (Nexperia)
| Manufacturer | Nexperia |
| Description | PNP General-Purpose Double Transistors |
| Pages / Page | 14 / 1 — BCV62 PNP general-purpose double transistors. Rev. 4 — 26 July 2010. … |
| File Format / Size | PDF / 816 Kb |
| Document Language | English |

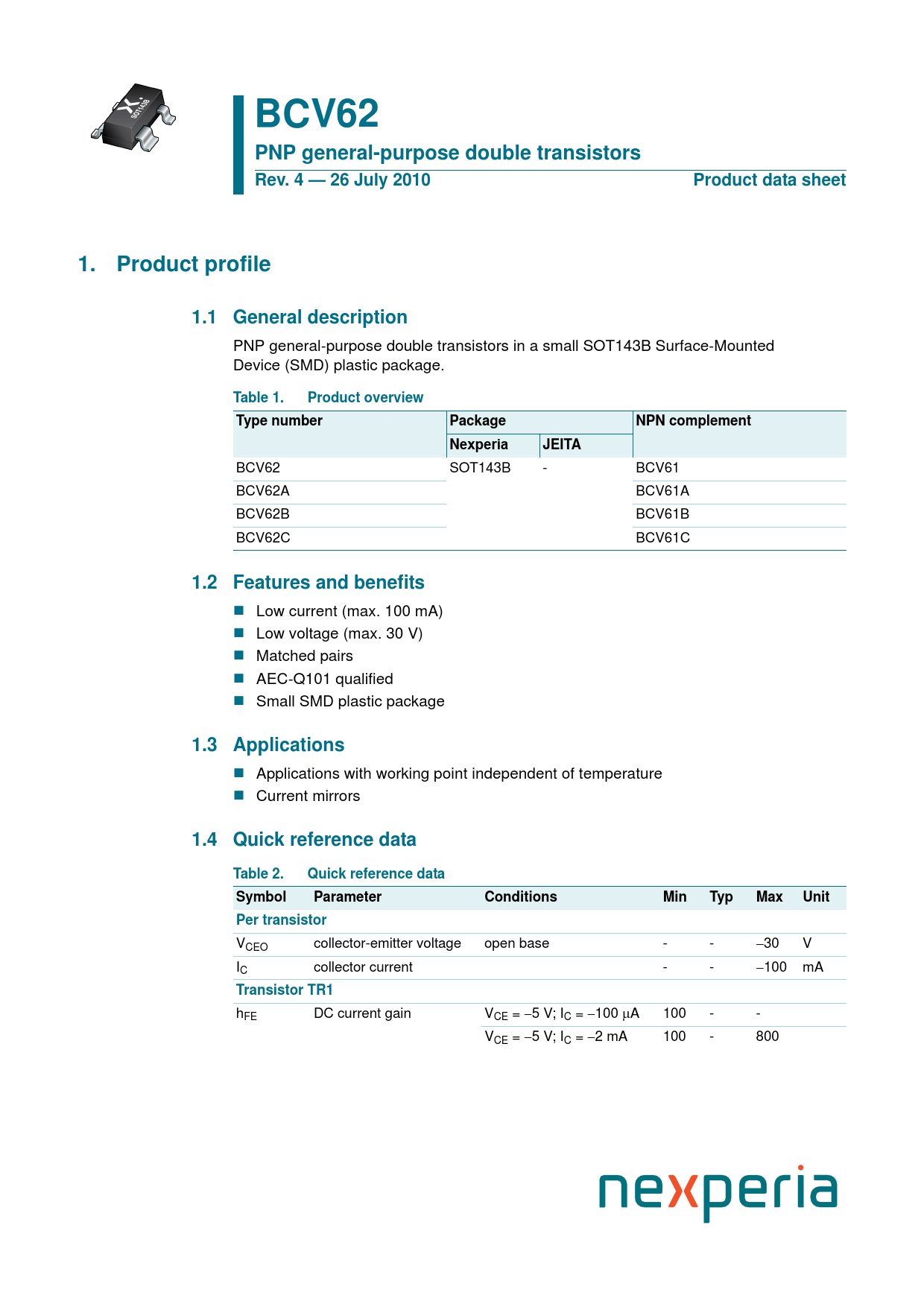

BCV62 PNP general-purpose double transistors. Rev. 4 — 26 July 2010. Product data sheet. Product. profile
Model Line for this Datasheet
Text Version of Document
BCV62 PNP general-purpose double transistors Rev. 4 — 26 July 2010 Product data sheet 1. Product profile 1.1 General description
PNP general-purpose double transistors in a small SOT143B Surface-Mounted Device (SMD) plastic package.
Table 1. Product overview Type number Package NPN complement Nexperia JEITA
BCV62 SOT143B - BCV61 BCV62A BCV61A BCV62B BCV61B BCV62C BCV61C
1.2 Features and benefits
Low current (max. 100 mA) Low voltage (max. 30 V) Matched pairs AEC-Q101 qualified Small SMD plastic package
1.3 Applications
Applications with working point independent of temperature Current mirrors
1.4 Quick reference data Table 2. Quick reference data Symbol Parameter Conditions Min Typ Max Unit Per transistor
VCEO collector-emitter voltage open base - - −30 V IC collector current - - −100 mA
Transistor TR1
hFE DC current gain VCE = −5 V; IC = −100 μA 100 - - VCE = −5 V; IC = −2 mA 100 - 800 Document Outline 1. Product profile 1.1 General description 1.2 Features and benefits 1.3 Applications 1.4 Quick reference data 2. Pinning information 3. Ordering information 4. Marking 5. Limiting values 6. Thermal characteristics 7. Characteristics 8. Test information 8.1 Quality information 9. Package outline 10. Packing information 11. Soldering 12. Revision history 13. Legal information 13.1 Data sheet status 13.2 Definitions 13.3 Disclaimers 13.4 Trademarks 14. Contact information 15. Contents
