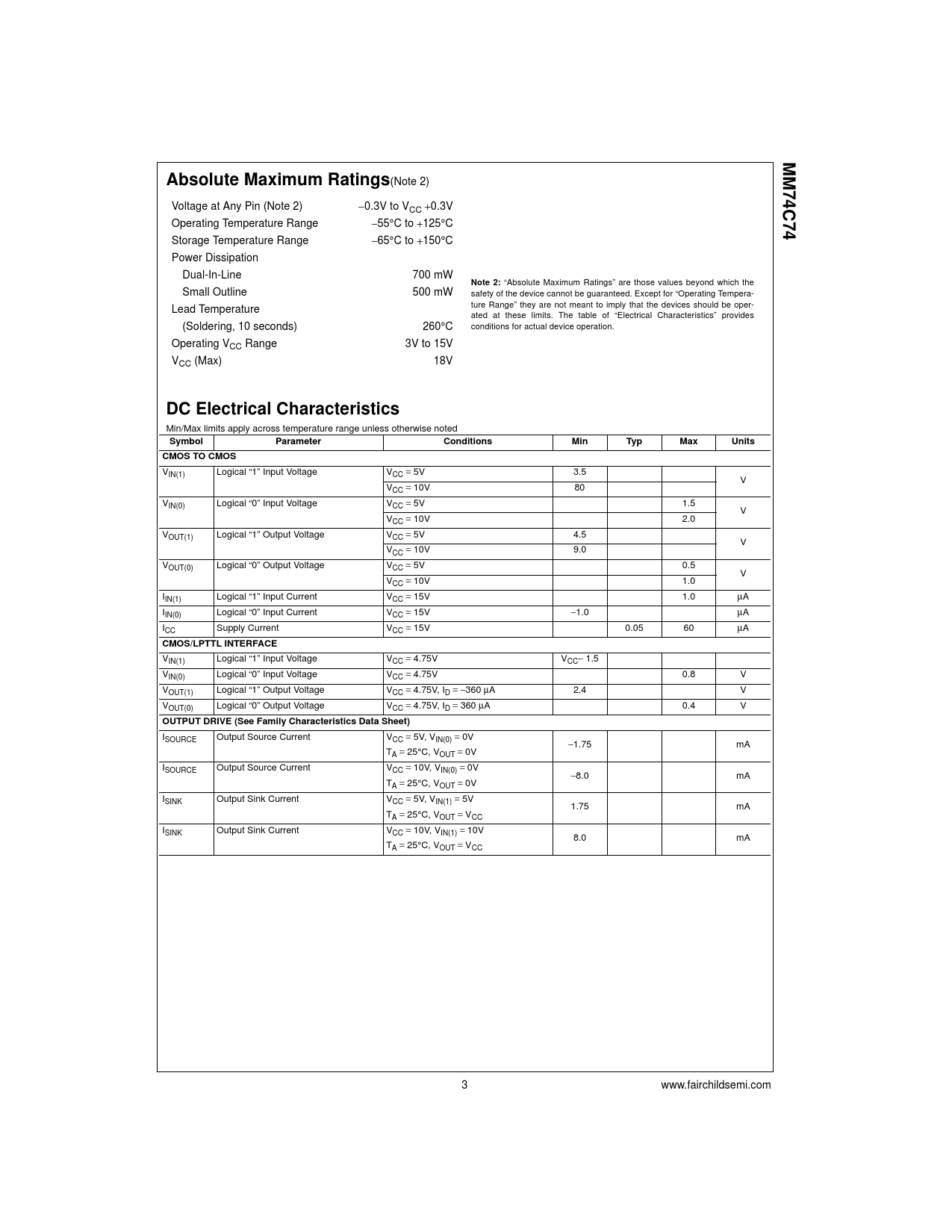

MM74C74 Absolute Maximum Ratings
(Note 2) Voltage at Any Pin (Note 2) −0.3V to VCC +0.3V Operating Temperature Range −55°C to +125°C Storage Temperature Range −65°C to +150°C Power Dissipation Dual-In-Line 700 mW
Note 2:
“Absolute Maximum Ratings” are those values beyond which the Small Outline 500 mW safety of the device cannot be guaranteed. Except for “Operating Tempera- ture Range” they are not meant to imply that the devices should be oper- Lead Temperature ated at these limits. The table of “Electrical Characteristics” provides (Soldering, 10 seconds) 260°C conditions for actual device operation. Operating VCC Range 3V to 15V VCC (Max) 18V
DC Electrical Characteristics
Min/Max limits apply across temperature range unless otherwise noted
Symbol Parameter Conditions Min Typ Max Units CMOS TO CMOS
VIN(1) Logical “1” Input Voltage VCC = 5V 3.5 V VCC = 10V 80 VIN(0) Logical “0” Input Voltage VCC = 5V 1.5 V VCC = 10V 2.0 VOUT(1) Logical “1” Output Voltage VCC = 5V 4.5 V VCC = 10V 9.0 VOUT(0) Logical “0” Output Voltage VCC = 5V 0.5 V VCC = 10V 1.0 IIN(1) Logical “1” Input Current VCC = 15V 1.0 µA IIN(0) Logical “0” Input Current VCC = 15V −1.0 µA ICC Supply Current VCC = 15V 0.05 60 µA
CMOS/LPTTL INTERFACE
V − IN(1) Logical “1” Input Voltage VCC = 4.75V VCC 1.5 VIN(0) Logical “0” Input Voltage VCC = 4.75V 0.8 V VOUT(1) Logical “1” Output Voltage VCC = 4.75V, ID = −360 µA 2.4 V VOUT(0) Logical “0” Output Voltage VCC = 4.75V, ID = 360 µA 0.4 V
OUTPUT DRIVE (See Family Characteristics Data Sheet)
ISOURCE Output Source Current VCC = 5V, VIN(0) = 0V −1.75 mA TA = 25°C, VOUT = 0V ISOURCE Output Source Current VCC = 10V, VIN(0) = 0V −8.0 mA TA = 25°C, VOUT = 0V ISINK Output Sink Current VCC = 5V, VIN(1) = 5V 1.75 mA TA = 25°C, VOUT = VCC ISINK Output Sink Current VCC = 10V, VIN(1) = 10V 8.0 mA TA = 25°C, VOUT = VCC 3 www.fairchildsemi.com
